Does your Wi-Fi have dead zones or is it too slow?
Do you know the problem? Your Wi-Fi signal is weak, constantly drops, or simply doesn't reach all corners of your office or home. Especially in larger rooms or with many obstacles like walls and furniture, signal quality can suffer significantly. Conventional Wi-Fi routers quickly reach their limits here, leaving you with frustration and interrupted connections.

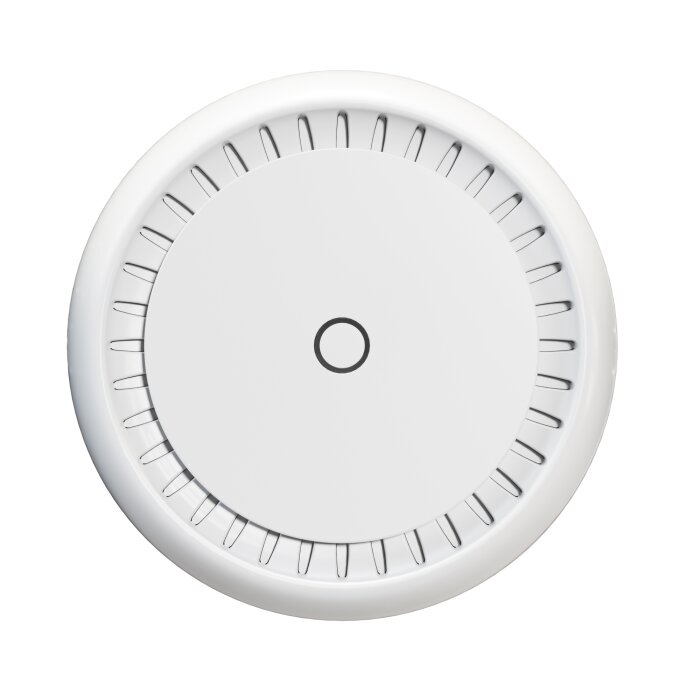

The Solution: The MikroTik cAP XL ac – Wi-Fi Power from the Ceiling!
The MikroTik cAP XL ac is the answer to your Wi-Fi problems. This powerful access point was specifically designed for ceiling mounting to ensure optimal and uniform signal distribution over 360 degrees. With its dual-band technology and enhanced high-gain antennas, it delivers impressive range and speed, making dead zones a thing of the past.
Technical Details That Impress
Under the elegant hood of the MikroTik cAP XL ac lies a Quad-Core IPQ-4018 processor with a clock frequency of 716 MHz and 128 MB RAM, ensuring smooth performance. It supports WLAN standards 802.11b/g/n on 2.4 GHz with up to 300 Mbit/s and 802.11a/n/ac on 5 GHz with up to 867 Mbit/s, corresponding to a combined AC1200 speed. The two Gigabit Ethernet ports allow for flexible network connections, with the first port offering 802.3af/at PoE input and the second port providing Passive PoE output to directly power other devices.
Why Ceiling Mounting is the Key to Success
Ceiling mounting is not only aesthetically pleasing, as the device remains inconspicuous, but also functionally superior. It minimizes signal absorption by furniture, walls, or other obstacles and ensures free propagation of the Wi-Fi signal. This way, you benefit from a stable and fast connection in every corner of your room, without having to compromise on aesthetics. The MikroTik cAP XL ac is the ideal choice for offices, hotels, schools, or large living areas that require a reliable and powerful Wi-Fi infrastructure.
Technical Specifications
| Product Code: | RBcAPGi-5acD2nD-XL |
| Architecture: | ARM 32bit |
| CPU: | IPQ-4018 |
| CPU Cores: | 4 |
| CPU Nominal Frequency: | 716 MHz |
| RAM: | 128 MB |
| Storage Size: | 16 MB |
| Storage Type: | FLASH |
| Operating System: | RouterOS (License Level 4) |
| WLAN Standards 2.4 GHz: | 802.11b/g/n (Wi-Fi 4) |
| WLAN Standards 5 GHz: | 802.11a/n/ac (Wi-Fi 5) |
| Max. Data Rate 2.4 GHz: | 300 Mbit/s |
| Max. Data Rate 5 GHz: | 867 Mbit/s |
| Antenna Gain 2.4 GHz: | 6 dBi |
| Antenna Gain 5 GHz: | 5.5 dBi |
| Ethernet Ports: | 2x 10/100/1000 Gigabit Ethernet |
| PoE-In: | 802.3af/at (on Ether1) |
| PoE-Out: | Passive PoE up to 57V (on Ether2) |
| Max. Power Consumption: | 24 W |
| Dimensions (Ø x H): | 191 x 42 mm |
| Operating Temperature: | -40°C to 70°C |
Scope of Delivery
| 1 x MikroTik cAP XL ac (RBcAPGi-5acD2nD-XL) |
| 1 x 24V 1.2A Power Adapter |
| 1 x Gigabit PoE Injector |
| 1 x K-81 Mounting Kit |
| 1 x cAP XL ac Ceiling Mount |
Häufig gestellte Fragen (FAQ)
What is the main advantage of the MikroTik cAP XL ac over other Access Points?
The main advantage of the MikroTik cAP XL ac lies in its optimized ceiling mounting and specially designed high-gain antennas with an integrated reflector. This enables up to 100% greater coverage and uniform 360-degree signal distribution, effectively eliminating dead zones.
Does the cAP XL ac support Power over Ethernet (PoE)?
Yes, the MikroTik cAP XL ac is extremely flexible regarding power supply. It supports 802.3af/at PoE input on the first Gigabit Ethernet port and additionally offers Passive PoE output (up to 57V) on the second port to power other PoE-enabled devices.
What Wi-Fi speeds can I expect with this Access Point?
The cAP XL ac is a dual-band Access Point that achieves speeds of up to 300 Mbit/s (802.11b/g/n) on 2.4 GHz and up to 867 Mbit/s (802.11a/n/ac) on 5 GHz. The combined speed is AC1200, ensuring fast and reliable connections.
Is the MikroTik cAP XL ac suitable for large offices or hotels?
Absolutely! Thanks to its extended range, 360-degree coverage, and ability to minimize signal absorption through ceiling mounting, the MikroTik cAP XL ac is ideal for large offices, hotels, schools, and other environments with high user traffic and complex spatial conditions.
What operating system does the MikroTik cAP XL ac use and what possibilities does it offer?
The MikroTik cAP XL ac runs on MikroTik's powerful RouterOS (License Level 4). This operating system offers extensive configuration options for network management, security, and advanced features, such as integration into a CAPsMAN system for central management of multiple Access Points.
