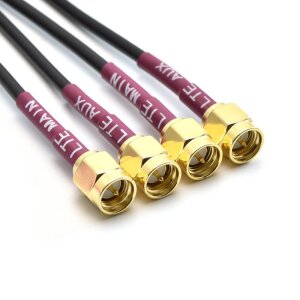

The 4G omnidirectional antenna has a gain of 3.5dBi and covers the 4G frequency bands 698-960 MHz and 1710-2690 MHz (4G800, 4G1800, 4G2600). This 4G antenna has a unique feature. Unlike a traditional antenna that contains two antenna modules in its housing, this one includes four. This makes the 4G omnidirectional antenna Multi-WAN capable, allowing it to establish and manage two parallel 4G connections. The antenna is equipped with four 3m long cables (RG174) with SMA connectors. Of course, the antenna can also be used for a single 4G connection.
Housing
The housing of the 4G antenna is made of robust, weatherproof (IP67), and durable plastic. This allows the 4G omnidirectional antenna to be used in extreme temperatures ranging from -40° to +85°. When mounted on a vehicle, its shape ensures the right aerodynamics while driving. On the underside of the 4G antenna, there is a 2.27cm long metal thread with a locknut.
4G Router
The 4G antenna can be used with any 4G router that has a standard SMA antenna connection. Thanks to its omnidirectional characteristics, precise alignment is not necessary. The antenna offers a gain of up to 3.5dBi, increasing the range, signal strength, and data transmission rate of your 4G connection. Especially when used on vehicles or equipment cabinets, the external installation of the 4G antenna significantly enhances the 4G connection. With four integrated 4G antenna modules, this antenna can even be used with two 4G routers simultaneously.
Areas of application
- Private vehicles, campers, caravans, motorhomes
- Public vehicles, trucks, tractors, industrial vehicles
- Installations on ceilings, equipment cabinets, or vending machines
- M2M (Machine-to-Machine) and other IoT (Internet of Things) applications
Technical Data:
| Manufacturer / Model: | ZHEJIANG / JCG605LM4 |
| Antenna type: | Multi-WAN 4G omnidirectional antenna |
| Gain: | 3.5dBi |
| Polarization: | Linear |
| Impedance: | 50 Ohm |
| Frequency range: | 698 - 960MHz / 1710 - 2690MHz |
| VSWR: | max. 3.0 |
| Signal opening angle: | 360° Horizontal |
| Cable / Connector: | 4 x 3m cable / SMA connector |
| Application area: | Indoor and outdoor use |
| Housing: | ABS plastic, IP67 |
| Vibration: | 10 to 55Hz with 1.5mm amplitude / 2 hours |
| Operating temperature: | -40° to 85° C |
| Humidity range: | up to 95% |
| Dimensions: | 18.7 x 18 x 8.8 cm |
| Mounting: | Locknut on underside |
| Color: | Black |
Scope of delivery:
| 1 x 4G 3.5dBi vehicle omnidirectional antenna, 3m cable, black |
