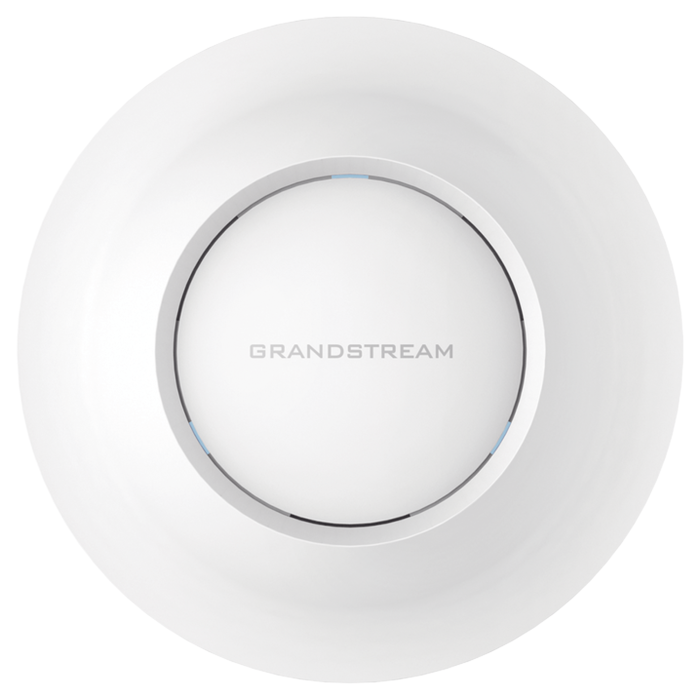

Grandstream GWN7664 | WiFi 6 Access Point, 3.55 Gbps, PoE+

Are you looking for a WLAN Access Point that takes your Network to a whole new level? Then the Grandstream GWN7664 is exactly what you need! This powerful, business-grade WiFi 6 Access Point is the ideal solution for medium to large enterprises, multi-story buildings, residential complexes, and commercial locations requiring outstanding WLAN performance. With its advanced Dual-Band 4x4:4 MU-MIMO with DL/UL OFDMA technology, it delivers an impressive aggregated wireless throughput of up to 3.55 Gbps and a wired throughput of 3.5 Gbps, effortlessly handling even the most demanding applications.

The Grandstream GWN7664 offers an impressive range of up to 175 meters and supports over 750 concurrent WiFi clients, making it perfect for high-density user environments. Thanks to integrated PoE/PoE+ support, installation is incredibly simple and flexible. You also benefit from an embedded controller for up to 50 local GWN Access Points, as well as flexible management options via GWN.Cloud or GWN Manager. Experience maximum security through anti-hacking secure boot and digital signatures that protect your data.


Highlights

  • Ultrafast WiFi 6 Performance: Enjoy aggregated wireless speeds of up to 3.55 Gbps for seamless streaming and fast downloads.
  • High Client Density: Supports over 750 concurrent WiFi clients, ideal for busy environments like offices or educational institutions.
  • Extended Coverage: Offers an impressive range of up to 175 meters to reliably cover large areas.
  • Flexible Power & Connectivity: With PoE/PoE+ and dual Ethernet ports (1G and 2.5G) for easy installation and high bandwidth.
  • Comprehensive Management & Security: Integrated controller, GWN.Cloud, and robust security features protect your Network.

Have questions about the Grandstream GWN7664? Then just ask us!


187,49 €
incl. 19% VAT , plus shipping costs
Item out of stock

Is Your Current Wi-Fi Holding You Back?

Do you know the feeling when your Network buckles under the pressure of many users or bandwidth-intensive applications? Outdated Wi-Fi standards, limited client capacities, and insufficient security can significantly impair your business's productivity. Slow connections, constant disconnections, and inadequate coverage are not only frustrating but also cost valuable time and nerves. It's time for a future-proof solution that grows with your demands.


The Solution: Grandstream GWN7664 – Wi-Fi 6 Power for Your Business!

With the Grandstream GWN7664, you're investing in the next generation of Wi-Fi technology. This state-of-the-art WiFi 6 Access Point is specifically designed to meet the challenges of modern networks. It offers you not only lightning-fast speeds and enormous capacity for a multitude of devices but also a robust and secure infrastructure that protects your business from threats. Experience a new dimension of connectivity that will exceed your expectations.


Maximum Performance and Smart Features in Detail

The Grandstream GWN7664 shines with its Dual-Band 4x4:4 MU-MIMO with DL/UL OFDMA Technology, enabling efficient communication with multiple devices simultaneously and thus reducing bottlenecks. The aggregated Wi-Fi rates of 3.55 Gbit/s and the dual Network ports (1G and 2.5G) with PoE/PoE+ support ensure powerful and flexible Network integration. With up to 32 SSIDs (16 per band), you can optimally segment your network and adapt it for various user groups, including a Captive Portal for guest access. The advanced QoS (Quality of Service) ensures the prioritization of critical applications such as VoIP or video conferencing.


Easy Management and Maximum Security

Managing the Grandstream GWN7664 is incredibly easy: Use the embedded controller for up to 50 local Access Points or scale your network infinitely with the free cloud platform GWN.Cloud. For on-premise solutions, the GWN Manager is available, capable of managing up to 3,000 Access Points. Your network security is ensured by features such as Anti-Hacking Secure Boot, digital signatures, and unique security certificates per device, protecting your system from unauthorized access. This way, you can fully concentrate on your core business while your Wi-Fi runs stably and securely.



Technical Specifications

Wi-Fi Standards:IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
Antennas:8 internal Antennas (4x 2.4GHz with 3dBi, 4x 5GHz with 4dBi)
Aggregated Wi-Fi Throughput:3.55 Gbit/s
Aggregated Wired Throughput:3.5 Gbit/s
Frequency Bands:2.4 GHz and 5 GHz
MIMO:4x4:4 (2.4 GHz), 4x4:4 (5 GHz)
Range:Up to 175 meters
Concurrent Clients:750+
SSIDs:32 total (16 per band)
Network Interfaces:1x 1G RJ45, 1x 2.5G RJ45 (PoE/PoE+)
Additional Ports:1x Reset pinhole, 1x Kensington Lock
Management:Integrated Controller (up to 50 APs), GWN.Cloud, GWN Manager
QoS:802.11e/WMM, VLAN, TOS
Security:WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, Secure Boot, digital signatures
Mounting:Indoor, Wall or Ceiling Mount (mounting kit included)
LEDs:1x tri-color LED for status indication
Power Supply:PoE 802.3af/at
Max. Power Consumption:17W
Operating Temperature:0°C to 50°C
Humidity:10% to 90% non-condensing
Dimensions (WxDxH):205.3mm x 205.3mm x 45.9mm
Weight:0.714 kg


Scope of Delivery

1 x Grandstream GWN7664 802.11ax Wi-Fi Access Point
1 x Mounting Kit (for wall or ceiling mounting)
1 x Quick Start Guide



Häufig gestellte Fragen (FAQ)


What is WiFi 6 (802.11ax) and what benefits does it offer with the Grandstream GWN7664?

WiFi 6 (802.11ax) is the latest Wi-Fi standard integrated into the Grandstream GWN7664. It offers significantly higher efficiency, especially in environments with many simultaneously connected devices. Thanks to technologies like OFDMA and MU-MIMO, data packets are distributed more efficiently, leading to lower latencies, more stable connections, and higher aggregated speeds. For you, this means faster downloads, smoother streaming, and an overall improved user experience.


How many client devices can the Grandstream GWN7664 support simultaneously?

The Grandstream GWN7664 is designed for high-density user environments and can support an impressive 750+ concurrent Wi-Fi client devices. This makes it an ideal choice for offices, schools, hotels, or other public areas where many users access the network simultaneously.


What management options are available for the Grandstream GWN7664?

The Grandstream GWN7664 offers flexible management options. You can use the embedded controller, integrated directly into the device, which can manage up to 50 local GWN Access Points. For an unlimited number of Access Points, the free cloud management platform GWN.Cloud is available. Alternatively, GWN Manager provides an on-premise software solution for up to 3,000 GWN Access Points. This ensures you always have control, no matter the size of your network.


Does the Grandstream GWN7664 support Power over Ethernet (PoE)?

Yes, the Grandstream GWN7664 supports Power over Ethernet (PoE) according to 802.3af/at standards. This means you can power the device and transmit data over a single Ethernet cable. This significantly simplifies installation, as no separate power outlet is needed near the access point, offering you more flexibility in placement.


What is the maximum coverage range of the Grandstream GWN7664?

The Grandstream GWN7664 offers an impressive coverage range of up to 175 meters. This is made possible by its sophisticated internal antenna design and advanced 4x4:4 MU-MIMO technology, which ensures strong anti-interference performance and a stable connection over long distances.


Manufacturer information: Name: Grandstream Networks
Homepage: https://www.grandstream.com/
