Maximum Reliability: Your Internet, Triple Secured
No more connection drops in the middle of a video call or a decisive online match. The Cudy P5 was developed for maximum operational reliability. As an advanced 4G / 5G Routers, it offers you unique, triple redundancy. Use two Nano-SIM cards from different providers in failover mode: If your main provider's Network fails, the router switches instantly to the second SIM. Additionally, you can set up your existing DSL or fiber optic line as a primary or backup connection via the dedicated WAN/LAN port. This combination makes the P5 the perfect Home Office Internet Backup Solution.
Next-Generation Performance: 5G and Wi-Fi 6 in Harmony
At the heart of the Cudy P5 beats a Qualcomm core. The Snapdragon X62 5G modem delivers breathtaking speeds and supports both 5G SA (Standalone) and NSA (Non-Standalone) networks. In parallel, the Wi-Fi 6 chipset (AX3000) ensures highly efficient and fast data distribution in your home Network. Technologies like OFDMA and MU-MIMO enable numerous devices to be supplied simultaneously without performance loss. Whether you're downloading large files, streaming in 4K, or playing online – the P5 delivers the necessary power.
Full Control for Experts: Optimize Your Connection
Do you want more than just 'Plug and Play'? The Cudy P5 provides you with the tools you need. With the Router with Band Locking Function, you can force the router to connect to a specific, less congested 5G or 4G frequency band. This stabilizes the connection and can significantly improve speed in challenging locations. Additionally, manual TTL settings and comprehensive support for VPN protocols like WireGuard, OpenVPN, and IPsec enable granular customization and securing of your Network, as typically found only in professional devices.
Flexible and Expandable: From Desktop Router to Mesh System
The Cudy P5 adapts to your needs. The four external cellular Antennas are connected via standard SMA connectors and can be easily replaced by more powerful directional or omnidirectional Antennas if required – a crucial advantage in areas with weak cellular signals. Your WiFi also grows with your requirements. As a Cudy Mesh-capable WiFi Routers, the P5 can serve as the central hub for a seamless Mesh network. Simply add more Cudy Mesh repeaters to provide fast and stable WiFi to every corner of your home.
Strengths & Notes at a Glance
- Pro: Excellent connectivity redundancy through Dual-SIM and WAN failover.
- Pro: Powerful and modern hardware with Qualcomm Snapdragon X62 Modem and Wi-Fi 6.
- Pro: Extensive customization options for experts such as Band-Locking and TTL Settings.
- Pro: Flexibility through detachable external cellular Antennas with SMA connectors.
- Note: Under high load, the device may become warm; good ventilation is important.
- Note: The abundance of settings can be overwhelming for technical novices.
Specifications & Features
| Manufacturer: | Cudy |

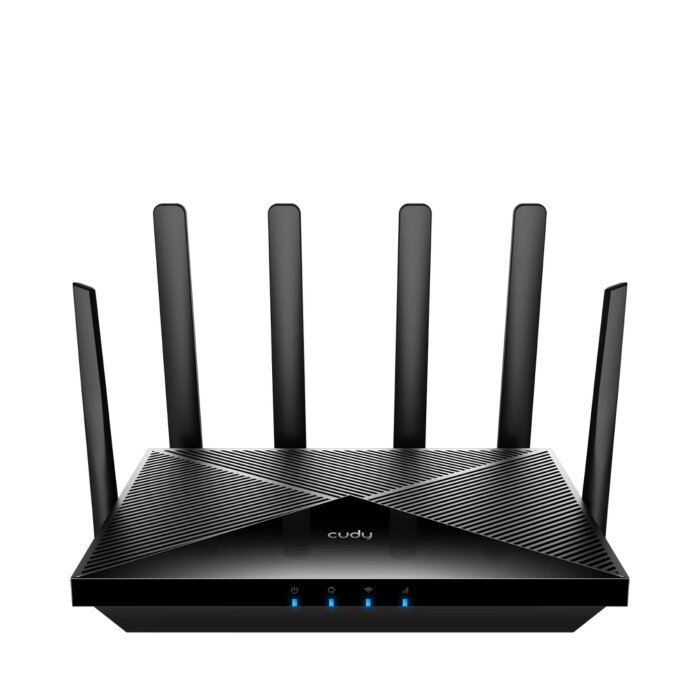

| Model: | P5 5G NR AX3000 Wi-Fi 6 Router |
| EAN: | 6971690792282 |
| Device Class: | 5G/4G Cellular Router with Wi-Fi 6 Access Point |
| 5G Modem: | Qualcomm Snapdragon X62 (via Quectel RM520N-GL Module) |
| Processor (CPU): | Qualcomm IPQ5018, Dual-Core ARM Cortex-A53 @ 1.0 GHz |
| RAM: | 256 MB DDR3 |
| Flash Memory: | 128 MB NAND |
| Cellular Technology: | 5G NR (Sub-6 GHz), 4G-A, 3G/WCDMA |
| 5G Modes: | Standalone (SA) and Non-Standalone (NSA) |
| Max. Data Rate 5G: | 3.4 Gbps (DL) / 900 Mbps (UL) |
| Max. Data Rate 4G: | 1.6 Gbps (DL) / 200 Mbps (UL) |
| Cellular MIMO: | 4x4 MIMO for 5G NR and 4G 4G |
| Carrier Aggregation: | Downlink 4CA |
| Supported 5G Bands: | n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
| Supported 4G Bands: | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 |
| Pro Cellular Features: | Band Lock, Manual TTL/HL-Settings |
| WiFi Standard: | Wi-Fi 6 (IEEE 802.11ax) |
| WiFi Speed: | AX3000 (2402 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz) |
| WiFi Features: | OFDMA, MU-MIMO, Cudy Mesh, Smart Connect, 160 MHz Channel Width |
| WiFi Encryption: | WPA-PSK, WPA2-PSK, WPA3 |
| Cellular Antennas: | 4x Detachable External Antennas (SMA-Female Connector) |
| WiFi Antennas: | 2x Internal/External Antennas |
| Ethernet Ports: | 4x Gigabit Ethernet (1x WAN/LAN, 3x LAN) |
| SIM Card Slots: | 2x Nano-SIM (Dual-SIM Failover) |
| VPN Support: | PPTP, L2TP, OpenVPN, WireGuard, IPsec, Zerotier (Client & Server) |
| DNS: | DNS over TLS (DoT) via Cloudflare, Google, Quad9 |
| Management: | Web Interface, Cudy Mobile App (iOS/Android) |
| Dimensions: | 253 x 152.5 x 48.2 mm |
| Weight: | 670 g |
| Power Supply: | 12 V DC, 2.5 A (External Power Adapter) |
| Operating Temperature: | 0 °C to 40 °C |
Scope of Delivery
| 1 x Cudy P5 5G Router |
| 4 x Detachable Cellular Antennas |
| 1 x 12V / 2.5A Power Adapter |
| 1 x RJ45 Ethernet Cable |
| 1 x Quick Installation Guide |
Frequently Asked Questions (FAQ)
Can the Cudy P5 use two SIM cards simultaneously?
No, the router cannot bundle two mobile connections. It uses the two SIM cards in failover mode: If the primary SIM card loses the connection, the router automatically switches to the second, secondary SIM card to maintain the internet connection.
Do I need external antennas for the Cudy P5?
Not necessarily. The router comes with four mobile antennas. In locations with good 5G/4G reception, these are sufficient. However, if you are in an area with a weak signal, external, higher-quality antennas can significantly improve speed and stability, as the router has the necessary SMA connectors.
Does the Cudy P5 support Mesh WiFi?
Yes, the Cudy P5 is compatible with Cudy Mesh technology. It can be used as a main router in a Mesh system with other Cudy Mesh-capable devices to create seamless WiFi coverage in larger apartments or houses.
Can I use the router with my regular internet connection even without a SIM card?
Yes. One of the four Gigabit Ethernet ports can be configured as a WAN port. You can connect your existing modem to this port and use the Cudy P5 as a powerful Wi-Fi 6 Router. The SIM cards can then serve as a backup connection (failover).
Which SIM card size is required?
The Cudy P5 uses two slots for Nano-SIM cards, the smallest common SIM card size.
Is the router suitable for online gaming?
Yes, the router is well-suited for gaming. 5G technology offers very low latency, and the Wi-Fi 6 standard ensures a fast and stable connection in the home network. Additionally, the QoS function helps prioritize gaming traffic.
