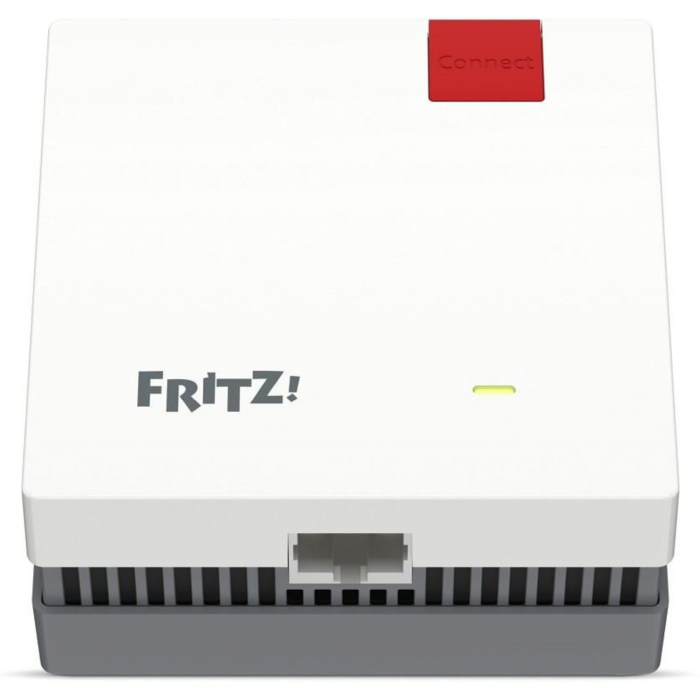

Wi-Fi 6 for your entire home: The FRITZ!Repeater 1200 AX
The FRITZ!Repeater 1200 AX brings the latest WiFi technology directly to your home. With Wi-Fi 6 (WiFi AX), you benefit not only from higher speeds but also from significantly improved efficiency when many devices are online simultaneously. The repeater intelligently uses both frequency bands (Dual-Band Crossband-Repeating) to transmit data between your router and your end devices without loss of speed. Whether it's a smartphone, tablet, laptop, or smart home device – this WiFi Repeaters for FRITZ!Box and other routers ensures a stable and fast connection throughout the entire Network.
Intelligent Mesh WiFi: Seamless surfing without interruption
In conjunction with a FRITZ!Box, the 1200 AX unfolds its full potential. As part of the FRITZ!Mesh system, it combines several WiFi Access Points into a single, intelligent Network. Functions such as Mesh Steering (AP Steering) and Band Steering ensure that your devices are always automatically and seamlessly connected to the access point and frequency band that offers the best performance. This allows you to move freely through your home while your video call or stream continues seamlessly. A strong WiFi signal, one Network name, one password – it couldn't be simpler.
More than just amplification: The Gigabit LAN port
The integrated Gigabit LAN port makes the FRITZ!Repeater 1200 AX a true multi-talent. You have two smart ways to use it: Either you connect a wired device such as a desktop PC, a gaming console, or a network printer directly to the repeater, making it WiFi-enabled. Or you use the 'LAN bridge' mode. In this mode, you connect the repeater to your router via a network cable and build your own powerful WiFi network at its location. This allows it to act like a full-fledged WiFi Access Points – ideal for providing maximum speed to remote areas.
Simple, secure, and efficient: Your AVM home network
AVM stands for easy operation and maximum security. Setting up the repeater is done in less than a minute at the touch of a button thanks to WPS. The FRITZ!OS user interface is clear and offers numerous setting and analysis options. With support for the latest WPA3 encryption standard, your WiFi is optimally protected. At the same time, the device operates extremely energy-efficiently with an average power consumption of only 4 watts, thus saving your wallet and the environment.
Strengths & Notes at a glance
- Pro: Strong Wi-Fi 6 performance with up to 3,000 Mbps for demanding applications.
- Pro: Seamless and intelligent Mesh integration with an AVM FRITZ!Box.
- Pro: High flexibility due to the Gigabit LAN port (client or WiFi Access Points mode).
- Pro: Very low power consumption and compact, inconspicuous design.
- Note: As a dual-band device, it shares radio capacity between router and client connections, which can lead to performance degradation under extreme load.
- Note: The range on the 5 GHz band can be more strongly affected by obstacles such as walls; optimal placement is important.
Specifications & Features
| Manufacturer: | AVM |
| Model: | FRITZ!Repeater 1200 AX |
| EAN: | 4023125029745 |
| AVM Article Number: | 20002974 |
| Device Type: | WiFi Repeaters |
| Operating Modes: | Repeater, LAN Bridge (WiFi Access Points) |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz simultaneous) |
| WiFi Standards: | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g/a |
| Data Rate 5 GHz Band: | up to 2,400 Mbps (AX) |
| Data Rate 2.4 GHz Band: | up to 600 Mbps (AX) |
| Combined Data Rate: | up to 3,000 Mbps (AX3000) |
| Antenna Configuration: | 4 internal Antennas |
| MIMO: | 2x2 MU-MIMO for both bands |
| Security: | WPA3, WPA2, WPA (incl. WPA3/2 Transition Mode) |
| Setup: | WPS (Wi-Fi Protected Setup) |
| Chipset (SoC): | Qualcomm IPQ5010 |
| Processor: | Dual-Core ARM Cortex-A53 (approx. 1.0 GHz) |
| Ports: | 1 x Gigabit-Ethernet (10/100/1000 Mbps) |
| Power Supply: | Direct for the socket (230 V, 50 Hz) |
| Power Consumption (Average): | approx. 4 watts |
| Power Consumption (Maximum): | 8.4 watts |
| Operating System: | AVM FRITZ!OS |
| Mesh Functions: | Crossband-Repeating, Band-Steering, AP-Steering (with FRITZ!Box) |
| Supported Protocols: | IPv6 |
| User Interface: | Browser-based (http://fritz.repeater) |
| Dimensions (H x W x D): | approx. 80 x 80 x 37 mm (without plug) |
| Weight: | approx. 160 g |
| Operating Temperature: | 0 °C – 40 °C |
Scope of Delivery
| 1 x AVM FRITZ!Repeater 1200 AX |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
Can I also use the FRITZ!Repeater 1200 AX with a router from another brand (e.g., Telekom, Vodafone)?
Yes, the repeater is compatible with all common WiFi Routers. The connection is easily established via WPS button press. However, the full Mesh comfort functions like AP-steering are only available in combination with a FRITZ!Box as the base.
What does 'AX' mean in the name of the FRITZ!Repeater 1200 AX?
'AX' stands for the WLAN standard IEEE 802.11ax, also known as Wi-Fi 6. This standard offers higher speeds, better efficiency with many simultaneously connected devices, and improved performance compared to older standards like Wi-Fi 5 (AC).
Is the repeater backward compatible with older devices without Wi-Fi 6?
Yes, absolutely. The FRITZ!Repeater 1200 AX supports all common older WiFi Repeaters standards (802.11ac, n, g, a). Older smartphones, laptops, or other devices can connect without problems and also benefit from the extended range.
What can I use the LAN port on the repeater for?
The Gigabit Ethernet Switch port has two main functions: You can connect a device without WiFi (e.g., a desktop PC, an older gaming console, or a network printer) via cable and thus make it WiFi-capable. Alternatively, you can connect the repeater via cable to your WiFi Routers (LAN bridge) to utilize full WiFi performance without losses due to the wireless link to the router.
How do I find the best position for the repeater?
The LED on the WiFi Repeaters indicates the quality of the connection to the router. Ideally, place the repeater halfway between the router and the area you want to cover with WiFi. For a detailed analysis and optimal positioning, AVM recommends the free FRITZ!App WiFi.
Do I need to set up a new WLAN with its own name?
No. When setting up in Mesh mode with a FRITZ!Box, the WiFi Repeaters automatically adopts the name (SSID) and password of the existing WiFi. Your devices connect seamlessly to the strongest signal without you having to manually switch the Network.
