Crystal Clear 2.5K Images – Day and Color at Night

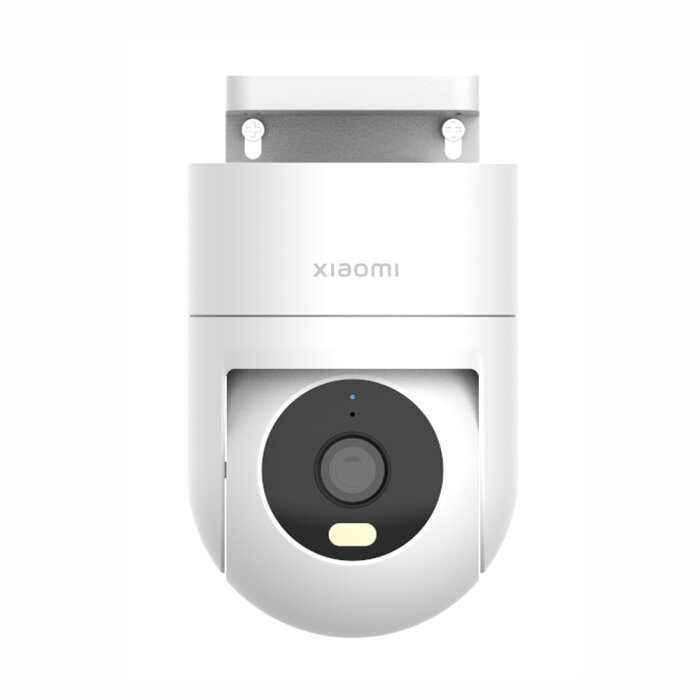

Security begins with a clear image. The Xiaomi Outdoor Camera CW300 sets new standards here. With its 4-megapixel sensor and ultra-high 2.5K resolution (2560x1440), you see every detail in impressive sharpness. The large f/1.6 aperture captures maximum information even in low light. The real highlight is the intelligent Surveillance Camera with Color Night Vision. In darkness, infrared LEDs provide clear black-and-white vision. As soon as the camera detects human movement, the white light spotlights activate, and you get a full-color recording – crucial for clearly identifying people or vehicles.
360° All-Round View: The Camera That Thinks and Tracks
Forget dead spots. Thanks to the motorized dual gimbal, you can pan the camera 350° horizontally and tilt it 108° vertically. The result is seamless 360° surveillance, which you conveniently control via app. But the CW300 can do even more: The integrated AI algorithm recognizes human silhouettes and automatically starts tracking. The camera autonomously follows the person and keeps them in the frame, while you immediately receive a notification on your phone. This intelligent function works completely locally on the device and does not require an expensive cloud subscription.
Reliable in Any Weather: IP66 Protection and Dual Connection
An outdoor camera must withstand the elements. The CW300 is IP66 certified, making it completely protected against dust and strong water jets. Whether heavy rain, snowstorm, or summer heat – with an operating temperature range of -30°C to 60°C, it works reliably all year round. You also have a choice for Network connection: Use the flexibility of 2.4 GHz WiFi or rely on the maximum stability of a wired connection via the RJ45 Ethernet port. This Outdoor IP Camera with App is one of the most flexible and robust solutions in the IP Cameras category.
Active Deterrence and Encrypted Security for Your Home
The CW300 is not just a passive observer, but an active guardian. If it detects an intruder in the surveillance zone, it triggers a loud acoustic alarm and activates the flashing LED spotlights to immediately scare away unwanted guests. Your privacy and data are protected at all times. The dedicated MJA1 security chip ensures hardware-level encryption of communication with an exclusive private key. All data transmission is secured, and cloud data is additionally encrypted with AES-128.
Strengths & Notes at a Glance
- Pro: Excellent 2.5K image quality with bright f/1.6 aperture.
- Pro: Smart color night vision improves detail recognition in darkness.
- Pro: Flexible 360° surveillance through PTZ function and AI human tracking.
- Pro: Robust, IP66-certified construction for outdoor use.
- Pro: Active deterrence through integrated siren and flashing lights.
- Pro: Dual connectivity via WiFi or stable Ethernet.
- Pro: High data security through dedicated MJA1 security chip.
- Note: Only supports the 2.4 GHz WiFi frequency band.
- Note: Requires a permanent Power Supply; the included power adapter is not weather-resistant.
Specifications & Features
| Manufacturer: | Xiaomi |
| Model: | Outdoor Camera CW300 (MBC21) |
| EAN: | 6941812767603 |
| Category: | IP Security Camera (Client) |
| Max. Resolution: | 2.5K UHD (2560 x 1440 Pixels) |
| Sensor: | 4 Megapixel |
| Aperture: | f/1.6 |
| Field of View (FoV): | 101.7° |
| PTZ Function: | Yes, Dual-Motor-Gimbal |
| Horizontal Rotation (Pan): | 350° - 360° |
| Vertical Rotation (Tilt): | 108° |
| Video Compression: | H.265 |
| Night Vision: | Smart Full-Color Night Vision |
| Infrared LEDs: | 2x 850nm IR Lights |
| White Light LEDs: | 2x Spotlights |
| Audio: | Two-Way Communication with AI Noise Reduction |
| WiFi Frequency: | 2.4 GHz |
| WiFi Standards: | IEEE 802.11b/g/n |
| Ports: | 1x RJ45 Ethernet Port, 1x DC Power Port |
| Local Storage: | MicroSD Card Slot (8 GB to 256 GB) |
| Cloud Storage: | Optional, Subscription-Based Service |
| Security & Encryption: | MJA1 Security Chip, AES-128 Bit Encryption |
| App Control: | Mi Home / Xiaomi Home App |
| Compatibility: | Android 8.0 or higher, iOS 12.0 or higher |
| Voice Control: | Compatible with Google Assistant and Amazon Alexa |
| Protection Class: | IP66 (Dustproof and Protected Against Strong Water Jets) |
| Camera Operating Temperature: | -30°C to 60°C |
| Power Supply: | 12V ⎓ 1A DC (External Power Adapter) |
| Power Adapter Cable Length: | 3 Meters |
| Power Adapter Note: | Not Waterproof, For Indoor Use Only |
| Dimensions: | 168 x 100 x 123 mm |
| Weight (Net): | 487 g |
Scope of Delivery
| 1 x Xiaomi Outdoor Camera CW300 |
| 1 x Power Adapter (12V/1A) with 3m Cable |
| 1 x Mounting Material (Screws & Dowels) |
| 1 x Positioning Sticker for Mounting |
| 1 x Waterproof Tape for Power Cable |
| 1 x User Manual |
Frequently Asked Questions (FAQ)
Can the Xiaomi Outdoor Camera CW300 record without an internet connection?
Yes, if a MicroSD card is inserted, the camera can store motion events locally on the card. However, an active internet connection (via WiFi or Ethernet) is absolutely necessary to access the live stream, retrieve recordings, and receive notifications on your smartphone.
Is a cloud subscription necessary for person detection?
No, the Xiaomi CW300 uses a local AI algorithm for person detection and tracking. This core function is free and does not require a paid cloud subscription. A subscription is only needed for extended storage of recordings in the cloud.
How is the camera powered and is the cable long enough?
The camera is powered by an included 12V/1A power adapter with a 3-meter long cable. It does not have a battery. If the cable is too short, a suitable DC extension cable must be purchased separately.
Does the camera support storage on a NAS or via ONVIF?
How weatherproof is the camera really?
The camera itself is IP66 certified. This means it is completely dustproof and protected against strong jets of water. Important: The included power adapter is not waterproof and must be plugged in a dry place, e.g., indoors.
Can the camera also be mounted on a pole?
Yes, in addition to ceiling and wall mounting, pole mounting is also possible. However, suitable mounting clamps are required for this, which are not included in the scope of delivery and must be purchased separately.
