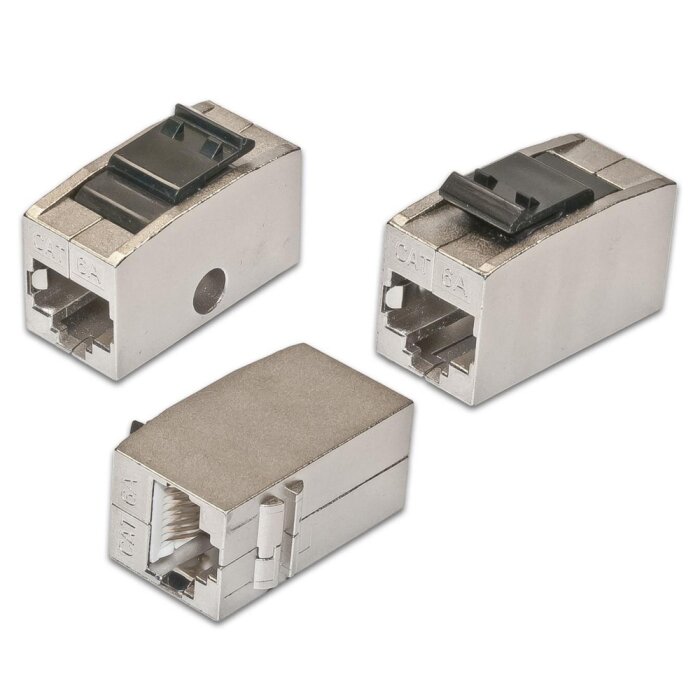

Stable 10-Gigabit Connections without Compromise
With the Wirewin CAT.6a Keystone Coupler, you make your Network ready for the future. It is specially designed for 10-Gigabit Ethernet and supports frequencies up to 500 MHz. Whether you want to connect two patch cables or realize a professional installation in a data outlet – this coupler ensures that the full bandwidth arrives without bottlenecks. It is the ideal component to extend a CAT 6a Network cable and maximize your Network's performance.
Maximum Interference Immunity thanks to STP Full Shielding
In environments where power and data Cabling are close together, good shielding is essential. The housing of the Wirewin coupler consists of a solid zinc alloy, which ensures seamless 360° shielding (STP). Electromagnetic Interference (EMI) and so-called Alien Crosstalk (ANEXT) are effectively blocked. For optimal performance, the entire Cabling, from the cables to the patch panel, should also be shielded to consistently protect signal integrity.
Flexible and Universal: The Keystone Advantage
The standardized Keystone format makes installation a breeze. The coupler can be snapped tool-free into any standardized Keystone opening. This allows for a clean and modular Network installation in patch panels, floor boxes, or wall outlets. You can flexibly adapt, expand, or rearrange your connections at any time – it doesn't get simpler or cleaner.
Power over Ethernet up to 100 Watts – Power and Data Combined
This coupler is more than just a data connector. It is fully designed for Power over Ethernet up to the latest PoE++ standard (802.3bt) with up to 100 watts of power. This allows you to power demanding devices such as 4K IP Cameras, modern WiFi Access Points, or VoIP phones with power and data via a single network cable. It works perfectly with any PoE-enabled Ethernet Switch or separate PoE Injectors / Power Supplies.
Strengths & Notes at a Glance
- Pro: The CAT 6A specification ensures full performance for Networks up to 10 Gbit/s.
- Pro: The fully shielded metal housing effectively protects signal integrity from interference (EMI).
- Pro: Thanks to the Keystone standard, the module can be integrated tool-free and flexibly into panels and outlets.
- Pro: Comprehensive support for all PoE standards up to PoE++ (100W) for powerful end devices.
- Note: Each coupler adds minimal signal attenuation, which could theoretically be relevant for cable lengths at the 100-meter limit.
- Note: STP shielding is only effective if the entire cable run (cable, connectors, panel) is also shielded and grounded.
Specifications & Features
| Manufacturer: | Wirewin |
| Product Name: | CAT.6a Keystone Coupler, STP |
| Manufacturer Part No.: | TKS COUPLER CAT6A |
| EAN: | 9120058272776 |
| Component Type: | Passive Network Coupler |
| Function: | Cable extension, Integration into panels/outlets |
| Network Specification: | CAT 6A |
| Supported Frequencies: | up to 500 MHz |
| Maximum Data Rate: | 10 Gigabit Ethernet (10 Gbit/s) |
| Connectors: | 2 x RJ45 Female |
| Pinout: | 1:1 (Straight-through) |
| Shielding: | STP (Shielded Twisted Pair), 360° Shielding |
| Housing Material: | Zinc Alloy (Metal) |
| Color: | Silver |
| Module Type: | Keystone (tool-free snap-in installation) |
| PoE Capability: | Yes, supports PoE, PoE+ (IEEE 802.3at), PoE++ (IEEE 802.3bt) 4PPoE |
| Maximum PoE Power: | up to 100 W |
| Installation Dimension (Standard): | approx. 14.9 x 17.0 mm |
| Dimensions (Packaging): | 2 x 7 x 10 cm |
| Weight: | approx. 10 g |
| Compliance (typical): | EIA/TIA 568 2.D, UL Listed, ETL Verified, RoHS-2 |
| Operating Temperature: | -10 °C to +60 °C (typical) |
Scope of Delivery
| 1 x Wirewin CAT.6a Keystone Coupler, STP |
Frequently Asked Questions (FAQ)
Can I use this coupler to extend a CAT 5e or CAT 6 cable?
Yes, the coupler is fully backward compatible. You can easily connect CAT 5e or CAT 6
Is special tool required for installing the Wirewin Keystone Coupler?
No. Since it is a female-to-female coupler, the
What does 'STP' mean and why is it important?
STP stands for 'Shielded Twisted Pair'. It means that the coupler has a metal housing that protects
Does this coupler support (PoE)?
Yes, the Wirewin CAT.6a coupler supports all
What is the difference between a coupler and a punch-down Keystone-Jack?
A coupler like this has an RJ45 socket on both sides and serves to easily connect two finished
Does such a coupler affect my internet speed?
No, when used correctly, no noticeable impact on internet speed is expected. The CAT 6A specification is designed for data rates up to 10,000 Mbit/s, which is well above the speeds of most internet connections, ensuring optimal
