The Powerhouse for Your Demanding UniFi Network

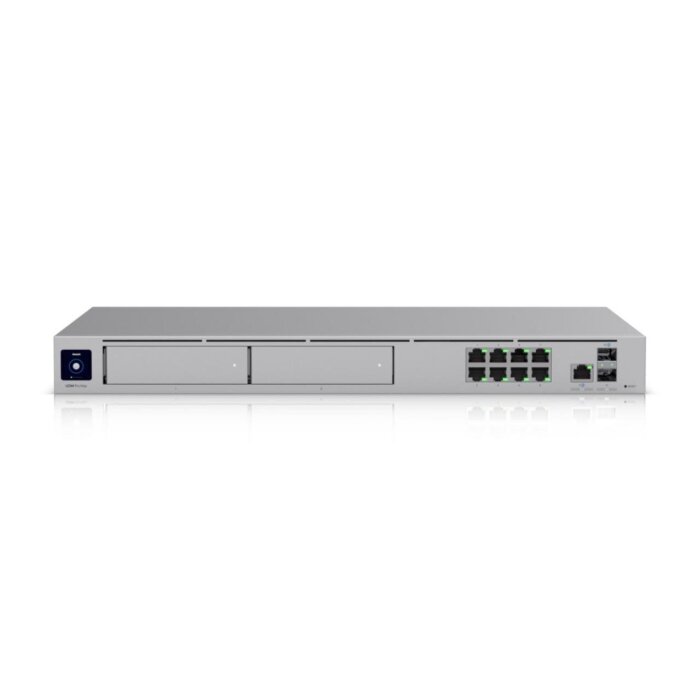

The Ubiquiti UniFi Dream Machine Pro Max is the ultimate all-in-one solution for businesses and prosumers who demand uncompromising performance, security, and scalability. This 1U Rack-mountable Gateway combines a high-performance Router, an advanced Security Gateway, a redundant Network Video Recorder (NVR) for UniFi Protect, and the central UniFi Network Controller in a single, elegant device. Whether you manage a growing corporate Network, a complex hotel installation, or a technologically sophisticated Smart Home – the UDM-Pro-Max provides the performance reserves to meet future requirements.
Uncompromising Security: Your Digital Shield with 5 Gbps
In an era where cyber threats are omnipresent, a powerful security system is essential. The UDM-Pro-Max scans your entire Network traffic with an impressive IDS/IPS throughput of 5 Gbps. This means that even with a multi-gigabit internet connection, there is no performance degradation due to active threat detection. The application-aware Layer-7 Firewall, combined with content, country, and ad filters, gives you the granular control you need. With comprehensive VPN support, including WireGuard and One-click Teleport, you secure access for your employees working from home or on the go.
Integrated UniFi Protect NVR with RAID Redundancy
Transform your UDM-Pro-Max into a professional surveillance center. With two integrated 3.5-inch hard drive bays and support for RAID 1 (mirroring), your video recordings are protected from a hard drive failure. If one HDD fails, your data is safe on the second. Additionally, a 128 GB internal SSD ensures fast application loading times and stores detection events in a flash. Manage up to 50 HD or 15 4K IP Cameras and build a seamless security system that you can monitor from anywhere in the world via the UniFi Protect App.
Maximum Availability and Scalability for Your Business
Network outages can be costly. That's why the UDM-Pro-Max was designed for maximum reliability. The Multi-WAN functionality with failover and load balancing ensures a stable internet connection. For ultimate reliability, the device supports “Shadow Mode”, which allows you to configure a second device as a hot-standby that takes over immediately in case of a failure. While the eight Gigabit LAN Ports provide a solid foundation, utilizing modern UniFi Access Points requires an additional Multi-Gigabit Ethernet Switch to unleash the full potential of your Network.
Strengths & Notes at a Glance
- Pro: Impressive 5 Gbps IDS/IPS throughput for fast internet connections without performance loss.
- Pro: Two 3.5' HDD bays with RAID-1 support for fail-safe video recordings with UniFi Protect.
- Pro: Enormous management capacity for over 200 UniFi devices and more than 2,000 clients.
- Pro: Supports high availability through 'Shadow Mode' (VRRP) for minimal Network downtime.
- Note: Does not have integrated PoE Ports; a separate PoE Switch or PoE Injectors / Power Supplies are required for PoE-enabled devices such as IP Cameras or UniFi Access Points.
- Note: The eight RJ45 LAN Ports are limited to 1 Gbps. For faster connections, the 10G SFP+ Port or an additional Multi-Gigabit Ethernet Switch must be used.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi Dream Machine Pro Max (UDM-Pro-Max) |
| EAN: | 0810084693254 |
| Device Class: | Cloud Gateway |
| Processor: | Quad-Core ARM® Cortex®-A57 with 2.0 GHz |
| RAM: | 8 GB DDR4 |
| System Storage (Flash): | 32 GB eMMC |
| Integrated SSD Storage: | 128 GB SSD (for NVR events & application data) |
| NVR Storage Expansion: | 2x 3.5-inch HDD Bays |
| RAID Support: | RAID 1 (Mirroring) |
| IDS/IPS Throughput: | 5 Gbps (measured with iPerf3) |
| MAC Address Table: | 4,000 entries |
| Managed UniFi Devices: | 200+ |
| Concurrent Clients: | 2,000+ |
| Camera Capacity (UniFi Protect): | Up to 50 HD / 25 2K / 15 4K Cameras |
| Managed Access Hubs: | 150 |
| LAN Ports (RJ45): | 8x 1 GbE RJ45 |
| LAN Port (SFP+): | 1x 10G SFP+ |
| WAN Port 1 (RJ45): | 1x 2.5 GbE RJ45 |
| WAN Port 2 (SFP+): | 1x 10G SFP+ |
| Multi-WAN: | Yes, with Failover and Load Balancing |
| Management Interfaces: | Ethernet, Bluetooth |
| Firewall: | Layer-7 application-aware, zone-based, stateful |
| Threat Detection: | Signature-based IPS/IDS |
| Filtering: | Content, Country, Domain, Advertising |
| VPN Server: | WireGuard, L2TP, OpenVPN |
| VPN Client: | OpenVPN |
| Site-to-Site VPN: | OpenVPN, IPsec |
| Additional VPN Features: | One-click Teleport, Identity VPN, Policy-based Routing |
| Form Factor: | 1U Rack-mountable |
| Dimensions (W x H x D): | 442.4 x 43.7 x 285.6 mm |
| Weight: | 4.7 kg |
| Housing Material: | CNC-machined aluminum, SGCC steel |
| Display: | 1.3-inch Touchscreen |
| Power Supply (AC): | 1x Universal AC input (100–240V AC) |
| Power Supply (DC Redundancy): | 1x USP-RPS DC input (11.5V DC, 8.7A) |
| Max. Power Consumption: | 60W (without hard drives) |
| ESD/EMP Protection: | Air: ± 15kV, Contact: ± 8kV |
| Operating System: | UniFi OS |
| Operating Temperature: | -10°C to 40°C |
| Operating Humidity: | 5 to 95 % (non-condensing) |
| Certifications: | CE, FCC, IC |
Scope of Delivery
| 1 x Ubiquiti UniFi Dream Machine Pro Max (UDM-Pro-Max) |
| 1 x Rack Mount Kit |
| 1 x Power Cable |
Frequently Asked Questions (FAQ)
Is the UDM-Pro-Max a full-fledged router?
Yes, the UDM-Pro-Max is a powerful router and a complete Security Gateway. It handles all routing tasks, DHCP, DNS, firewall rules, and VLAN management for a large Network.
Can I build a WiFi network directly with the UDM-Pro-Max?
No. The UDM-Pro-Max does not have built-in WiFi Antennas. It is the central control unit (controller) for separate Ubiquiti UniFi Access Points, which you must purchase additionally and distribute throughout your building to create a WiFi network.
What is the main difference between the UDM-Pro-Max and the UDM-Pro?
The UDM-Pro-Max offers higher performance with a faster processor and more RAM, leading to a higher IDS/IPS throughput (5 Gbps vs. 3.5 Gbps) and the ability to manage more devices and clients. Additionally, it features two hard drive bays with RAID support for fail-safe video recordings, whereas the UDM-Pro only has one bay.
Do I need a subscription to use the UDM-Pro-Max?
No, a subscription is not required for the basic use of the UniFi Network Application and most gateway functions. However, Ubiquiti offers optional subscriptions like "CyberSecure," which enhances threat detection with an advanced and real-time updated signature database.
What does "Shadow Mode" mean?
The "Shadow Mode" is a High Availability feature where a second UDM-Pro-Max is configured as a passive backup device. If the primary device fails, the backup device automatically takes over its function to minimize Network downtime.
Is the UDM-Pro-Max suitable for a home network?
For most home networks, the UDM-Pro-Max is oversized and too expensive. It is aimed at demanding prosumers, small to medium-sized businesses (SMBs), or installations with very fast internet connections (>1 Gbps) and the need for advanced security and video surveillance, potentially involving IP Cameras.
