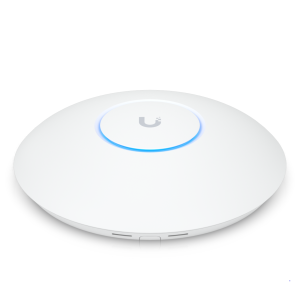

The UniFi U7-Pro-Max is a WiFi 7 access point of the latest Ubiquiti generation. In 802.11be WiFi operation, it generates data rates of up to 9.3 Gigabit. The WiFi 7 standard allows end devices to simultaneously receive 2.4GHz, 5GHz, and the new 6GHz frequency with combined data throughput. Additionally, it features a 2.5 Gigabit network port for demanding and complex wired network components. The UniFi U7-Pro-Max is powered via PoE+.
The service of the new WiFi 7 standard allows a larger number of clients to receive high-quality data streams using the algorithms of the new 802.11be standard. The device is many times more efficient than the previous U6 series models. The omnidirectional antenna array is designed to provide increased radio coverage and is optimized for ceiling mounting.
Unlimited Scalability
Scale your WiFi network as large or small as you need it. The UniFi system can be expanded and enlarged at any time with additional UniFi APs. You can start with one UniFi access point and expand the system at any time. The integrated UniFi access points form a network and thus create a large and high-performance WiFi network.
UniFi App
The UniFi AC access points can be configured and controlled either via the UniFi Controller software or via the new UniFi app.
Power over Ethernet (PoE)
The U7-Pro-Max is powered via PoE+. A PoE injector is not included. The UniFi access point can also be conveniently operated via a UniFi PoE switch.
Technical Data:
| Manufacturer / Model: | Ubiquiti Networks / UniFi U7-Pro-Max |
| Network Interface: | 1 x 2.5 GbE Ethernet Port |
| WiFi Frequency Band: | 2.4 GHz / 5GHz / 6GHz |
| WiFi Standards: | 802.11a/b/g/n/ac/ax/be |
| Data Rates: | 2.4 GHz: 688 Mbit 5 GHz: 2.882 Mbit 6 GHz: 5.765 Mbit |
| Maximum Number of Connected Clients: | 500+ |
| TX Transmit Power: | max. 26dBm |
| Max. Power Consumption: | 21W |
| Power Consumption: | 48V, 0.5A PoE Adapter (Not Included) |
| Power Supply: | PoE+ (44-57V) |
| Dimensions: | Ø206 x 46 mm |
| Weight: | 680g (without mounting plate) |
| Operating Temperature: | -30°C to 60°C |
| Humidity: | 5 - 95% non-condensing |
Package Contents:
| 1 x Ubiquiti UniFi U7-Pro-Max |
| 1 x Wall and Ceiling Mounting Kit |
