Your UniFi Mesh System for boundless outdoor WiFi

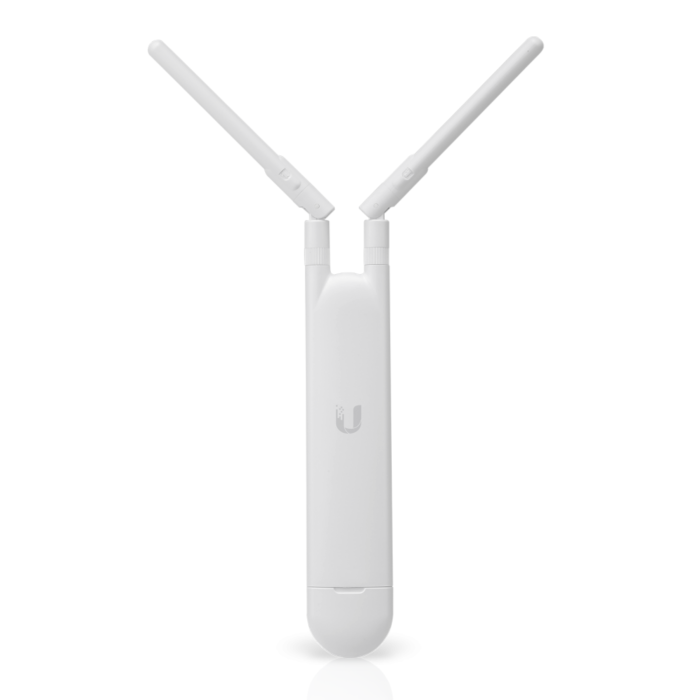

No more weak WiFi signal on the terrace or in the garden. The Ubiquiti UniFi AC Mesh (UAP-AC-M) was developed precisely to bring your Network where you really need it. Thanks to its weatherproof housing according to IPX4 standard, it is optimally protected for outdoor use. Mounting is very simple: whether on the house wall or on a pole, the appropriate brackets are already included. For special requirements, you can even replace the detachable Antennas with optional Directional Antennas to provide targeted high-speed WiFi to distant areas such as the garden shed or the barbecue area.
Seamless integration into your UniFi Network
The UAP-AC-M is more than just a single Access Point – it is an integral part of the powerful UniFi ecosystem. All configuration, management, and monitoring are done centrally via the free UniFi Network Application. Here you set up guest networks, manage updates, and analyze the performance of your entire Network, whether you operate one or a hundred UniFi Access Points. This central management makes the system infinitely scalable and is perfect for demanding home users and professional installations.
Strong Mesh Performance: WiFi where no cable goes
The namesake Mesh function is the core of this Access Point. You don't have to lay Ethernet Cables everywhere. Simply place a UAP-AC-M within range of an already cabled UniFi Access Point. The two devices connect wirelessly (Wireless Uplink) and thus extend the coverage of your Network. This Plug & Play Mesh Technology is the ideal solution to quickly and easily close WiFi gaps on large properties, in warehouses, or at events and ensure seamless coverage.
Easy Power Supply and modern security
A single Ethernet Cable is sufficient for data and power. The UniFi AC Mesh supports both 24V Passive PoE and the common 802.3af PoE standard. This makes it compatible with a variety of PoE Injectors / Power Supplies and UniFi Switch models. The single package already includes a suitable Gigabit PoE Adapter, so you can get started immediately. In terms of security, you are well equipped for the future thanks to support for the modern WPA3 standard (requires current firmware) and protect your Network from unauthorized access.
Strengths & Notes at a Glance
- Pro: Extremely flexible for indoor and outdoor Mounting.
- Pro: Removable Antennas allow the use of special Antennas.
- Pro: Excellent price-performance ratio for Enterprise features.
- Pro: Perfect integration and unlimited scalability in the UniFi ecosystem.
- Pro: Easy Network expansion through powerful Mesh function.
- Note: The UniFi Network Application (Controller) is absolutely necessary for setup and management.
- Note: In pure Mesh operation (wireless uplink), the available bandwidth for end devices is reduced.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi AC Mesh (UAP-AC-M) |
| EAN: | 0810354025792 |
| Device Type: | WiFi Access Point |
| Max Transmit Power 2.4 GHz: | 20 dBm |
| Max Transmit Power 5 GHz: | 20 dBm |
| Antennas: | (2) External, detachable Dual-Band Omni-Antennas |
| Antenna Connectors: | (2) RP-SMA |
| Antenna Gain 2.4 GHz: | 3 dBi |
| Antenna Gain 5 GHz: | 4 dBi |
| MIMO Technology: | 2x2 MIMO (2.4 GHz & 5 GHz) |
| WiFi Standards: | 802.11a/b/g/n/ac (WiFi 5) |
| Roaming Optimization: | 802.11r/k/v |
| Frequency Bands: | Simultaneous Dual-Band (2.4 GHz / 5 GHz) |
| Data Rate 2.4 GHz: | up to 300 Mbps |
| Data Rate 5 GHz: | up to 867 Mbps |
| Aggregate Data Rate: | 1167 Mbps |
| Encryption: | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), WPA3 (via Firmware Update) |
| BSSIDs per Radio: | Up to 8 |
| VLAN Support: | 802.1Q |
| Advanced QoS: | Per-User Rate Limiting |
| Guest Network Isolation: | Supported |
| Concurrent Clients: | 200+ recommended |
| Ports: | (1) 10/100/1000 Gigabit Ethernet Port |
| Buttons: | Reset |
| Power Supply: | 24V Passive PoE or 802.3af PoE Alternative A |
| Supported Voltage Range: | 44 to 57VDC |
| Max Power Consumption: | 8.5W |
| PoE Adapter (Single Pack): | 24V, 0.5A Gigabit PoE Adapter included |
| Protection Class: | IPX4 (weatherproof) |
| Operating Temperature: | -30 to 70° C |
| Operating Humidity: | 5 to 95% non-condensing |
| Certifications: | CE, FCC, IC |
| Management Software: | UniFi Network Application |
| Dimensions (with Antennas): | 353 x 46 x 34.4 mm |
| Weight (with Antennas): | 152 g |
| Housing Material: | UV-resistant Plastic |
Scope of Delivery
| 1 x Ubiquiti UniFi AC Mesh (UAP-AC-M) |
| 2 x Dual-Band Antennas |
| 1 x Wall Mount |
| 1 x Pole Mount |
| 1 x Gigabit PoE Adapter (24V, 0.5A) with Power Cord |
| 1 x Screw Set |
Frequently Asked Questions (FAQ)
Can the UniFi AC Mesh be used as a standalone Router?
No, the UAP-AC-M is purely a WiFi Access Point. It must be connected to an existing Router or a Network with a DHCP server to function. It does not have routing or firewall capabilities.
Is the UniFi AC Mesh suitable for outdoor use?
Yes, the Enclosure is weather-resistant according to the IPX4 standard and designed for an operating temperature range of -30 to 70° C, making it ideal for outdoor Network deployments.
Do I need special hardware to operate the Access Point?
No, the UniFi Network Application required for management can be installed for free on a PC, Mac, or Linux computer. For Power Supply, a PoE Injector (included in the single pack) or a compatible UniFi Switch is needed.
What does "Mesh" mean for this Access Point?
Mesh means that the WiFi Access Point can wirelessly connect with other UniFi Access Points to extend the WiFi signal. This is useful for expanding WiFi coverage in locations where Ethernet Cables cannot be laid.
Does the UAP-AC-M support the latest WPA3 security standard?
Yes. Although the original datasheets only listed WPA2, WPA3 support was added through later firmware updates. To use WPA3, both the Access Point's firmware and the UniFi Network Application must be on a current version.
What is the range of the UniFi AC Mesh?
The theoretical range is stated by the manufacturer as up to 183 meters under optimal conditions. In practice, the effective range of this WiFi Access Point heavily depends on obstacles such as walls, trees, and interference.
