Challenge: Bottlenecks in Wireless Connectivity?
In modern network infrastructures, high bandwidth and low latency are crucial. Traditional WLAN solutions often reach their limits, especially with Point-to-Point connections over longer distances or in environments with high radio interference. You need a reliable and powerful radio bridge that meets the demands of WISP deployments, video surveillance, or connecting remote buildings, without requiring complex cable installations.

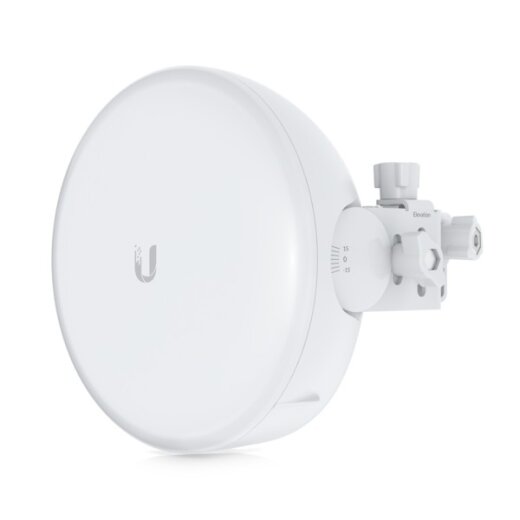

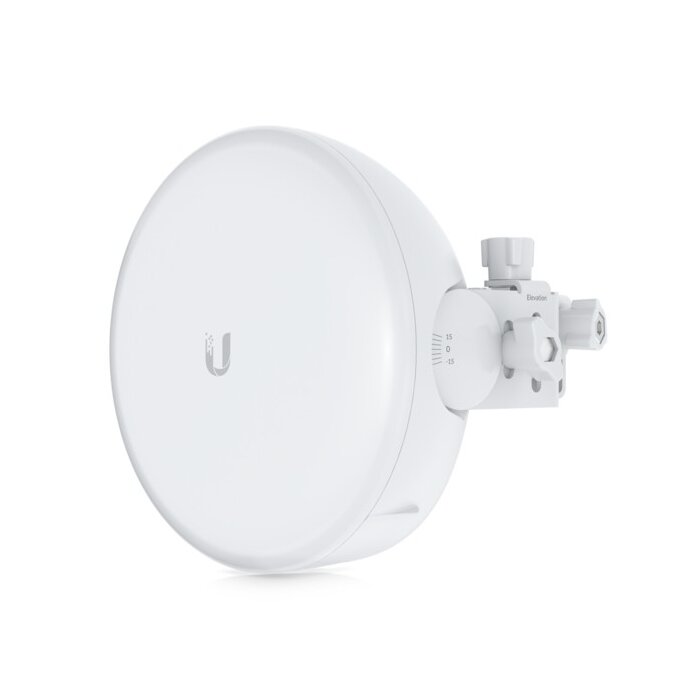

The Solution: Ubiquiti GigaBeam Plus – Gigabit Performance over Radio
The Ubiquiti GigaBeam Plus (GBE-Plus) offers an innovative answer to these challenges. As a 60 GHz radio system, it utilizes a spectrum that is significantly less susceptible to interference than the congested 2.4 GHz and 5 GHz bands. With an impressive bidirectional throughput rate of over 1.5 Gbps and a range of up to 1.5 km, it enables you to build high-speed radio links with extremely low latency. The GBE-Plus is the ideal choice for a stable and fast wireless connection wherever you need it.
Technical Details that Convince
The GigaBeam Plus was specifically developed for maximum performance and reliability. In the 60 GHz band, it supports a full channel bandwidth of 2160 MHz, which enables the enormous data throughput. The integrated 35 dBi Cassegrain reflector antenna ensures precise signal focusing and minimizes scattering losses, optimizing the range and stability of the connection. For easy management and alignment, a dedicated 2.4 GHz WLAN management radio module is integrated, allowing configuration via the intuitive UISP™ web application or mobile app via Bluetooth. The device is powered by passive PoE and, thanks to its robust housing made of UV-resistant polycarbonate and stainless steel, is designed for outdoor use under extreme conditions from -40 °C to 60 °C. The ESD/EMP protection functions of ±24 kV also ensure high operational safety.
Your Advantage: Reliable High-Speed Connectivity
With the Ubiquiti GigaBeam Plus, you are investing in a future-proof solution for your wireless high-speed connections. You benefit from easy installation, intuitive management, and outstanding performance that effortlessly handles even the most demanding applications. Whether you operate a WISP, connect remote locations, or want to build a high-performance backhaul link – the GBE-Plus delivers the necessary bandwidth and stability to meet your network requirements and increase your productivity.
Technical Specifications
| Manufacturer: | Ubiquiti Networks |
| Model: | GigaBeam Plus (GBE-Plus) |
| EAN: | 0810010075192 |
| Frequency Range (60 GHz): | 57,000 - 66,000 MHz (region dependent) |
| Frequency Range (Management WLAN): | 2400 - 2483.5 MHz (Bluetooth) |
| Antenna Gain (60 GHz): | 35 dBi (integrated Cassegrain reflector) |
| Max. Data Throughput: | 1.5+ Gbps bidirectional |
| Range: | Up to 1.5 km |
| Networking Interface: | 1 x 10/100/1000 Mbps RJ45 Port |
| Processor: | Quad-Core ARM® Cortex® A7 |
| Memory: | 256 MB DDR3 |
| Max. Power Consumption: | 11W |
| Power Method: | Passive PoE (24VDC, 0.5A Gigabit PoE Adapter included) |
| Supported Voltage Range: | 22 - 26 VDC |
| ESD/EMP Protection: | Air/Contact: ± 24 kV |
| Operating Temperature: | -40 to 60° C (-40 to 140° F) |
| Operating Humidity: | 5 - 95% non-condensing |
| Enclosure Materials: | UV-resistant polycarbonate, stainless steel |
| Mount Material: | Metal |
| Wind Loading: | 50 N at 200 km/h (11.24 lbf at 125 mph) |
| Dimensions: | Ø 155 x 137 mm (Ø6.1 x 5.4") |
| Weight: | 1 kg (2.2 lb) |
| Operating System: | airOS® |
| Operating Modes: | PtP Master or Station |
| Security: | WPA2 AES Only |
| Management: | UISP™ App (Web/Mobile) via Bluetooth |
| Certifications: | FCC, IC, CE |
Scope of Delivery
| 1 x Ubiquiti GigaBeam Plus (GBE-Plus) |
| 1 x PoE Injector (24VDC, 0.5A Gigabit) |
| 1 x Power Cable |
| 1 x Mounting Material (Jubilee Clip) |
Homepage: https://www.ui.com
