BATLINK MAU10: Compact and Universal
You have found the perfect 1-inch threaded base mount for your RV or boat, but your desired antenna requires a classic pole mount? The BATLINK MAU10 mast adapter (the little brother of the MAU20) is designed exactly for this case. It is the ideal choice for smaller Antennas or if you want to keep the installation on the vehicle roof as low-profile as possible.
Simple Principle, Huge Impact

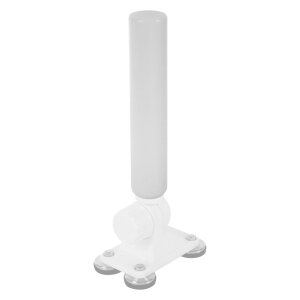

The adapter is simply screwed onto the 1 inch BSF male thread (14 tpi) of your mount (e.g., 3DK tilt mount or 3D2SL suction cup) at the bottom. The result is a short 10 cm, highly stable tube with a diameter of 38 mm. You can now clamp any brand of antenna that requires a classic pipe clamp installation to this tube.
Nylon for the Toughest Uses
Especially in marine or off-road environments, the material has to withstand a lot. Therefore, the MAU10 is machined from a solid block of special nylon. It does not break, it does not rust, and it does not weather. Whether facing aggressive UV radiation, sub-zero temperatures, or salty sea air – this adapter provides your antenna with a secure, corrosion-free base.
Technical Data
| Brand: | BATLINK |
| Model: | MAU10 (Compact Mast Adapter) |
| Function: | Adapts 1" thread to 38mm antenna pole |
| Length: | 10 cm (100 mm) |
| Mast Diameter: | 3.8 cm (38 mm) |
| Material: | Robust Nylon (Weather & Seawater Resistant) |
| Connection (Bottom): | 1" x 14 BSF Female Thread |
| Compatibility: | BATLINK base mounts (3DK, 3D2SL, etc.) & Universal 1" Marine Mounts |
Scope of Delivery
| 1 x BATLINK MAU10 Universal Mast Adapter (10cm) |
