Brilliant 4K Resolution Meets Full-Color Night Vision
No more blurry and grainy footage. The TP-Link VIGI C485 delivers stunning 4K UHD resolution with its 8-megapixel sensor, capturing every detail crystal clear. But the real magic begins when the sun goes down. Instead of washed-out black and white images, this IP camera provides night vision in color. Thanks to highly sensitive components and integrated white light LEDs with a 30-meter range, you can recognize people, vehicles, and objects in their true colors even in the deepest night – a crucial advantage for identification.
Intelligent AI Detection: Never a False Alarm Again
Are you tired of receiving notifications for every falling leaf or passing cat? The VIGI C485 uses advanced AI algorithms to intelligently distinguish between people, vehicles, and other movements. Define zones for line crossing, area entry, or intrusion detection and only be alerted when something truly important happens. This not only saves nerves but also makes your surveillance significantly more efficient and targeted.
Robust & Flexible: Built for Any Weather, Easily Installed
This camera is designed for tough outdoor use. The solid metal housing is IP67 certified, making it completely protected against dust and strong water jets. Whether freezing cold at -30 °C or scorching heat at 60 °C – the VIGI C485 operates reliably. Installation is a breeze thanks to Power over Ethernet (PoE) support. A single Network cable is enough to supply the camera with power and data. This makes Cabling clean, simple, and flexible. If you don't have a PoE Network, you can alternatively operate it with a 12V power adapter. This camera belongs to the category of professional IP Cameras from TP-Link VIGI.
Active Deterrence and Direct Communication
The VIGI C485 is not just a passive observer, but an active part of your security concept. Upon detecting an intruder, the camera can automatically trigger a loud alarm and flash the integrated white light LEDs to effectively deter unwanted visitors. Additionally, the built-in microphone and speaker enable two-way communication. Greet your guests, give instructions to the delivery person, or unequivocally tell intruders to leave your property – all directly via the VIGI app on your smartphone.
Strengths & Notes at a Glance
- Pro: Excellent 4K image quality with detailed full-color night vision for better identification.
- Pro: Advanced AI analysis for distinguishing between people and vehicles drastically reduces false alarms.
- Pro: Robust IP67 metal housing and flexible Power Supply via PoE or 12V DC for maximum installation freedom.
- Pro: Active deterrence through light and sound alarms, as well as two-way audio for direct communication.
- Note: The frame rate is reduced from 25fps to 20fps when premium features like 120dB WDR or image rotation are active.
- Note: The device requires a wired Network connection and does not have WLAN functionality.

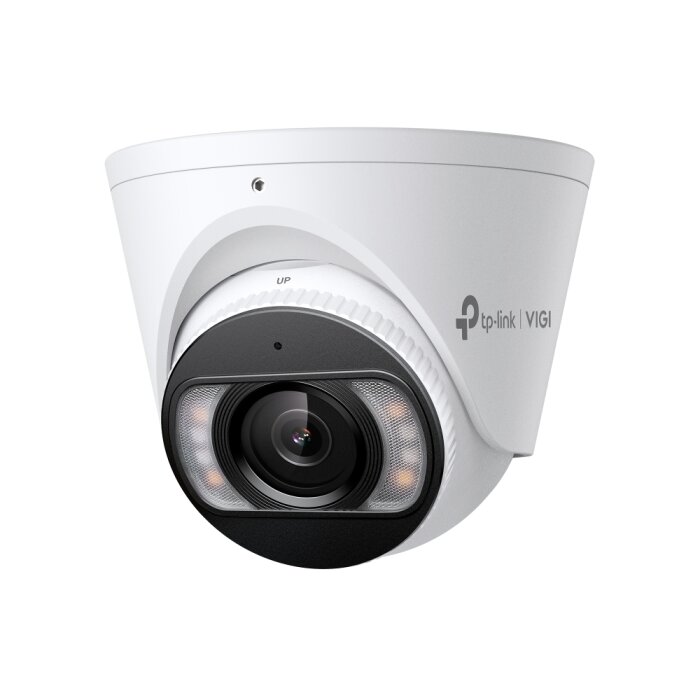

Specifications & Features
| Manufacturer: | TP-Link |
| Model: | VIGI C485 (4mm) |
| EAN: | 4895252502442 |
| Camera Type: | 8MP 4K Turret IP Camera |
| Image Sensor: | 1/2.7” Progressive Scan CMOS |
| Maximum Resolution: | 8 Megapixels (3840 x 2160 Pixels) |
| Minimum Illumination: | 0.005 Lux (Color); 0 Lux with IR / White Light |
| Shutter Speed: | 1/3 s to 1/10000 s |
| Day/Night Mechanism: | Mechanical IR Cut Filter |
| Signal-to-Noise Ratio (SNR): | ≥ 52 dB |
| Lens Type: | Fixed-focus Lens (4 mm) |
| Aperture: | F1.6 |
| Field of View (Horizontal / Vertical / Diagonal): | 91.5° / 46.1° / 109.6° |
| DORI Distance (Detect / Observe / Recognize / Identify): | 107 m / 44 m / 21 m / 11 m |
| IR Range: | Up to 30 m (850nm) |
| White Light Range: | Up to 30 m |
| Video Compression: | H.265+, H.265, H.264+, H.264 |
| Maximum Frame Rate: | 25fps @ 3840x2160 (20fps with active WDR/Rotation) |
| Image Enhancement: | 120dB True WDR, 3D DNR, BLC, HLC, Smart IR |
| Audio: | Two-way audio with integrated microphone and speaker |
| Network Connection: | 1x RJ45 10/100M Self-Adaptive Ethernet Port |
| API & Compatibility: | ONVIF (Profile S) |
| Smart Functions (AI): | Person/Vehicle Detection, Intrusion, Line Crossing, Area Entry/Exit |
| Local Storage: | Integrated MicroSD card slot (up to 256 GB) |
| Power Supply: | 12V DC ± 5% or PoE (802.3af/at, Class 0) |
| Maximum Power Consumption: | 12.5 W (PoE), 11.5 W (12V DC) |
| Protection Class: | IP67 (Dust and waterproof) |
| Operating Temperature: | -30 °C to 60 °C |
| Material: | Metal |
| Dimensions (L x W x H): | 111 × 111 × 83.7 mm |
| Weight: | 0.48 kg |
Scope of Delivery
| 1 x TP-Link VIGI C485 Network Camera |
| 1 x Quick Start Guide |
| 1 x Waterproof Cable Attachments |
| 1 x Mounting Accessories (screws and anchors) |
Frequently Asked Questions (FAQ)
Can the TP-Link VIGI C485 record color images at night?
Yes, the camera features a "Full-Color" mode. Thanks to highly sensitive sensors and integrated white light LEDs, it can record clear and colorful video images even in very low ambient light or complete darkness.
Does the VIGI C485 camera require a separate power cable?
Not necessarily. The camera supports Power over Ethernet (PoE). When connected to a PoE-enabled switch or injector, it receives power and data via a single Ethernet Cable. Alternatively, it can also be operated with a 12V DC power adapter.
How does the camera distinguish between people and other movements?
The VIGI C485 uses advanced AI algorithms for person and vehicle classification. It analyzes the shape and movement of objects, allowing it to reliably distinguish between people, vehicles, and irrelevant triggers like falling leaves, to minimize false alarms.
Can I save camera recordings without an NVR?
Yes, the camera has a built-in microSD card slot that supports cards with up to 256 GB capacity. This allows you to save recordings directly on the camera without needing an external Network Video Recorder (NVR).
Is the camera suitable for outdoor use in rain and snow?
Absolutely. The VIGI C485 has an IP67 protection rating, meaning it is completely dustproof and protected against powerful water jets. The robust metal housing and an operating temperature range of -30 °C to 60 °C make it ideal for year-round outdoor use.
Does the camera support the ONVIF standard for integration into existing systems?
Yes, the camera is ONVIF compliant (Profile S). This ensures interoperability with a variety of third-party surveillance devices and software, allowing it to be easily integrated into existing video surveillance systems.
