Smart AI Analysis: No More False Alarms
The TP-Link VIGI C345 is more than just a camera – it's an intelligent observer. Thanks to integrated deep-learning algorithms, it is a true outdoor surveillance camera with person detection. It continuously analyzes the image and classifies objects into people and vehicles. The result for you? You only receive notifications that are truly important. Define zones for line crossing, area entry, or intrusion and let the camera automatically trigger an alarm when relevant activity is detected. False alarms caused by pets or shadows are now a thing of the past.
Brilliant Colors, Even in the Deepest Night
Where conventional cameras only deliver black and white images at night, the VIGI C345 plays to its strengths. With innovative Full-Color technology and an extremely light-sensitive sensor, it captures vivid color images even with minimal ambient light. If it's completely dark, the integrated white light LEDs subtly switch on and illuminate the scene. This allows you to recognize important details such as the color of a car or a person's clothing – a decisive advantage for security. This PoE camera with color night vision sets new standards.
Active Defense: Your Digital Watchdog
The VIGI C345 doesn't just watch; it actively intervenes. As soon as the AI detects a suspicious event, such as a person entering your property at night, the camera initiates "Active Defense." A loud acoustic alarm (siren) and a bright, flashing strobe light are triggered to immediately deter potential intruders and draw attention to the surveillance. This outdoor IP camera with siren gives you an additional level of proactive security and protects your property before anything happens.
Robust and Flexible: Built for Any Weather
This camera is designed for tough outdoor use. The solid metal housing is IP67 certified, making it completely dustproof and protected against temporary submersion. Whether at icy -30 °C or summery 60 °C, the VIGI C345 operates reliably. Installation is made easy by the dual Power Supply option. Use Power over Ethernet (PoE) to power the camera and transmit data via a single Network cable. Alternatively, you can also use a classic 12V DC power adapter. As part of the professional TP-Link VIGI series, it integrates seamlessly into existing systems.
Strengths & Notes at a Glance
- Pro: Highly advanced AI analysis for distinguishing between people and vehicles drastically reduces false alarms.
- Pro: Excellent night vision options with 24/7 Full-Color mode and classic infrared for clear images in all lighting conditions.
- Pro: Flexible Power Supply via PoE or 12V DC and an extremely robust IP67 metal housing for use in harsh conditions.
- Pro: Highly efficient H.265+ video compression significantly saves bandwidth and storage space without visible loss of quality.
- Note: The device does not have WLAN functionality and requires a wired Ethernet connection.
- Note: When AI analysis is activated, the WDR function is reduced from 120dB True WDR to DWDR, which may lead to slight quality reductions in extreme backlight conditions.
Specifications & Features
| Manufacturer: | TP-Link |

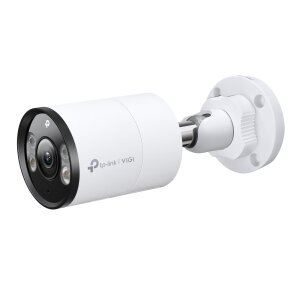

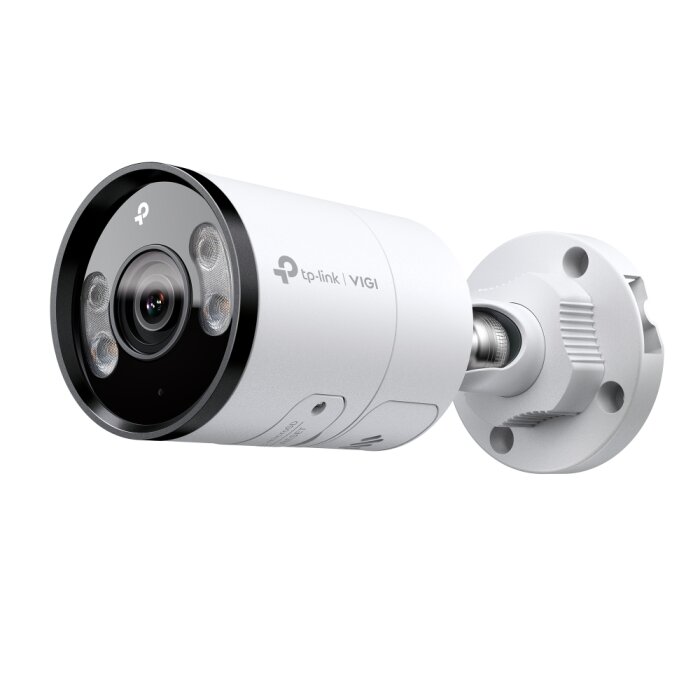

| Model: | VIGI C345 (4mm) |
| EAN: | 4895252506945 |
| Device Type: | IP Security Camera (Client) |
| Form Factor: | Bullet |
| Application Area: | Outdoor |
| Image Sensor: | 1/2.7” Progressive Scan CMOS |
| Max. Resolution: | 4 Megapixel (2688 x 1520) |
| Focal Length: | 4 mm (Fixed Focal Length) |
| Aperture: | F1.6 |
| Field of View (FOV): | 80.4° (Horizontal), 41.8° (Vertical), 98.7° (Diagonal) |
| Minimum Illumination: | 0.005 Lux (Color), 0 Lux with IR/White Light |
| IR Range: | Up to 30 Meters |
| White Light Range: | Up to 30 Meters |
| Video Compression: | H.265+, H.265, H.264+, H.264 |
| Max. Frame Rate: | Up to 30fps (at 60Hz) |
| Image Enhancement: | 120dB True WDR, 3D DNR, BLC, HLC, Smart IR |
| Audio: | Two-Way Audio with Integrated Microphone & Speaker |
| Network Port: | 1x RJ45 10/100M Ethernet Port |
| AI Analysis: | Human & Vehicle Classification |
| Smart Events: | Line Crossing, Area Entry, Intrusion, Object Detection, and more. |
| Active Defense: | Acoustic Alarm (Siren) and Light Alarm (Strobe) |
| Local Storage: | microSD Card Slot up to 256 GB (Card not included) |
| Power Supply: | 12V DC ± 5% or PoE (802.3af/at, class 0) |
| Power Consumption: | Max. 10.7 W (PoE), Max. 9 W (12V DC) |
| Protection Class: | IP67 (Dust and Waterproof) |
| Housing Material: | Metal |
| Operating Temperature: | -30 °C to 60 °C |
| Dimensions (L x W x H): | 74 × 184 × 74 mm |
| Weight: | 0.525 kg |
| API Compatibility: | ONVIF (Profile S) |
Scope of Delivery

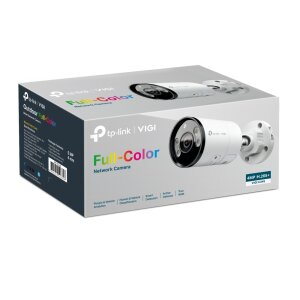

| 1 x TP-Link VIGI C345 (4mm) IP Camera |
| 1 x Quick Start Guide |
| 1 x Mounting Material (Screws, Dowels) |
| 1 x Waterproof Cable Gland |
Frequently Asked Questions (FAQ)
Can the TP-Link VIGI C345 be operated without an NVR (Network Video Recorder)?
Yes, the camera can be operated standalone. It features a microSD card slot for local recordings and can be viewed live and configured via the VIGI App or a web interface. However, for central management and longer retention periods, a VIGI NVR is recommended.
What does 'Full-Color' mean for this camera?
'Full-Color' means that the camera can deliver color images even in very low light conditions. This is achieved through a highly sensitive sensor and integrated, soft white-light LEDs that automatically turn on when needed to illuminate the scene.
Is the camera compatible with software from other manufacturers (e.g., Synology, QNAP)?
Yes, by supporting the ONVIF standard (Profile S), the camera is compatible with most NVRs and VMS systems from third-party providers that also support this standard. Basic functions such as video streaming are usually possible without issues.
How is 'Active Defense' triggered?
'Active Defense' can be configured to trigger automatically upon certain events (e.g., when a person enters a defined area). The camera then activates its integrated speaker (siren) and bright white-light LEDs (strobe) to deter intruders.
Does the camera require an internet connection to function?
No, an internet connection is not required for recording solely within a local network (e.g., to an NVR or an SD card). An internet connection is only needed for remote access via the VIGI App or the cloud, as well as for firmware updates.
What is the difference between the 2.8mm, 4mm, and 6mm variants?
The difference lies in the field of view (angle of view). The 4mm variant offers a balanced horizontal field of view of approx. 80°, ideal for monitoring driveways or medium-sized garden areas. A 2.8mm lens would have a wider angle, while a 6mm lens would have a narrower angle to display more distant objects larger.
