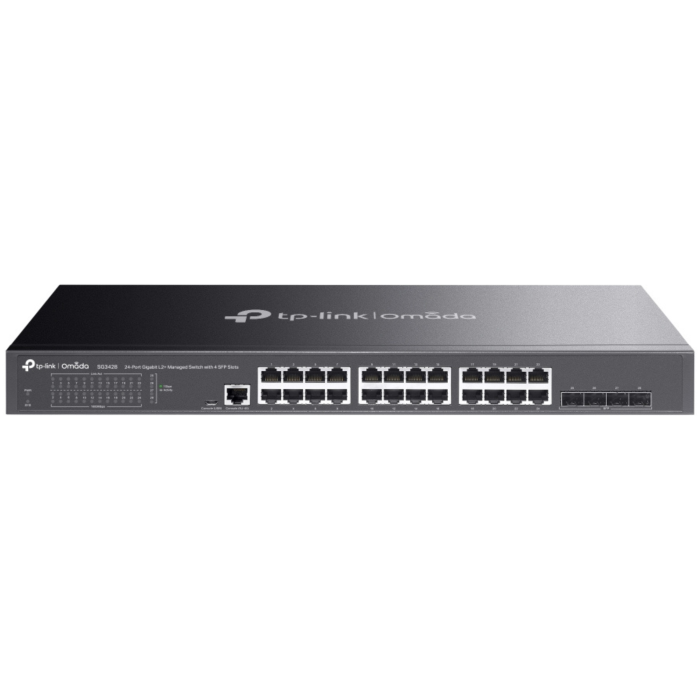

Your Network, Your Control: The TP-Link TL-SG3428
Do you want full control over your Network? The TP-Link TL-SG3428 JetStream Managed Switch makes it possible! This switch is not just a simple distributor, but an intelligent centerpiece that offers you comprehensive management options. From prioritizing data traffic (QoS) to segmenting your Network with VLANs – you have all the tools at hand to design your system efficiently and securely. The intuitive user interface ensures that even complex configurations become child's play.
Performance that Convinces: Gigabit and SFP
With 24 Gigabit RJ45 ports, the TL-SG3428 delivers impressive bandwidth for all your wired devices. Whether you're moving large files, streaming high-resolution videos, or using demanding applications – bottlenecks are a thing of the past. Additionally, the four SFP slots offer you the flexibility to use fiber optic connections. This is ideal for bridging longer distances or connecting other switches and servers at high speed. This way, your Ethernet Switch remains scalable for future requirements.
Security and Flexibility in Focus
The TP-Link TL-SG3428 is more than just fast – it's also secure. With features like Port Security, IP-MAC-Port-Binding, and ARP Inspection, it effectively protects your network from external threats and internal misconfigurations. The L2+ functionality with static routing also enables more efficient forwarding of data traffic between different VLANs, further optimizing network performance. For easy management, the switch can be seamlessly integrated into the TP-Link Omada Software Defined Networking (SDN), which allows for centralized cloud management.
Easy Installation and Robust Design

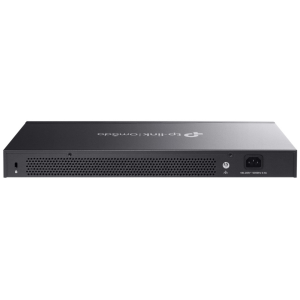

Installing the TP-Link TL-SG3428 is incredibly simple. Thanks to the standardized 19-inch rackmount design, it can be easily integrated into existing server cabinets. The robust metal construction ensures a long lifespan and reliable operation, even in demanding environments. This switch is designed for continuous operation and offers stable and uninterrupted performance you can rely on.
Strengths & Notes at a Glance
- Pro: 24x Gigabit RJ45 Ports for high bandwidth.
- Pro: 4x SFP Slots for fiber optic uplinks.
- Pro: L2+ Management with static routing.
- Pro: Omada SDN Integration for centralized cloud management.
- Pro: Comprehensive security features.
- Pro: Robust design and rackmount-capable.
- Note: PoE function is not integrated, PoE Injectors / Power Supplies may be required.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | TL-SG3428 |
| Product Type: | Managed Gigabit Switch |
| Number of RJ45 Ports: | 24x 10/100/1000 Mbps |
| Number of SFP Ports: | 4x Gigabit SFP |
| Switching Capacity: | 56 Gbit/s |
| Forwarding Rate: | 41.66 Mpps |
| MAC Address Table: | 8K |
| Jumbo Frame: | 9 KB |
| VLAN: | IEEE 802.1Q Tag-based VLAN, up to 4K VLANs |
| QoS: | 802.1p CoS/DSCP Priority |
| Security: | IP-MAC-Port-Binding, ARP Inspection, Port Security |
| Management: | Web-based, CLI, SNMP, RMON, Omada SDN |
| Operating Temperature: | 0–45 °C |
| Power Supply: | 100-240V AC, 50/60Hz |
| Mounting: | 19 Inch Rackmount |
| Dimensions (WxDxH): | 440 × 180 × 44 mm |
Scope of Delivery
| 1 x TP-Link TL-SG3428 JetStream Gigabit L2+ Managed Switch |
| 1 x Power Cord |
| 1 x Rackmount Kit |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What is the TP-Link TL-SG3428 JetStream Gigabit L2+ Managed Switch?
The TP-Link TL-SG3428 is a powerful, managed L2+ Gigabit switch with 24 RJ45 ports and 4 SFP slots, ideal for small to medium-sized businesses requiring advanced network features.
What are the main features of the TP-Link TL-SG3428?
The TL-SG3428 offers, among other things, 24 Gigabit RJ45 ports, 4 Gigabit SFP slots, L2+ features such as static routing, QoS, VLAN, IGMP Snooping, and is centrally manageable via the Omada SDN platform.
What does 'L2+ Managed Switch' mean for the TL-SG3428?
An L2+ Managed Switch like the TL-SG3428 offers advanced Layer 2 features such as VLANs and Link Aggregation, as well as basic Layer 3 features like static routing, enabling more efficient network segmentation and management.
What are the SFP ports of the TL-SG3428 used for?
The 4 SFP (Small Form-Factor Pluggable) ports of the TL-SG3428 are used for connecting fiber optic cables to bridge longer distances or ensure higher bandwidth to other network devices, e.g., as uplinks to core switches or servers.
Is the TP-Link TL-SG3428 suitable for use in data centers?
The TL-SG3428 is primarily designed for enterprise networks, offices, and campus environments. For large data centers with very high demands on port density and advanced Layer 3 features, more specialized switches might be better suited, but it can certainly be used for smaller server rooms or edge applications.
How is the TP-Link TL-SG3428 managed?
The TL-SG3428 can be managed via a Web GUI, CLI (Command Line Interface), or centrally via the TP-Link Omada SDN platform, which allows for easy configuration and monitoring of multiple devices.
