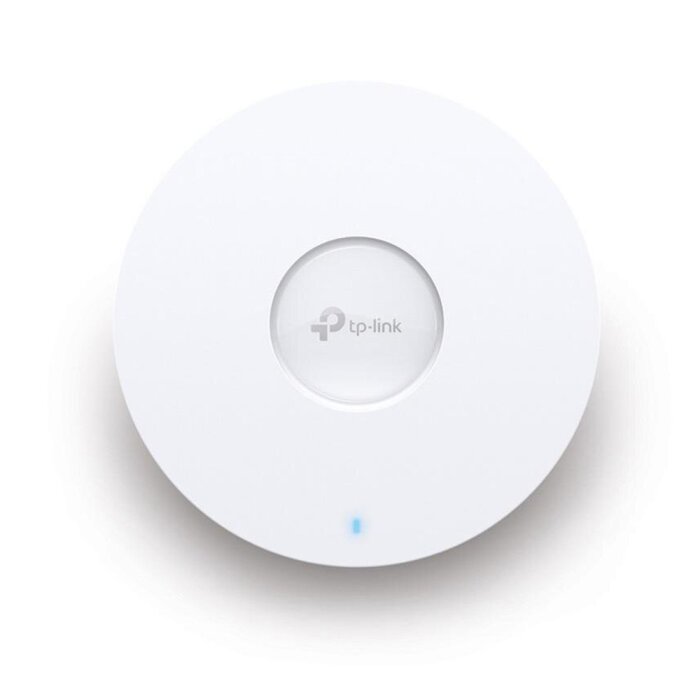

Welcome to the Future of WiFi: Wi-Fi 6 for Your Business
The TP-Link EAP610 is your ticket to the world of high-performance WiFi. With the latest Wi-Fi 6 standard (802.11ax), you catapult your Network into a new era. Technologies like 1024-QAM and OFDMA not only ensure higher speeds but, above all, drastically improved efficiency. The result: a stable and fast WiFi for many users simultaneously, even when dozens of smartphones, laptops, and IoT devices compete for bandwidth. Say goodbye to loading bars and connection drops and offer your employees or guests a first-class online experience.
Full Control: The Centrally Managed WiFi Access Point
The heart of the EAP610 is its seamless integration into the TP-Link Omada SDN platform. This Software-Defined Networking solution allows you to manage all your Network devices – from Access Points to Switches and Routers – via a single, intuitive interface. Whether you use an on-site hardware controller, software on your server, or convenient cloud access: you have full control at all times. Set up guest WiFi with Captive Portal, monitor Network status in real-time, and deploy firmware updates to all devices with just a few clicks. Scalability and easy management have never been so accessible.
Maximum Installation Flexibility Thanks to PoE+
Where is the best place for an Access Point? Usually on the ceiling or high on the wall – places where power outlets are scarce. The EAP610 elegantly solves this problem. Thanks to support for 802.3at PoE+, you can power the Access Point with both data and electricity using just a single Ethernet Cable. This greatly simplifies Cabling and gives you the freedom to mount the AP exactly where WiFi coverage is optimal. For installations without a PoE switch, a classic DC power adapter is also included. The choice is yours.
Smart Features for an Optimized Network
In addition to pure speed, the EAP610 impresses with intelligent functions that optimize your Network. Band Steering automatically directs dual-band-capable devices to the faster 5 GHz band, while Airtime Fairness ensures that older, slower devices do not slow down the entire Network. With Seamless Roaming (802.11k/v), users move seamlessly through the building as their devices are smoothly handed over to the next, stronger Access Point. All these features make the EAP610 one of the most powerful WiFi Access Points in its class.
Strengths & Notes at a Glance
- Pro: State-of-the-art Wi-Fi 6 technology with OFDMA and MU-MIMO.
- Pro: Excellent price-performance ratio for SMEs and power users.
- Pro: Highly flexible, centralized management via the Omada SDN platform.
- Pro: Supports PoE+ and also comes with a DC power adapter.
- Note: The maximum channel width in the 5 GHz band is 80 MHz, which is absolutely sufficient for most applications.
- Note: An Omada Controller (hardware, software, or cloud) is required for seamless roaming.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | EAP610 |
| EAN: | 4897098687772 |
| Device Type: | WiFi Access Point (for indoor use) |
| WiFi Standards: | IEEE 802.11ax/ac/n/g/b/a |
| Frequency Bands: | 2.4 GHz and 5 GHz (Dual-Band) |
| Max. Data Rate (5 GHz): | Up to 1201 Mbps (802.11ax, HE80) |
| Max. Data Rate (2.4 GHz): | Up to 574 Mbps (802.11ax, HE40) |
| Total Data Rate: | AX1800 (1775 Mbps) |
| WiFi Technologies: | OFDMA, MU-MIMO (2x2), 1024-QAM, Beamforming, Band Steering, Airtime Fairness, Seamless Roaming, Omada Mesh |
| Antenna Type: | Internal Omni-Directional Antennas |
| Antenna Gain: | 2x 4 dBi (2.4 GHz), 2x 5 dBi (5 GHz) |
| Transmit Power (CE): | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz, Band 1&2), < 30 dBm (5 GHz, Band 3) |
| Ports: | 1x Gigabit Ethernet (RJ-45) Port (supports PoE) |
| Power Supply: | 802.3at PoE+ or 12V DC Power Adapter |
| Max. Power Consumption (EU, V3): | 11.0 W (PoE) / 9.8 W (DC) |
| Management: | Omada SDN Controller (Hardware, Software, Cloud) or Standalone Mode via Web-Interface/App |
| WiFi Encryption: | WEP, WPA/WPA2/WPA3 (Personal/Enterprise) |
| Network Security: | Captive Portal, MAC Address Filtering, Client Isolation, SSID-to-VLAN Mapping, Rogue AP Detection |
| Number of SSIDs: | Up to 16 (8 per band) |
| Mounting: | Ceiling / Wall Mounting (kits included) |
| Dimensions (V2/V3): | 160 × 160 × 33.6 mm |
| Certificates: | CE, FCC, RoHS |
Scope of Delivery
| 1 x TP-Link EAP610 AX1800 Access Point |
| 1 x 12V DC Power Adapter |
| 1 x Ceiling/Wall Mounting Kits |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
Can the TP-Link EAP610 be operated as a standalone Access Point without a controller?
Yes, the EAP610 can be operated in 'Standalone Mode'. Configuration is then done directly via an intuitive web interface or the Omada smartphone app. An Omada Controller is not strictly necessary for basic operation.
What is the difference between versions V1, V2, and V3 of the EAP610?
The main differences lie in the physical dimensions and power consumption. Version 1 is significantly larger. Versions 2 and 3 are much more compact. Additionally, there are differences in the chipset used and the maximum power consumption, with newer versions tending to be more efficient.
Does the EAP610 support 'Seamless Roaming'?
Yes, the EAP610 supports seamless roaming (Fast Roaming according to 802.11k/v). This allows WiFi clients to move uninterrupted between multiple Access Points without losing connection. However, the use of an Omada SDN Controller is required for this function.
Do I need a PoE switch to operate the EAP610?
No, not necessarily. The EAP610 comes with its own 12V DC power adapter. However, using an 802.3at PoE+ Switch significantly simplifies installation, as power and data can be supplied to the Access Point via a single Ethernet Cable.
What does 'Omada SDN Integration' mean?
Omada SDN (Software-Defined Networking) is TP-Link's central management platform. It integrates network devices such as Access Points, Switches, and Routers into a single interface. This enables 100% centralized management, monitoring, and configuration of the entire network.
Is the EAP610 suitable for outdoor use?
No, the EAP610 model analyzed here is designed exclusively for indoor use. TP-Link offers a separate model called 'EAP610-Outdoor', which features a weather-resistant casing and is suitable for outdoor use.
