Your Command Center for the 19-Inch Rack

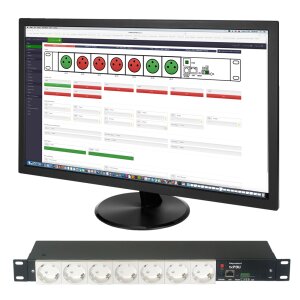

Say goodbye to rigid power strips and welcome the era of intelligent power management! The tinycontrol tcPDU is your ultimate solution for remotely controlling and monitoring devices in your 19-inch cabinets. With 7 individually switchable 230V sockets, you give power to every server, switch, or router exactly when it needs it. Whether you operate via the intuitive web interface, HTTP, SNMP, or MQTT – you have full control to optimally manage your [IT_Network].
More Than Just Power: Intelligent Monitoring and Automation
The tcPDU is far more than just a power strip. It is an intelligent monitoring system that provides you with detailed insights into your energy consumption. Measure active and reactive power, voltage, current, and total energy consumption. You can even configure up to six energy meters for specific periods to optimize peak and off-peak tariff times. Imagine your UPS reports a power outage via the logical inputs – the tcPDU then automatically shuts down your servers to prevent data loss. Or use the Watchdog function, which automatically restarts your Network devices in case of a ping loss, ensuring the availability of your services. With the integrated scheduler and event control, you can automate complex processes with ease.
Seamless Integration into Your World
Do you love Smart Home? Perfect! Thanks to comprehensive MQTT support and direct integration into Home Assistant, the tinycontrol tcPDU seamlessly integrates into your existing smart home systems. Control and monitor your rack devices and sensors via a central platform that extends far beyond the boundaries of your rack. Whether you want to check the temperature in the server room or switch the lighting in the rack – everything is possible.
Security and Reliability for Your Devices
Your valuable hardware deserves the best protection. The tinycontrol tcPDU is equipped with robust overload protection (10A fuse) and surge protection to protect your connected devices from unforeseen power surges. The integrated Watchdog function also ensures high availability by intervening independently in case of problems and bringing your devices back online. This way, you can rest assured that your infrastructure runs stably and securely.
Strengths & Notes at a Glance
- Pro: Comprehensive remote control and monitoring options via web interface, HTTP, SNMPv2/v3, and MQTT for flexible integration.
- Pro: Advanced automation functions such as Watchdog, Scheduler, and Events enable complex tasks.
- Pro: Integrated sensor support for up to 8 1-Wire temperature sensors, I2C temperature/humidity sensors, and two logical inputs, combined with detailed energy monitoring.
- Note: The maximum total load for the entire device is 10A (AC1) or 0.75kW (AC3), not per socket.
- Note: The free MQTT Service from tinycontrol (mqtt.ats.pl) has certain limitations for self-use, which may require a dedicated MQTT server.
Specifications & Features
| Manufacturer: | tinycontrol |
| Model: | tcPDU |
| Product Type: | Managed Power Distribution Unit (PDU) |
| Form Factor: | 19-Inch Rack |
| Number of Sockets: | 7 (individually switchable) |
| Max. Total Load: | 10A (AC1), 0.75kW (AC3) |
| Security: | Overload Protection (10A fuse), Surge Protection |
| Interfaces: | Ethernet (RJ45) |
| Management Protocols: | HTTP, SNMPv2/v3, MQTT |
| Sensor Connections: | 1-Wire (up to 8x Temp.), I2C (Temp./Humidity), 2x Logical Inputs |
| Functions: | Energy Consumption Measurement, Watchdog, Scheduler, Events, Web Interface |
| Supported Sensors: | DS18B20 (1-Wire), AM2301B (I2C) |
| Compatibility: | Home Assistant (via MQTT) |
| Application Area: | Server Rooms, Network Cabinets, Smart Home/Building Automation |
Scope of Delivery
| 1 x tinycontrol tcPDU |
Frequently Asked Questions (FAQ)
What is a tinycontrol tcPDU?

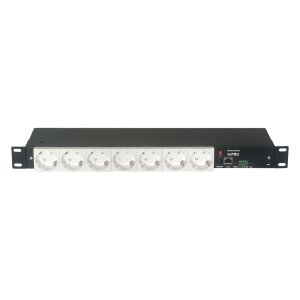

The tinycontrol tcPDU is your manageable Power Distribution Unit (PDU) in the 19-inch rack standard. It is equipped with 7 individually switchable 230V outlets and serves you for remote control and monitoring of your connected devices.
How many outlets does the tinycontrol tcPDU have and are they individually switchable?
Your tinycontrol tcPDU has 7 outlets. All of them can be managed and switched independently via HTTP, SNMP, or MQTT, as well as via a web interface.
Which sensors can be connected to the tinycontrol tcPDU?
You can connect 1-Wire temperature sensors (up to 8 DS18B20), I2C temperature and humidity sensors (e.g., AM2301B), as well as two logical inputs for 2-state sensors (e.g., reed contacts for door opening or mains voltage sensors) to your tcPDU.
Can the tinycontrol tcPDU measure energy consumption?
Yes, your tcPDU features an energy monitor that displays the current mains voltage, current, active/reactive power, and the calculated total energy consumption. You can also record energy for up to six meter fields at specific times.
Which protocols does the tinycontrol tcPDU support for remote control?
Your tinycontrol tcPDU supports HTTP, SNMPv2/v3, and MQTT protocols for your remote control and management.
What is the Watchdog function of the tinycontrol tcPDU?
The Watchdog function of your tcPDU monitors configured IP addresses. If a ping response is not received, it can automatically reset the assigned Network outlets to ensure the availability of your network devices.
