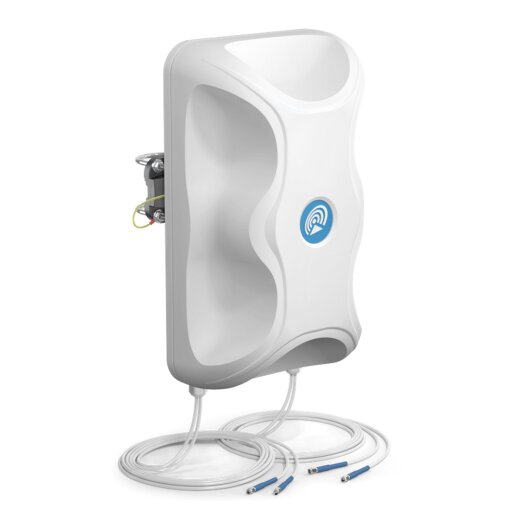

QuWireless QuPanel AP5G4-G 5G Panel Antenna | Global, 7dBi, 4x4 MIMO, IP67, 5m / SMA

The QuPanel AP5G4-G antenna from the manufacturer QuWireless is a 4x4 MiMo antenna and specifically designed for use as a 5G or 4G directional outdoor antenna. The antenna is primarily designed for 5G / 4G / 3G / 2G devices that require highly efficient connections and covers many 4G and 5G bands, including the new extended band 71. In principle, the directional antenna can be used for applications from 617 to 6000 MHz. The mounting bracket allows the antenna to be installed on buildings (mast or wall) as a client antenna. The enclosure of the QuPanel antenna is absolutely weatherproof (IP67) and is specially designed for outdoor use. The antenna has four 5m long antenna cables of type LMR195 with SMA connectors. This means that the antenna can be operated directly on all common 4G or 5G routers with an external antenna connection.
ART7350 5905868600551 AP5G4-G
224,99 €
incl. 19% VAT , plus shipping costs (Standard)
pcs
  • Available immediately
  • Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)
Description

The QuPanel AP5G4-G antenna from the manufacturer QuWireless is specifically designed for use as a 5G or 4G directional outdoor antenna. The antenna is primarily designed for 5G / 4G / 3G / 2G devices that require highly efficient connections and covers many 4G and 5G bands, including the new extended band 71. In principle, the directional antenna can be used for applications from 617 to 6000 MHz.

The QuPanel AP5G4-G antenna from the manufacturer QuWireless is a 4x4 MiMo antenna. The enclosure of the QuPanel antenna is absolutely weatherproof (IP67) and is specially designed for outdoor use. This allows you to use the QuPanel AP5G4-G antenna even in extreme weather conditions. That antenna is predicted to be installed on the buildings (on the pole or on the wall).

The antenna has four 5m LMR195 antenna cables with SMA male connectors. This allows the antenna to be operated directly on all common 4G or 5G routers with an external antenna connection.



Technical Data:

Manufacturer / Model:QuWireless / QuPanel AP5G4-G
Type of Antenna:4x4 MiMo Directional Antenna
Frequency:617 - 960 MHz
1700 - 2700 MHz
3300 - 4600 MHz
4700 - 6000 MHz
Gain:6dBi
7dBi
7dBi
5.5dBi
VSWR:max. 3.0
Polarisation:Dual X-Pol
Beamwidth:80° Horizontal
80° Vertical
Impedance:50 Ohm
Material:ABS, aluminum, PTFE, Fiberglass
Appliance:Indoor / Outdoor (IP67 Rated)
Temperature Range (Operating):-40° to 75° C
Dimensions:48.6 x 29.2 x 10.5 cm
Weight:2.8 kg


Scope of delivery:

1 x QuWireless QuPanel AP5G4-G 4x4 MIMO Antenna
1 x Mounting Equipment


Write the first review for this item and help others make a purchase decision!

There are no reviews yet.

Technical Datasheet
