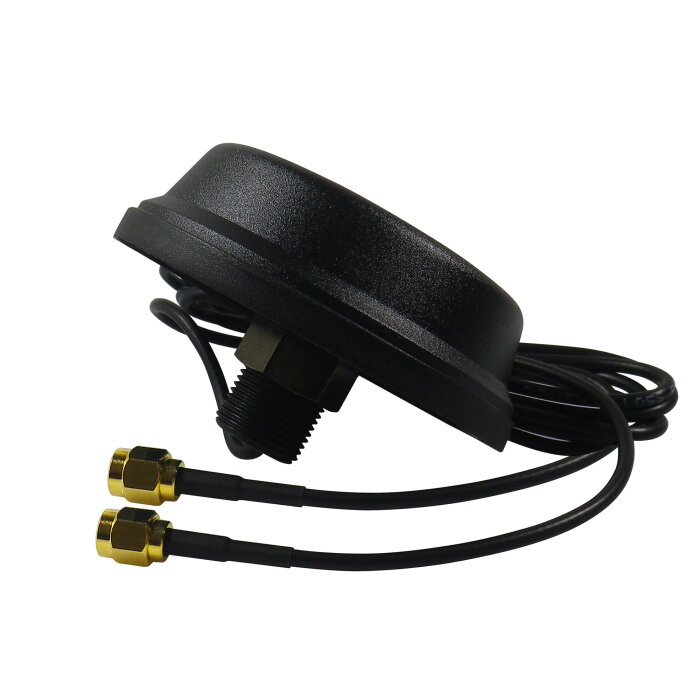

Built for Extremes: Your IP65 Antenna for Any Weather
If your application needs to function reliably, whether in ice, rain, or dust, this Antenna is your first choice. The robust IP65 Enclosure reliably protects the internal technology from dust and strong water jets. An additional rubber lip at the base ensures a clean seal at the mounting hole. Combined with the extreme operating temperature range of -40°C to +80°C, this Antenna is perfectly suited for demanding use in vehicles, outdoor terminals, or industrial facilities.
Maximum Data Rate: Unleash Full 2x2 MIMO Power
Modern 4G Routers utilize 2x2 MIMO technology to maximize connection speed and stability. This JARFT Antenna has been precisely developed for that. With two integrated antenna elements and two separate 30 cm connection cables with SMA connectors, you utilize the full potential of your device. The result is noticeably higher data throughput and a connection you can rely on even with fluctuating reception. A perfect Omni-Directional Antenna for Teltonika 4G / 5G Routers and other professional gateways.
360° Reception Without Compromise: Mount and Forget
Forget the complicated and time-consuming alignment of directional Antennas. As an omni-directional antenna, this model receives signals from all directions (360°). This makes installation incredibly easy and flexible. No matter where the nearest transmission mast is – you simply mount the antenna in the optimal position, connect the cables, and immediately benefit from a better signal. Ideal for mobile applications or locations where fixed alignment is not possible.
The Compact Solution for IoT, M2M, and Industry
In many M2M and IoT projects, space is limited. With a height of only 8 cm and a width of 4.5 cm, this compact 4G Antenna for IoT Gateway applications is predestined. It can be discreetly installed on machines, in control cabinets, or on vending machines, without being conspicuous or disruptive. The straightforward screw-through mounting ensures a firm and permanent hold. This way, you easily and efficiently equip your devices with a stable mobile connection.
Strengths & Notes at a Glance
- Pro: Extremely robust and industrial-grade thanks to IP65 and wide temperature range (-40°C to +80°C).
- Pro: Compact and discreet design, ideal for discrete installation in Enclosures or on machines.
- Pro: True 2x2 MIMO support for higher data rates and a more stable connection.
- Pro: Flexible and easy installation due to 360° omni-directional characteristic and simple screw mounting.
- Note: The low gain of max. 4 dBi is intended for stabilization, not for reception in extremely weak signal areas.
- Note: The short 30 cm cables require close placement to the end device or the use of high-quality extension cables.
Specifications & Features
| Manufacturer: | JARFT |
| Model: | Multiband 4G Omni-Directional Antenna |
| HAN / MPN: | GPM-14-BE-174-30CM-0102 |
| EAN: | 4251028604312 |
| Antenna Type: | Omni-Directional Antenna |
| Technology: | 2x2 MIMO |
| Supported Frequency Bands: | 800 MHz, 1800 MHz, 2600 MHz (4G) |
| Gain: | 1 to 4 dBi |
| Impedance: | 50 Ohm |
| VSWR: | max. 1.8 |
| Polarization: | Vertical (Linear) |

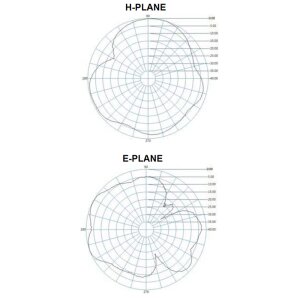

| Horizontal Beamwidth: | 360° |
| Vertical Beamwidth: | 360° |
| Connectors: | 2x SMA Male |
| Number of Cables: | 2 |
| Cable Length: | 30 cm |
| Cable Type: | RG-174 |
| Mounting Type: | Screw Mounting (Panel Mount) |
| Mounting Thread: | 2.5 cm Plastic Thread with Lock Nut |
| Application Area: | Indoor & Outdoor |
| Protection Class: | IP65 (dustproof, protected against jet water) |
| Special Feature: | Rubber lip on housing edge for sealing |
| Housing Material: | Robust Plastic |
| Color: | Black |

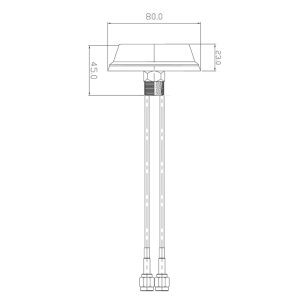

| Dimensions (Housing): | 4.5 cm x 8.0 cm x 4.5 cm |
| Weight: | approx. 80 g |
| Operating Temperature: | -40°C to +80°C |
Scope of Delivery
| 1 x JARFT Multiband 4G Omni-Directional Antenna 4dBi with 2x 30cm Cables & SMA Connectors |
Frequently Asked Questions (FAQ)
What devices is this antenna specifically designed for?
You can perfectly use this antenna for M2M (Machine-to-Machine) and Internet of Things (IoT) applications. It's ideal for your 4G Routers, gateways, control computers, or sensors installed in vending machines, vehicles, or control cabinets that require a stable mobile Network connection. This is a great M2M / IoT Antennas - 4G, 5G, WiFi solution.
Do I need to align the antenna with a cell tower?
No, that's the big advantage for you. As an Omni-Directional Antenna, it receives signals from all directions (360°). So, you don't need to search for a cell tower and precisely align the antenna with it. Simply mount it, connect it, and you're done.
Can I really mount the antenna outdoors in the rain?
Yes, absolutely. The antenna is IP65 certified. This means it's completely dust-tight and protected against strong jets of water. The additional rubber lip on the base further seals your mounting hole, making it perfect for permanent outdoor use.
My router has two antenna ports. Do I connect both cables?
Absolutely! That's exactly what this antenna is designed for. To utilize the full performance of 2x2 MIMO technology for higher speed and stability, you must screw both SMA connectors to the corresponding ports on your 4G Router. This is common for many 4G / LTE Outdoor Antennas and 4G / LTE Indoor Antennas.
Is a 4dBi reception gain sufficient if I have almost no signal?
The 30 cm cables are too short for my project. Can I simply extend them?
Yes, you can extend the Antenna Cables with suitable SMA extensions. But be careful: every additional Cable causes signal attenuation. Therefore, only use extensions that are absolutely necessary and ensure high quality to avoid losing the antenna gain. You might also consider Coaxial Pigtails or Coaxial Adapters for specific needs.
