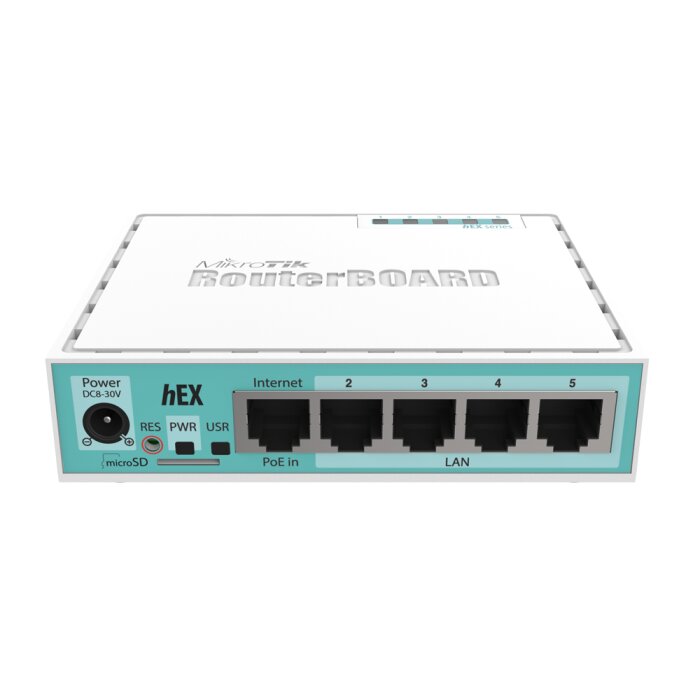

Your Network, Your Rules: The hEX RB750Gr3
No more compromises. The MikroTik hEX RB750Gr3 is no ordinary router – it's your command center for a stable and high-performance Network. Thanks to the extremely powerful RouterOS operating system, you have full control over every aspect of your data traffic. Whether you want to create complex firewall rules, set up VLANs for different areas, or prioritize the traffic of your devices – this MikroTik Router makes it possible. It is the first choice for tech enthusiasts and small businesses looking for a professional, wired Network foundation.
Performance You Can't Hear: Compact & Passively Cooled
Performance doesn't have to be loud. The RB750Gr3 comes in a compact, robust housing and operates absolutely silently thanks to its passive cooling concept. This makes it ideal for use in the office, in the technical cabinet, or directly at the workstation. Despite its small size, it is a powerhouse that functions as the central point of your Network. Simply add dedicated WiFi Access Points to achieve first-class WiFi coverage, or expand the number of ports with an additional Ethernet Switch.
Secure Connections Made Easy: VPN Power Thanks to Hardware Acceleration
Secure access to your Network on the go? For the hEX RB750Gr3, that's an easy exercise. Thanks to its dedicated hardware acceleration for IPsec encryption, it achieves a VPN throughput of an impressive 470 Mbps. This allows you to build stable and lightning-fast VPN tunnels to your home office or corporate Network without affecting CPU performance for other tasks. This way, your data remains secure, no matter where you are.
More Than Just Routing: USB, microSD, and PoE Flexibility
The hEX proves that flexibility is in the details. The integrated USB 2.0 port can be used in many ways – connect a 4G modem for a fail-safe internet connection or use an external hard drive as a small Network storage. The microSD slot provides additional storage for logs or configurations. A special highlight is the Power Supply: You can operate the router either via the included power adapter or power it directly via the first Ethernet port with Passive PoE, which greatly simplifies installation in hard-to-reach places.
Strengths & Notes at a Glance
- Pro: Outstanding price-performance ratio with professional features like dual-core CPU and IPsec acceleration.
- Pro: Extreme configurability and flexibility through the powerful RouterOS for every conceivable Network scenario.
- Pro: Compact, robust, and absolutely silent construction thanks to fanless design.
- Pro: Flexible Power Supply via DC power adapter or Passive PoE for easy installation.
- Note: The enormous functional diversity of RouterOS requires familiarization time and is demanding for Network beginners.
- Note: As a pure Ethernet router, it absolutely requires a separate Access Point for a WLAN Network.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | hEX / RB750Gr3 |
| EAN: | 4752224002761 |
| Product Category: | Wired Ethernet Router |
| CPU: | MediaTek MT7621A |
| CPU Architecture: | MMIPS |
| CPU Cores: | 2 |
| CPU Threads: | 4 |
| CPU Clock Frequency: | 880 MHz |
| Switch Chip Model: | MT7621A |
| RAM: | 256 MB |
| Storage (Flash): | 16 MB |
| Storage Type: | FLASH |
| Hardware Acceleration: | IPsec (~470 Mbps) |
| Gigabit Ethernet Ports: | 5x 10/100/1000 Mbit/s RJ45 |
| USB Port: | 1x USB Type A (Full Size) |
| USB Standard: | USB 2.0 |
| Maximum USB Current: | 1 A |
| Memory Card Slot: | 1x microSD |
| WLAN Capabilities: | Not available |
| Operating System: | MikroTik RouterOS |
| RouterOS License: | Level 4 |
| Number of DC Inputs: | 2 (DC Jack, PoE-IN) |
| Input Voltage (DC): | 8 - 30 V |
| PoE Input: | Yes, on Port 1 |
| PoE Type: | Passive PoE |
| Input Voltage (PoE): | 8 - 30 V |
| Max. Power Consumption: | 10 W |
| Max. Power Consumption (without peripherals): | 5 W |
| Included Power Adapter: | 24V / 0.38A |
| Dimensions: | 113 x 89 x 28 mm |
| Cooling: | Passive (fanless) |
| Certifications: | CE, EAC, ROHS |
| Tested Ambient Temperature: | -40°C to 60°C |
| MTBF: | approx. 100,000 hours at 25°C |
| Onboard Monitoring: | PCB Temperature, Voltage |
| Special Features: | Beeper, Mode Button, USB Power Reset |
Scope of Delivery
| 1 x MikroTik hEX (RB750Gr3) |
| 1 x Power Adapter (24V, 0.38A) |
Frequently Asked Questions (FAQ)
Can I use the MikroTik RB750Gr3 as a regular home router?
Yes, but it is intended for technically proficient users. It offers far more possibilities than a standard consumer router, but also requires manual configuration for many functions. For a WiFi Network, an additional WiFi Access Point is needed.
Does the hEX RB750Gr3 support VPN connections?
Yes, absolutely. Thanks to its powerful CPU and hardware acceleration for IPsec, it is very well suited as a VPN gateway for secure connections to home or business Network, achieving high throughput rates.
What does "RouterOS Level 4 License" mean?
The Level 4 license is a software license for the MikroTik operating system. It unlocks most functions relevant for small to medium-sized Networks, including modes for WiFi Access Points, Bridge, and Station, as well as full support for routing protocols.
Can I connect an external hard drive to the USB port?
Yes, the USB port can be used for additional storage (e.g., for log files, backups, or as a small Network storage via SMB) or for connecting a 3G/4G modem as a backup internet connection.
Is the router suitable for Gigabit internet connections?
Yes, thanks to its powerful CPU and the Gigabit Ethernet Switch ports, the RB750Gr3 can easily handle the full throughput of Gigabit internet connections, including complex firewall rules and routing tasks.
How do I reset the router to factory settings?
You must hold down the reset button while connecting the device to the Power Supply and wait until the USR LED starts to blink. A simple press during operation is not sufficient.
