Your Network Upgrade: Why the hEX E50UG is the Right Choice

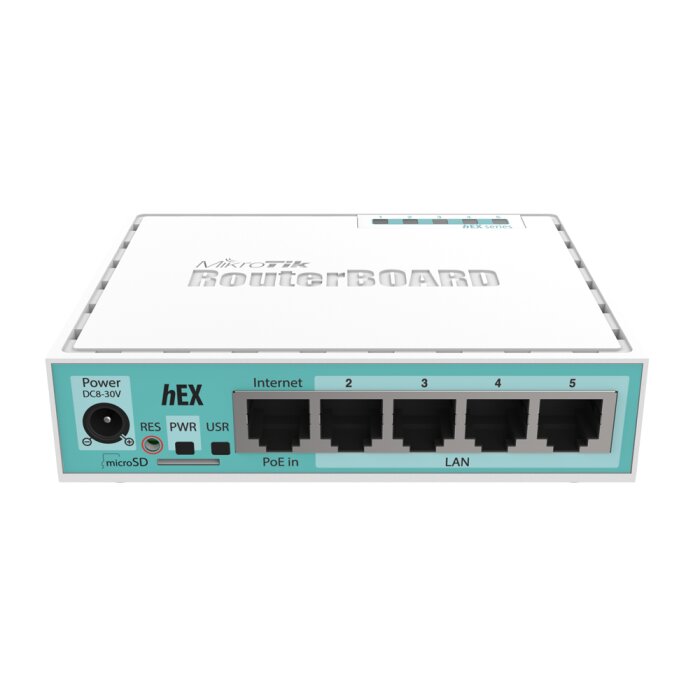

The MikroTik hEX refresh E50UG is more than just a Router – it's a statement. A statement for a stable, fast, and absolutely controllable Network. While consumer devices are often overloaded with unnecessary features and buckle under high load, this wired Gigabit Router focuses on the essential: pure performance. With its modern ARM architecture and doubled RAM compared to its predecessor, it is the perfect hub for technically savvy users, small offices, and anyone who values reliability above all else. This special MikroTik Router is the ideal basis for expanding your Network with dedicated components like WiFi Access Points.
RouterOS: The Control Center for Professionals
The heart of the hEX E50UG is the legendary MikroTik RouterOS v7 with a Level 4 license. Forget simple web interfaces with limited options. RouterOS provides you with tools otherwise only found in enterprise environments. Configure complex firewall rules, set up secure VPN tunnels for your home office (IPsec, WireGuard, OpenVPN), segment your Network with VLANs, or prioritize important data traffic with Quality of Service (QoS). The learning curve may be steeper, but the reward is a Network that functions exactly to your specifications – secure, fast, and transparent.
Built for Eternity: Robustness and Flexibility
A Router should work unobtrusively in the background, and for years. The hEX E50UG was designed precisely for this. The housing is completely fanless, which not only makes it absolutely silent but also eliminates a potential source of failure. The impressive operating temperature range of -40°C to 70°C shows that this device works reliably even under extreme conditions. Another highlight is the dual Power Supply: you can either use the included power adapter or power the Router via Passive PoE on Port 1. This creates enormous flexibility in choosing the installation location, as you are not dependent on a power outlet in the immediate vicinity and can use suitable PoE Injectors / Power Supplies.
More than just Routing: The hEX's USB Port
The integrated USB 2.0 port significantly extends the Router's functionality. Use it to connect an external data storage device and share it on the Network. However, the most exciting possibility is connecting a USB 4G modem. This allows you to set up a second, independent internet connection as a failover. If your primary DSL or fiber optic line fails, the hEX E50UG automatically switches to the mobile connection, keeping your Network online. A feature that is indispensable in many professional setups, similar to dedicated Teltonika 4G / 5G Routers.
Strengths & Notes at a Glance
- Pro: Exceptional price-performance ratio with over 100% more performance than its predecessor.
- Pro: Extremely flexible and powerful RouterOS (Level 4 license) for full Network control.
- Pro: High reliability due to fanless design, wide temperature range, and high MTBF.
- Pro: Compact design and dual Power Supply options (DC jack & Passive PoE).
- Note: No integrated WiFi. The device is a pure wired Router and requires external Access Points for a wireless Network.
- Note: Configuring RouterOS requires Network knowledge and has a steep learning curve for beginners.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | hEX refresh (E50UG) |
| EAN: | 4752224009616 |
| Product Code: | E50UG |
| Device Type: | Wired Gigabit Router |
| CPU Model: | EN7562CT |
| CPU Architecture: | ARM 32bit |
| CPU Cores: | 2 (Dual-Core) |
| CPU Clock Frequency: | 950 MHz |
| RAM: | 512 MB DDR3 |
| Storage: | 128 MB NAND |
| Ethernet Ports: | 5 x 10/100/1000 Mbit/s Gigabit Ethernet (RJ-45) |
| Switch Chip Model: | EN7523 |
| IPsec Hardware Acceleration: | Yes |
| Max. Data Throughput (Routing, 1518 Byte): | Up to 3646.6 Mbps |
| Max. Data Throughput (Bridging, 1518 Byte): | Up to 4132.4 Mbps |
| USB Ports: | 1 x USB 2.0 Type A |
| Max. USB Power Output: | 1A |
| USB Power Reset: | Yes |
| Number of DC Inputs: | 2 |
| Input 1 (DC Jack): | 12-28 V |
| Input 2 (PoE-IN): | Passive PoE on Port 1 (12-28 V) |
| Max. Power Consumption: | 10 W |
| Power Consumption (without peripherals): | 4 W |
| Dimensions: | 113 x 89 x 28 mm |
| Cooling: | Passive (fanless) |
| Protection Class: | IP20 |
| Tested Ambient Temperature: | -40°C to 70°C |
| MTBF (at 25°C): | approx. 100,000 hours |
| Operating System: | MikroTik RouterOS v7 |
| RouterOS License Level: | 4 |
| Certifications: | CE, EAC, ROHS |
Scope of Delivery
| 1 x MikroTik hEX refresh (E50UG) |
| 1 x Power Adapter (24 V, 0.38 A) |
Frequently Asked Questions (FAQ)
Is the MikroTik hEX E50UG suitable for a Gigabit internet connection?
Yes, absolutely. Thanks to its powerful dual-core CPU and Gigabit Ethernet ports, this MikroTik Router can fully utilize the data throughput of a Gigabit line. Lab tests show routing performance of over 1.4 Gbit/s, which is more than sufficient for most Gigabit connections and your overall Network.
What is the main difference compared to the predecessor model (RB750Gr3)?
The hEX refresh (E50UG) is a significant upgrade. It features a more modern ARM CPU, twice as much RAM (512 MB instead of 256 MB), and significantly more storage (128 MB instead of 16 MB). This results in a performance increase of 86% to 134% depending on the configuration, making it a powerful MikroTik Router.
Can I build a WiFi Network with this router?
No, not directly. The E50UG does not have built-in WiFi modules. To use WiFi, you must connect an external WiFi Access Point to one of the Ethernet ports. The MikroTik Router can then centrally manage these WiFi Access Points for your Network.
Who is this MikroTik Router the right choice for?
This MikroTik Router is ideal for tech-savvy home users (SOHO), small offices, and administrators who need a stable, secure, and highly customizable wired Network. It is perfect as an EdgeRouter, Firewall, or VPN-Gateway, enhancing your overall Network infrastructure.
Does the USB port also support 4G Modems?
Yes, the USB port of the hEX E50UG can be used to connect a compatible USB 4G Modem. This allows for the configuration of a backup internet connection (failover) in case the primary connection fails, providing reliable Network connectivity.
What does 'RouterOS License Level 4' mean?
Level 4 is a fully functional license for wired MikroTik Routers. It allows unlimited use of VPN tunnels, VLANs, and Firewall rules. Restrictions mainly concern functions such as the number of Hotspot users, which are irrelevant for this type of device in your Network.
Homepage: http://www.mikrotik.com/
