Your Springboard into the 400 Gigabit Era

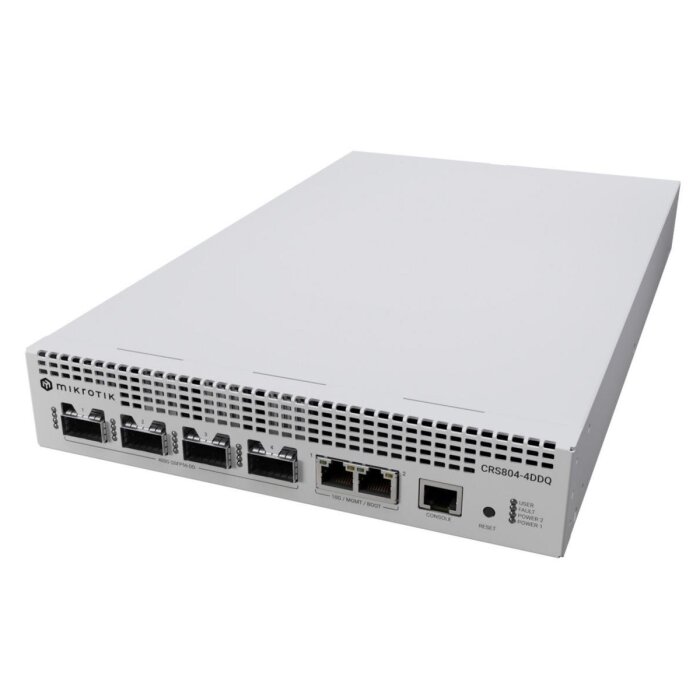

In today's data-intensive world, traditional Network infrastructures quickly reach their limits. Applications such as artificial intelligence, machine learning, GPU clusters, and all-flash storage fabrics require bandwidth and latency that can hardly be managed with older 10G or 100G solutions. Bottlenecks slow down productivity and severely restrict the scalability of your IT environment. The MikroTik CRS804-4DDQ-hRM is precisely the answer to these challenges. This 400G Cloud Router Switch is a masterpiece of engineering that enables you to cost-effectively and practically enter the 400 Gigabit speed. With its four 400G QSFP56-DD ports and two additional 10 Gigabit Ethernet ports, it offers you the necessary power and flexibility to run your high-performance applications smoothly. A MikroTik that exceeds your expectations.
Maximum Flexibility: Scale Your Network Intelligently
Many 400G Switches force you into an immediate full expansion. The MikroTik CRS804-4DDQ-hRM thinks differently. Thanks to the flexible Breakout function of the QSFP-DD ports, you can split each port into multiple lower speeds – for example, into 2x 200G, 4x 100G, 8x 50G, or even 10G links. This allows you a gradual migration and scaling of your existing Network without having to replace the switch immediately. You can start with lower speeds today and switch to higher ones as needed. A cost-effective 'Future-Proofing' strategy that saves your budget and offers you maximum adaptability.
Performance Without Compromise: For the Most Demanding Workloads
The MikroTik CRS804-4DDQ-hRM is not only predestined for AI and Machine Learning clusters or high-performance storage fabrics. It also excels in specific applications such as media production, where uncompressed 8K video streaming and editing require enormous, low-latency data volumes. Even in scientific simulations that demand the highest data integrity and speed, this high-speed aggregation switch is the ideal choice. It offers you predictable, low latency and full Wire-Speed Performance to avoid bottlenecks and support your critical workloads without compromise. It is the perfect Data Center Switch for demanding environments.
More Than Just a Switch: The Power of RouterOS v7
Unlike many pure Layer 2 switches designed for 400G, the MikroTik CRS804-4DDQ-hRM runs on the powerful RouterOS v7 (license level 6). This means for you: You not only get advanced switching functions but also comprehensive routing capabilities. This opens up possibilities for more complex network architectures, extended traffic control, and seamless integration into existing MikroTik ecosystems. These extended routing functions go beyond the capabilities of many other Ethernet Switch solutions and offer significant added value for specific use cases such as Edge Compute or Service Provider Backbones. This is powered by an efficient ARM64 CPU.
Strengths & Notes at a Glance
- Pro: Extreme bandwidth density and flexibility: Offers four 400G QSFP56-DD ports in a compact 1U Rackmount form factor, which can be split into multiple 200G, 100G, 50G, 40G, 25G, 10G, 5G, 2.5G or 1G links through Breakout functions. This allows for high adaptability to existing and future network requirements and protects investments.
- Pro: High reliability and fail-safety: Equipped with dual, hot-swap redundant power supplies and hot-swap fans, ensuring uninterrupted operation in critical environments and enabling maintenance without downtime.
- Pro: Cost-efficiency and performance: Offers 400 Gigabit switching at a very competitive price compared to other 400G solutions, combined with the full functionality of RouterOS v7 for advanced traffic control, routing, and management. It delivers predictable, low latency and Wire-Speed Performance.
- Note: Not suitable for general Access Layer: The device is primarily designed for core, aggregation, and special high-performance applications such as AI clusters or Storage Fabrics. It is not an access switch for end-users and only has two 1/10G Ethernet ports, which are mainly intended for management or lower uplinks.
- Note: Special optics and cables required: To fully utilize the 400G ports or use the Breakout functions, special QSFP-DD transceivers and corresponding cables (e.g., breakout cables) are required, which may incur additional costs and are not included in the scope of delivery.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | CRS804-4DDQ-hRM (CRS804 DDQ) |
| Architecture: | ARM 64bit |
| CPU: | AL52400 |
| CPU cores: | 4 |
| CPU nominal frequency: | 2000 MHz |
| Switch chip model: | Marvell 98DX7335 |
| RouterOS license level: | 6 |
| Operating system: | RouterOS v7 |
| RAM size: | 4 GB DDR4 |
| Storage size: | 512 MB NAND |
| 1G/10G Ethernet ports: | 2 (supports 10M/100M/1G/10G, marked as MGMT/BOOT) |
| 400G QSFP56-DD Ports: | 4 (each port 8 data lanes, breakout to 1G/2.5G/5G/10G/25G/50G/100G/200G) |
| Console port: | 1x RJ45 (115200 bits/s) |
| Number of AC inputs: | 2 (redundant, hot-swappable) |
| AC input range: | 100-240 V, 50-60 Hz |
| Max. power consumption (without attachments): | 92 W |
| Max. power consumption (with attachments/full load): | 123 W |
| Cooling type: | 2 fans (hot-swappable) |
| MTBF: | Approx. 200,000 hours at 25°C |
| Tested ambient temperature: | -10°C to 60°C |
| Dimensions: | 387 x 218 x 44 mm |
| Rackmount: | 1U form factor, rackmount bracket included |
| IP protection class: | IP20 |
Scope of Delivery
| 1 x MikroTik CRS804-4DDQ-hRM Cloud Router Switch |
| 2 x Power cables |
| 1 x Rackmount bracket |
| 1 x Rackmount rear support ears |
Frequently Asked Questions (FAQ)
What is the MikroTik CRS804-4DDQ-hRM and what is it used for?
The MikroTik CRS804-4DDQ-hRM is a compact 1U 400G Cloud Router Switch that you can use for high-performance applications such as AI clusters, storage fabrics, and high-speed aggregation in data centers and Service provider backbones. It enables you to quickly transport large amounts of data.
What port types and speeds does the CRS804-4DDQ-hRM offer?
Your switch features four 400G QSFP56-DD ports and two 1G/10G Ethernet ports. The 400G QSFP56-DD ports support breakout options, allowing you to split them into multiple 200G, 100G, 50G, 40G, 25G, 10G, 5G, 2.5G, or 1G links.
What operating system runs on the MikroTik CRS804 DDQ?
Your MikroTik CRS804-4DDQ-hRM runs RouterOS v7 with a license level 6. This operating system provides you with advanced features for routing, switching, firewall, and traffic shaping.
Is the CRS804-4DDQ-hRM suitable for use in data centers?
Yes, it is specifically designed for professional use in data centers. It offers you redundant, hot-swappable power supplies and fans for high availability, a compact 1U design, efficient cooling, and low power consumption for its performance class.
Can the MikroTik CRS804 DDQ be connected to older network devices?
Yes, thanks to its flexible breakout functions, you can connect the CRS804 DDQ to devices using lower speeds like 10G, 25G, 40G, or 100G via the 400G QSFP-DD ports with the correct breakout cables. This allows for a gradual migration to higher speeds.
What CPU and how much RAM does the CRS804-4DDQ-hRM have?
Your switch is equipped with a Quad-Core ARM 64bit AL52400 CPU with a nominal frequency of 2000 MHz and features 4 GB of DDR4 RAM as well as 512 MB of NAND storage.
