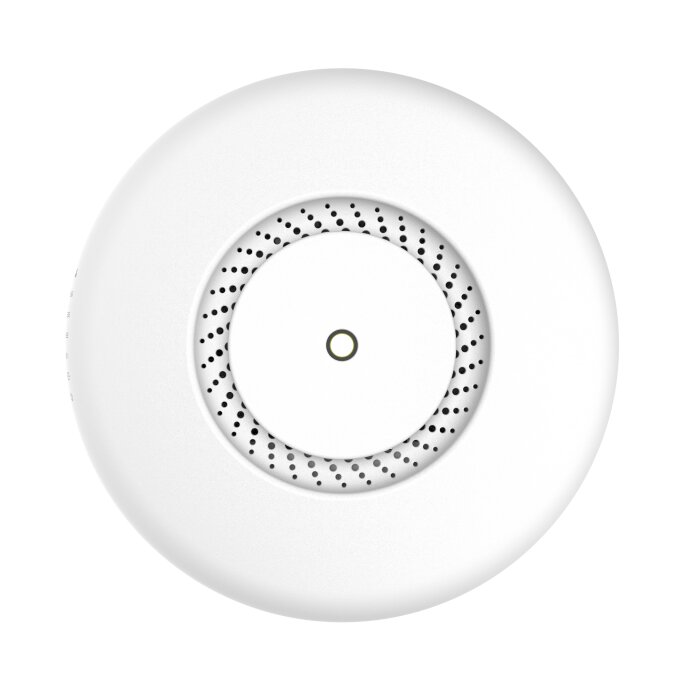

Your Upgrade for Stable WiFi in the Office and Home
The MikroTik cAP ac is more than just a simple Access Point. It's your tool for stable, fast, and absolutely reliable WiFi. Based on a powerful quad-core processor and proven Wi-Fi 5 technology, it delivers a excellent performance for numerous concurrently connected devices. Whether for video conferences in the office, streaming at home, or covering public areas – this Access Point ensures a consistent and strong Network connection exactly where you need it.
The Genius in Detail: cAP ac with PoE-Out for Maximum Flexibility
What truly sets the cAP ac apart from the competition is its second Ethernet port with passive PoE-Out. Imagine you're mounting the Access Point on the ceiling and want to install an IP Camera right next to it. No problem! You power the cAP ac via its first port with standard 802.3af/at PoE and loop the power through the second port directly to the IP Camera. This means less Cabling effort and no need for additional PoE Injectors / Power Supplies. A clean, efficient, and ingenious solution for your Network.
MikroTik RouterOS: The Ultimate Control for Network Enthusiasts
This Access Point runs on MikroTik RouterOS – an operating system renowned in the Network world for its virtually limitless possibilities. For professionals and ambitious users, this means: You have full control. Configure complex firewall rules, set up VLANs, manage bandwidth with QoS, or build a centrally managed Network with CAPsMAN. Please note: This power requires familiarization. The cAP ac is not a plug-and-play device for beginners, but a professional tool for anyone expecting more from their Network, leveraging the power of MikroTik Routers.
Thoughtful Design for Invisible Installation
MikroTik knows that aesthetics play a role. That's why the cAP ac comes with two different Enclosures – a classic round one and an inconspicuous square one. This allows it to perfectly adapt to any ceiling or wall, supported by various Mounting Systems. The LEDs are fully configurable and can be completely deactivated for use in sensitive environments such as bedrooms or hotel rooms. A central button also allows you to execute predefined scripts with a click – a well-thought-out feature for professional use.
Strengths & Notes at a Glance
- Pro: Outstanding price-performance ratio with professional features.
- Pro: Extremely flexible Power Supply thanks to 802.3af/at PoE-In and passive PoE-Out, reducing the need for separate PoE Injectors / Power Supplies.
- Pro: Endless configuration possibilities through the powerful MikroTik RouterOS, making it a top choice among MikroTik Routers.
- Pro: Discreet design with two included Enclosure variants for ceiling and wall, offering versatile Mounting Systems.
- Note: Configuring RouterOS has a steep learning curve and is not suitable for Network beginners.
- Note: WPA3 security requires a manual upgrade to RouterOS v7 and the installation of an additional package.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | cAP ac |
| Product Code: | RBcAPGi-5acD2nD |
| EAN: | 4752224003416 |
| Device Class: | Wireless Access Point |
| Architecture: | ARM 32bit |
| Chipset: | Qualcomm Atheros IPQ-4018 |
| CPU: | Quad-Core IPQ-4018 |
| CPU Clock Speed: | 716 MHz |
| RAM: | 128 MB |
| Storage: | 16 MB, FLASH |
| Hardware Acceleration: | IPsec |
| MTBF: | approx. 100,000 hours at 25°C |
| WiFi Generation: | Wi-Fi 5 (802.11ac) & Wi-Fi 4 (802.11n) |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| Combined AC Speed: | AC1200 |
| Max Data Rate (5 GHz): | 867 Mbit/s |
| Max Data Rate (2.4 GHz): | 300 Mbit/s |
| WiFi Standards (5 GHz): | 802.11a/n/ac |
| WiFi Standards (2.4 GHz): | 802.11b/g/n |
| MIMO Configuration: | 2x2 MIMO (2.4 GHz & 5 GHz) |
| Antenna Type: | Integrated Omni-Directional Antennas (360°) |
| Antenna Gain (2.4 GHz): | 2 dBi |
| Antenna Gain (5 GHz): | 2.5 dBi |
| Transmit Power (TX) 2.4 GHz: | Up to 26 dBm |
| Transmit Power (TX) 5 GHz: | Up to 26 dBm |
| Receive Sensitivity (2.4 GHz): | -100 dBm @ 1 Mbit/s, -73 dBm @ MCS7 |
| Receive Sensitivity (5 GHz): | -96 dBm @ 6 Mbit/s, -70 dBm @ MCS9 |
| Ethernet Ports: | 2x 10/100/1000 Gigabit Ethernet |
| Port 1 (Ether1): | PoE-In |
| Port 2 (Ether2): | PoE-Out (passive) |
| Power Supply (PoE-In): | 802.3af/at (Active PoE) |
| PoE-In Input Voltage: | 17 - 57 V |
| PoE-Out Output Voltage: | Up to 57 V (depending on input voltage) |
| PoE-Out Max Current: | 500 mA (at <30V), 400 mA (at >30V) |
| Max Power Consumption: | 13 W |
| Operating System: | MikroTik RouterOS |
| RouterOS License Level: | Level 4 |
| WiFi Encryption: | WEP, WPA-PSK, WPA2-PSK (WPA3 via RouterOS v7 Upgrade) |
| Dimensions (Round Enclosure): | ⌀ 136 mm, Height 30 mm |
| Dimensions (Square Enclosure): | 145 x 145 x 30 mm |
| Operating Temperature: | -40°C to 50°C |
| LED Indicators: | 7x LEDs (Power, PoE Out, E1, E2, 2G, 5G, User), configurable and switchable off |
| Certificates: | CE, FCC, IC, EAC, ROHS |
Scope of Delivery
| 1 x MikroTik cAP ac Access Point |
| 1 x Round Enclosure |
| 1 x Square Enclosure |
| 1 x Ceiling Mount |
| 1 x Screw Kit |
| 1 x Gigabit PoE Injector |
| 1 x 24V 1.2A Power Supply |
Frequently Asked Questions (FAQ)
Can the MikroTik cAP ac be used as a standalone router?
Although it can technically be configured as a MikroTik Router thanks to RouterOS, its primary and recommended function is that of a WiFi Access Point. The standard configuration is designed for AP operation, where it is connected to an existing router.
What is the advantage of the second Ethernet port with PoE Out?
The second port can directly power another device, such as an IP Camera or another WiFi Access Point, via the Ethernet Cables (passive PoE). This reduces the need for additional PoE Injectors / Power Supplies and Cabling.
Is the MikroTik cAP ac suitable for beginners?
No, not really. Configuration via the RouterOS interface requires basic Network knowledge. For users looking for a simple plug-and-play solution, the device is less suitable.
How is the cAP ac powered?
The WiFi Access Point is powered via Power over Ethernet (PoE) on the first Ethernet port. It supports the 802.3af/at standard and can alternatively be operated via the included Gigabit PoE Injector.
Does the cAP ac support WPA3 encryption?
Yes, but only after an upgrade to RouterOS Version 7 and the installation of the special 'wifi-qcom-ac' driver package. WPA3 is not available with the standard firmware.
What is the difference between the cAP ac and the cAP ax?
The cAP ac supports Wi-Fi 5 (802.11ac), while the newer cAP ax supports Wi-Fi 6 (802.11ax). Wi-Fi 6 offers higher speeds and better efficiency in environments with many devices.
