The LigoDLB 5-15ac is a versatile, very efficient, and stable 802.11ac CPE. 500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of flash memory the, LigoDLB 5-15 ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation - 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLB ac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.

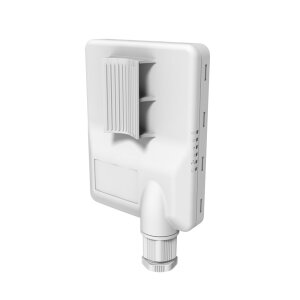

New form factorThe shape of the enclosure is now smaller, lighter but retains the IP-65 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.
Powerful OSThe LigoDLB OS is a highly functional and easy to use operating system embedded in all LigoDLB hardware devices for effortless setup and trouble free operation. High performance (500 Mbps) allows offering more bandwidth together with additional services such as VoIP and IPTV. This is possible when using LigoWave’s smart QoS mechanism and multicast traffic enhancements for triple play services. Such services are essential for all next generation service providers to complement their existing portfolios. iPoll, LigoWave’s proprietary transmission protocol, ensures smooth performance with a high number of clients even in noisy environments
Integrated surge protection3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.
Operating systemNew operating system includes all the essential features for point-to-multipoint networks. User interface is built using HTML 5 technology with responsive design. Among the new features there are IPv6 bridge and router support, SSDP and Bonjour device discovery options, flexible traffic shaping and SSTP client.
iPoll 3 – enhanced performance protocolLigoWave’s iPoll PTMP (Point to Multi-Point) proprietary protocol is an innovative solution to eliminate transmission congestion and close cluster interference created in PTMP wireless installations.
Highlights:- 500+ Mbps capacity
- High power (30 dBm) radio
- Proprietary protocol (iPoll)
- Zero loss design
- Integrated directional 15 dBi panel antenna
- Integrated surge protection
- Lightweight design
- Weather proof (IP-65 rated) design
- Free WNMS (WNMS – Wireless Network Management System)
- Responsive HTML 5 based GUI
Usage recommendation:
- PTP mode (two LigoDLB 5-15ac devices): 7 km / 4.35 mi
- PTMP mode (DLB LigoDLB 5-15ac as a client device): 5 km / 3.11 mi
Maximum throughput: 500 Mbps
Hotspot scenario support
Starting from v7.52 Infinity firmware image can be used on a LigoDLB series devices for the outdoor hotspot and other related applications. After the firmware upgrade DLB devices are converted into access points for outdoor hotspot networks and will lose the functionality of point-to-point or point-to-multipoint connectivity.
WNMSWNMS is a FREE enterprise grade Wireless Network Management System. A single software solution simplifies a large number of management and monitoring tasks for network administrators. LigoWave's comprehensive network management system supports several thousands of nodes. Multiple networks may be maintained and monitored using one server. A rich feature set helps to diagnose network problems effectively, visualize networks on a map, perform scheduled firmware upgrades automatically, track states of devices, get failure alerts, and collect statistics. The Web-based system environment supports multi-user accounts. Several administrators may manage different networks on the same server, without having access to each other’s equipment. WNMS is available as a stand-alone version for Linux and Windows servers, as a cloud-based system and as a mobile application for Android devices.
LinkCalcLigoWave's link calculator is a link planning tool available online at http://www.ligowave.com/linkcalc
Technical Data:
| Manufacturer / Product: | LigoWave / LigoDLB 5-15ac |
| Frequency Band: | 5.1-5.9 GHz |
| Antenna: | Integrated 15dBi directional dual-polarized panel |
| Polarisation: | Dual linear |
| Cross-pol Isolation: | 21dBi |
| VSWR: | max. 1.4:1 |
| H-pol beamwidth (6 dB): | 35° |
| V-pol beamwidth (6 dB): | 35° |
| Elevation beamwidth: | 35° |
| Supported WiFi Standards: | IEEE 802.11a/n/ac, iPoll 3 |
| Operation modes: | Access point (auto WDS), access point (iPoll 1/2/3), station (WDS, iPoll 1/2/3), station (ARP NAT) |
| TX Power: | max. 30dBm |
| RX Sensitivity: | min. -95 |
| TCP/IP Throughput: | 500 Mbps |
| Radio mode: | MIMO 2x2 |
| Channel Size: | 5, 10, 20, 40, 80 MHz |
| Modulation Scheme: | 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK |
| Error Correction: | FEC, LDPC |
| Networking Interface: | 1 x 10/100/1000 BASE-TX (Cat. 5, RJ-45) |
| max. Power Consumption: | 10 Watt |
| Power Input: | 12-24V passive PoE (24V PoE Injector included) |
| Appliance: | In- and Outdoor (IP65) |
| Dimensions: | 158 mm x 97 mm x 38 mm |
| Weight: | 0.185 kg |
| IP Protection Class: | IP65 |
| Operating Temperature: | -40°C to +65°C |
| Operating Humidity: | 0% to 90% (non-condensing) |
Scope of delivery:
| 1 x LigoWave LigoDLB 5-15 ac |
| 1 x 24V Passive Gigabit PoE Injector |
| 1 x Mounting Equipment |
