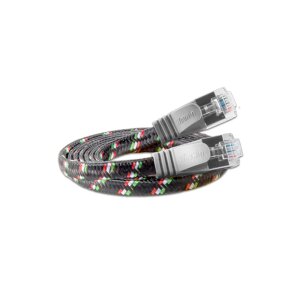

SLIM® TOUGHpatch Cord 1m: The Robust All-Rounder
One meter is the classic distance: From the computer under the table to the socket in the wall. Or from the patch panel top left to the switch bottom right.
This is exactly where the 1m SLIM® TOUGHpatch cord shows its strengths. It is long enough for almost all standard connections, but thanks to the slim design, much easier to route than rigid standard cables.
Design & Durability
The colorful nylon structure braid is not just a visual highlight that stands out from boring grey cables. It serves as a shield. Unlike cheap PVC cables, the jacket does not crack if the cable is kinked or pinched. The grey connectors with snagless boots ensure a clean connection.
Order Under the Desk
Everyone knows the "cable spaghetti" behind the PC. This cable actively helps against it: The nylon structure prevents the cable from snagging on Others. It remains flexible and can be cleanly routed in cable ducts or behind baseboards.
Detailed Technical Specifications
| General Data | |
| Length: | 1.00 Meter |
| Category: | KAT.6 (Gigabit Ethernet) |
| Cable Type: | Flat Cable with Nylon Jacket |
| Color (Look): | Colorful Nylon Structure / Grey (Boot) |
| Construction & Dimensions | |
| Cable Structure (WxH): | 6.6 mm x 2.0 mm |
| Cable Construction: | 4x2 (Twisted Pair) |
| Copper Structure: | 4x2xAWG36/7 (Stranded) |
| AWG Gauge: | AWG36 |
| Jacket Material: | PVC with reinforced Nylon jacket |
| Electrical Properties | |
| Shielding: | U/FTP shielded (Pairs in foil) |
| Wiring: | 1:1 acc. to TIA/EIA 568 B |
| Flame Retardant: | No |
| Halogen Free: | No |
| Connectors | |
| Connector 1 & 2: | RJ45 8(8) Plug |
| Strain Relief Boot: | Molded, Grey |
| Latch Protection: | Yes (Snagless) |
Scope of Delivery
| 1 x SLIM® TOUGHpatch Cord 1m (Flat/Nylon) |
