Are you facing the challenge of extending your network outdoors?
Often, extending networks into outdoor areas fails due to a lack of hardware robustness, complex power supply, and insufficient management options. Conventional switches cannot withstand extreme conditions such as humidity, dust, and temperature fluctuations, leading to failures and high maintenance costs. Furthermore, powering remote devices like outdoor Wi-Fi access points or surveillance cameras is a logistical challenge, often requiring additional cables and power adapters.
Your Solution: The Grandstream GWN7710R – Outdoor Network Power!
The Grandstream GWN7710R Outdoor PoE Switch is the answer to all these problems. It was designed from the ground up for use in the harshest conditions, offering reliable protection against dust and water thanks to its IP66-certified housing. With an impressive operating temperature range of -40°C to 60°C, it functions flawlessly even in extreme climates. The integrated PoE functionality across four ports significantly simplifies powering your end devices, as data and power are transmitted over a single Ethernet cable.
Maximum Flexibility and Performance for Your Outdoor Network

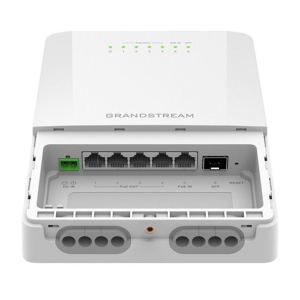

This L2 Lite Managed Switch is not only robust but also intelligent. With five Gigabit RJ45 ports and a 2.5G SFP port for fiber optic connections, you are equipped for every requirement. The PoE-In port even allows you to power the switch itself via PoE, revolutionizing installation in remote areas. Advanced management features such as VLAN support, QoS for prioritizing critical data traffic, and Storm Control guarantee optimal network performance and stability. Whether you want to mount it on a pole, a wall, or a DIN rail – the GWN7710R flexibly adapts to your specific conditions.
Secure and Scalable Networks Made Easy
With the Grandstream GWN7710R, you create a scalable, secure, and high-performance network for any outdoor area. Intuitive management via the web user interface, the GWN Manager, or the GDMS Cloud platform makes configuration and monitoring a breeze. Benefit from features like DHCP Snooping and Port Security, which protect your network from unauthorized access. Invest in a future-proof solution that offers you excellent outdoor connectivity not only today but also tomorrow.
Technical Specifications
| Model: | Grandstream GWN7710R |
| Device Type: | Outdoor L2 Lite Managed PoE Switch |
| Number of Ports: | 6 (5x Gigabit RJ45, 1x 2.5G SFP) |
| RJ45 Ports: | 5x 10/100/1000 Mbps (1x PoE-In, 4x PoE-Out) |
| SFP Port: | 1x 1G/2.5G SFP |
| PoE Standard: | IEEE 802.3af/at/bt (PoE/PoE+/PoE++) |
| PoE-Out Power Port 1: | Up to 60W (Standard PoE or 4-pair 48V DC passive) |
| PoE-Out Power Port 2-4: | Up to 30W (Standard PoE or 2-pair 48V DC passive) |
| Max. PoE Budget (DC Input): | Up to 100W (at >36V DC input) |
| Max. PoE Budget (PoE++ Input): | Up to 60W (at 802.3bt input) |
| Switching Capacity: | 15 Gbps |
| Forwarding Rate: | 11.16 Mpps |
| Jumbo Frame Support: | Up to 15 KB |
| MAC Address Table: | 8K Entries |
| VLANs: | Up to 32 (802.1Q, Port-based) |
| QoS: | DSCP/802.1p, Bandwidth Control, Storm Control, VoiceVLAN |
| Management: | Web UI, GDMS Cloud, GWN Manager |
| Protection Class: | IP66 (Dust and Water Resistant) |
| Operating Temperature: | -40°C to 60°C |

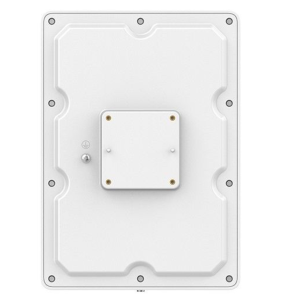

| Mounting Options: | Pole, DIN Rail, Wall Mount |
| Dimensions (LxWxH): | 210 x 150 x 52 mm |
| Weight (Unit): | 0.75 kg |
Package Contents
| 1 x Grandstream GWN7710R Outdoor PoE Switch |
| 1 x Rack Mount Brackets |
| 1 x Quick Installation Guide (QIG) |
| 4 x Mounting Screws |
| 4 x Expansion Screws |
| 2 x Metal Straps (for Pole Mounting) |
| 1 x Phoenix Connector |
Häufig gestellte Fragen (FAQ)
Is the Grandstream GWN7710R truly suitable for extreme weather conditions?
Yes, absolutely! The Grandstream GWN7710R features an IP66-certified enclosure, making it completely dustproof and waterproof. It is designed for a wide operating temperature range of -40°C to 60°C, thus withstanding rain, snow, dust, and extreme temperatures.
How is the GWN7710R powered and what PoE options does it offer?
The GWN7710R is extremely flexible in terms of power supply. It can be powered via a PoE-In port (Port 5) with 802.3bt PoE++ or via a 12V-57V DC input. It offers four PoE-Out ports: Port 1 delivers up to 60W, while Ports 2-4 can each provide up to 30W. The maximum PoE budget is up to 100W with DC input.
What management options do I have with the Grandstream GWN7710R?
You have several convenient options for managing the GWN7710R. You can configure it locally via the web user interface, through the Grandstream Device Management System (GDMS) cloud platform, or using the GWN Manager for local management of a larger number of Grandstream devices.
Can I also use the GWN7710R for fiber optic connections?
Yes, the Grandstream GWN7710R is equipped with a 2.5G SFP port, offering you the option to use fiber optic connections for long-distance transmissions. This is ideal for placing the switch far from the central network structure while ensuring fast and reliable connectivity.
What mounting options does the Grandstream GWN7710R offer?
The GWN7710R is very versatile in its mounting options. It supports pole mounting, DIN rail mounting, and wall mounting. This allows for flexible installation in almost any outdoor or even indoor environment, depending on your specific requirements.
