Your Upgrade for the Gigabit Era: The 2.5G WAN Port
Standard Gigabit ports are a thing of the past. The Cudy WR3600H is equipped with a future-proof 2.5-Gigabit WAN port. This means you can use internet tariffs with over 1 Gbit/s without compromise. Ideal for modern fiber optic connections, this port ensures that the full bandwidth truly reaches your home Network. Whether for demanding 4K/8K streaming, lightning-fast downloads, or a latency-free online experience – this fast Router for Home Office VPN is the basis for maximum performance.
Wi-Fi 7: More Than Just Speed
Wi-Fi 7 is a revolution. With features like Multi-Link Operation (MLO), the WR3600H can use the 2.4 GHz and 5 GHz bands simultaneously for a single connection. The result: higher throughputs, extremely low latencies, and unprecedented stability, even in heavily utilized WLAN environments. Technologies like 4096-QAM pack more data into each transmission, while Preamble Puncturing intelligently bypasses disturbed channels. This WLAN Router is not just fast, it's smart.
Security and Flexibility: Your VPN Hub for Home
Whether you need to access your company Network from your home office or want to protect your privacy across the entire Network – the WR3600H provides you with all the tools. It supports state-of-the-art protocols such as WireGuard, OpenVPN, and ZeroTier and can act as both a VPN server and a VPN client. Set up a secure tunnel to your home network or route all your devices' data traffic through an external VPN provider – all centrally and without having to install software on each individual device.
Central Control with Cudy Mesh and Intuitive App
The WR3600H is the perfect centerpiece for your Network. If your home grows, your WiFi simply grows with it. Thanks to Cudy Mesh technology, you can connect the router with other Cudy devices to form a seamless network that provides strong WiFi to every corner. All management is child's play: use either the clear web interface in your browser or the Cudy App on your smartphone to configure everything from parental controls to the guest network with just a few clicks.
Strengths & Notes at a Glance
- Pro: Future-proof Wi-Fi 7 standard with MLO & 4K-QAM.
- Pro: Powerful 2.5 Gbps WAN port for fast internet connections.
- Pro: Comprehensive VPN support (server & client) with WireGuard.
- Pro: Excellent price-performance ratio for the features offered.
- Note: No USB port for printers or hard drives available.
- Note: Currently no official support for alternative firmware like OpenWrt.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | WR3600H |
| EAN: | 6971690793500 |
| Device Type: | WLAN Router |
| Operating Modes: | Router, Access Point, Range Extender |
| CPU / Processor: | Broadcom BCM6764, 2.0 GHz Quad-Core, ARM Cortex-A7 |
| RAM: | 512 MB DDR3L |
| Flash Memory (ROM): | 128 MB NAND |
| WAN Port: | 1x 2.5-Gigabit-Ethernet (RJ45) |
| LAN Ports: | 4x 1-Gigabit-Ethernet (RJ45) |
| WLAN Standard: | Wi-Fi 7 (IEEE 802.11be) |
| Backward Compatibility: | 802.11a/b/g/n/ac/ax |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| Aggregated Speed: | BE3600 (approx. 3.6 Gbps) |
| Data Rate 5 GHz: | up to 2882 Mbps |
| Data Rate 2.4 GHz: | up to 688 Mbps |
| MIMO Configuration: | 2x2 MU-MIMO (both bands) |
| Key Wi-Fi 7 Features: | MLO (Multi-Link Operation), Preamble Puncturing, Multi-RU |
| Other WLAN Features: | OFDMA, BSS Color, Beamforming |
| Channel Bandwidth: | Up to 160 MHz |
| Modulation: | Up to 4096-QAM (4K-QAM) |
| WLAN Encryption: | WPA, WPA2, WPA3 (Personal/Enterprise) |

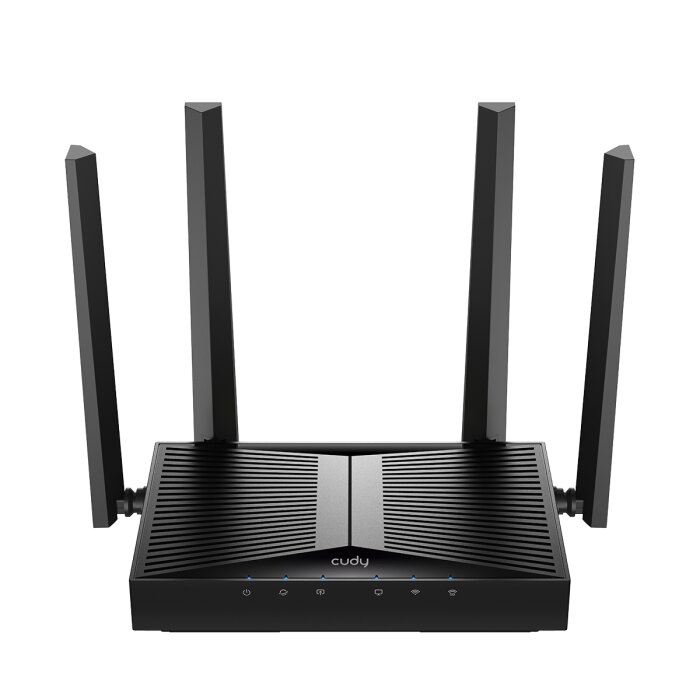

| Antennas: | 4x fixed, external Antennas |
| Antenna Gain: | 5.5 dBi (5 GHz), 5.4 dBi (2.4 GHz) |
| Signal Amplification: | 4x external FEMs (Front-End-Modules) |
| VPN Support: | Server & Client: WireGuard, OpenVPN, ZeroTier, IPsec, PPTP, L2TP |
| Mesh Compatibility: | Yes, Cudy Mesh |
| Management: | Web Interface, Cudy App (iOS/Android), Cudy Cloud |
| Recommended Client Count: | Up to 200 devices |
| Power Supply: | 12V / 1A DC Power Adapter (external) |
| Max. Power Consumption: | approx. 10 Watts |
| Dimensions (L x W x H): | 231.6 x 149.6 x 48.5 mm |
| Weight: | 332 g |
| Operating Temperature: | 0 °C to 40 °C |
Scope of Delivery
| 1 x Cudy WR3600H BE3600 Wi-Fi 7 Router |
| 1 x Power Adapter (12V/1A) |
| 1 x RJ45 Ethernet Cable |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
Can the Cudy WR3600H fully utilize my Gigabit internet connection?
Yes, absolutely. Thanks to its 2.5-Gigabit WAN port, the Network WiFi Routers can handle and distribute internet speeds of over 1 Gbit/s to the network, making it ideal for fast fiber optic connections.
What is the main advantage of Wi-Fi 7 with this WiFi Routers?
The main advantage is Multi-Link Operation (MLO), which allows devices to simultaneously use the 2.4 GHz Components and 5 GHz Components bands. This leads to higher speeds, lower latencies, and a more stable connection, especially in environments with many Network.
Is the WiFi Routers suitable for online gaming and 4K streaming?
Yes, the combination of a powerful quad-core processor, Wi-Fi 7, and the 2.5G port ensures extremely fast and responsive data processing, minimizing lag during gaming and buffering during 4K/8K streaming.
Can I build a Mesh Network with the Cudy WR3600H?
Yes, the WiFi Routers is compatible with Cudy Mesh technology. You can combine it with other Cudy Mesh-enabled devices to create a unified and seamless Network for the entire home.
Does the WiFi Routers support a secure connection for the home office?
Yes, it offers comprehensive VPN functions. You can set it up as a VPN server to securely connect to your home Network from anywhere, or as a VPN client to route all Network traffic through an external VPN Service.
How complicated is the setup of the WiFi Routers?
The setup is designed for beginners. It can be done either via an intuitive web interface in the browser or via the Cudy smartphone app, which guides the user step-by-step through the process.
