Your Outdoor USB Connection: Robust, Fast, Simple.
Imagine being able to securely and weatherproofly attach your external USB devices like WiFi Antennas or cameras to your vehicle or building, without having to worry about moisture or complicated installations. The BATLINK OCUSB2 is made exactly for that! This weatherproof USB socket is your ideal USB cable feed-through, bringing full USB 3.0 performance to the outside. Perfect for your motorhome, your camper, or your yacht.
Maximum Performance, Minimum Effort: The Smart Solution for Your Devices.
With the BATLINK OCUSB2, you benefit from high-speed USB 3.0 data transfer – up to 5 GBit/s! This means you copy large files in seconds and your external devices run smoothly. Installation is incredibly simple: Thanks to the innovative adhesive mounting, you save yourself drilling and protect the integrity of your vehicle or building. The UV-resistant special plastic housing ensures that your USB flush-mount socket still looks and functions great even after years.
Equipped for Every Challenge: IP65 Protection and More.
Whether you're looking for a marine USB solution for your boat or need a reliable connection for industrial outdoor measurement systems – the BATLINK OCUSB2 delivers. The IP65 USB connection certification guarantees that dust and jet water have no chance. The integrated 2-meter USB cable gives you enough room for routing inside, without needing additional extensions. Another plus: The special 'click' closure secures your connection even with strong vibrations or rough seas.
Diverse Applications: From Antenna Systems to Outdoor Workspaces.
The BATLINK OCUSB2 is not just a simple outdoor USB extension. It's a real multi-talent! Imagine integrating your 5G Antennas or outdoor WiFi Antennas seamlessly into your system without compromising the watertightness of your roof. Or you use it to power cameras and navigation systems on your Yacht / Camper / Motorhome with power and data. Even for demanding applications like outdoor measuring stations, this waterproof USB coupling offers the necessary robustness and reliability.
Strengths & Notes at a Glance
- Pro: Weather resistance (IP65): Offers excellent protection against dust and jet water, making outdoor use (roof, wall) on vehicles, boats, or buildings easily possible.
- Pro: USB 3.0 Standard: Enables fast data transfer rates, which is important for modern peripheral devices such as cameras, external hard drives, or powerful WLAN adapters.
- Pro: Integrated cable length (2m): The 2-meter long cable offers flexibility during installation and often saves an additional extension, which reduces the number of potential sources of error.
- Note: Fixed cable length: The fixed integrated cable length of 2 meters can be too much or too little in some installation scenarios, meaning either excess cable management or the need for an additional extension.
- Note: Mounting adhesive not included: For proper installation, a suitable mounting adhesive is required, which is not included in the scope of delivery and must be purchased separately.
Specifications & Features
| Manufacturer: | BATLINK |
| Model: | OCUSB2 |
| Product Type: | Weatherproof USB 3.0 Roof Feed-Through |
| USB Standard: | USB 3.0 (backward compatible) |
| Max. Transfer Rate: | 5 GBit/s (SuperSpeed) |
| Protection Class: | IP65 (Dustproof & Jet Water Protected) |
| Cable Length (integrated): | 2 Meters |
| Mounting Type: | For Gluing (Surface Mount) |
| Housing Material: | UV-resistant Special Plastic |
| Locking Mechanism: | Bayonet / Click Mechanism |
| Application Areas: | Vehicles, Motorhomes, Boats, Outdoor Systems |
| Connection (internal): | USB-A Plug |
| Connection (external): | USB-A Socket |
| EAN: | 4251028603902 |

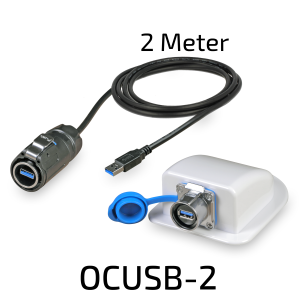

Scope of Delivery
| 1 x BATLINK OCUSB2 Feed-Through with 2m Cable |
Frequently Asked Questions (FAQ)
Is the BATLINK OCUSB2 really waterproof?
Yes, the BATLINK OCUSB2 is IP65 certified, which means it is dustproof and protects you against jet water from any angle.
Which USB version does the roof gland support?
The roof gland supports the USB 3.0 standard, which enables fast data transfer rates.
Can I also use the BATLINK OCUSB2 in saltwater environments?
Although the IP65 certification offers protection against water, you should check the corrosion resistance of the materials used for permanent use in saltwater environments. It is generally suitable for marine applications, but regular inspection is recommended.
How long is the cable of the roof gland?
The integrated cable of the BATLINK OCUSB2 has a length of 2 meters.
For which application areas is this product particularly suitable?
It is particularly suitable for use in your motorhome, camper, yacht, and other outdoor applications where you need a weatherproof and reliable USB connection through a roof or wall surface.
Do I need to drill a hole for installation?
Yes, for the professional installation of the roof gland, a corresponding drill hole in the surface (roof, wall) is required to mount the cable and the socket.
