The Foundation for Your Maximum 4x4 MIMO Experience
Do you have a modern 5G or 4G Router with 4x4 MIMO capability? Perfect! But to truly utilize this potential, you need more than just four individual Antennas. You need the perfect arrangement. This is where the BATLINK DQ5G-QUAD 4x4 MIMO Bracket comes in. It's the crucial puzzle piece that positions your Antennas at the exact right distance and angle. Incorrect Mounting Systems can even degrade your system's performance. With this bracket, you ensure that signals are received cleanly and separately, leading to maximum data rates and a rock-solid connection.
Indestructible: V4A Stainless Steel for the Harshest Conditions
What good is the best technology if the material gives up after a year outdoors? None. That's why the DQ5G-QUAD is made from uncompromising V4A stainless steel (AISI 316). This special stainless steel is not only rust-free but also extremely resistant to chlorides (salt) and acids. This makes it the first choice for use on Yachts, at the coast, or in harsh industrial areas. While normal stainless steel would have long rusted here, this Antenna Mounting Accessories remains absolutely reliable and stable for years.
Flexible Mounting: On the Mast, on the Wall, Wherever You Need It
Your setup, your rules. The DQ5G-QUAD gives you complete freedom during installation. Thanks to its thoughtful design, you can easily attach it to vertical or horizontal masts with a diameter of 20 to 51 mm. It can also be screwed directly to a house wall, a vehicle body, or the deck of your boat. This flexibility in Mounting Systems ensures you always find the optimal mounting location for the best possible reception.
Precision for the BATLINK MAO5G Series

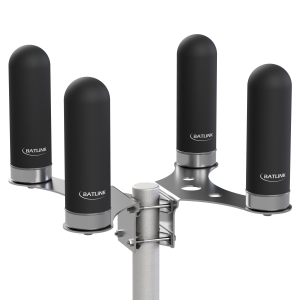

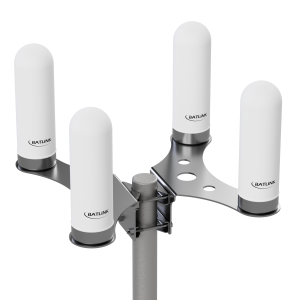

This bracket was specifically developed as a perfect partner for the high-performance BATLINK MAO5Gv2 and MAO5Gv1 Antennas. The threads, spacing, and overall statics are precisely tailored to these models. This not only guarantees easy and secure Mounting Systems but also the best possible electronic performance of the overall system. You are investing in a perfectly coordinated setup that makes no compromises and delivers the performance you expect.
Strengths & Notes at a Glance
- Pro: Enables true 4x4 MIMO for maximum data rates and connection stability.
- Pro: Seawater-resistant V4A stainless steel makes the bracket extremely durable and corrosion-proof.
- Pro: Flexible Mounting Systems on masts and walls for universal applications.
- Pro: Physically optimized spacing of Antennas to prevent interference.
- Note: The total weight with four Antennas (over 2 kg) requires a stable mounting location.
- Note: Primarily designed for the BATLINK MAO5G series; compatibility with other Antennas must be checked.
Specifications & Features
| Manufacturer: | Batlink |
| Model: | DQ5G-QUAD |
| Manufacturer Article Number (HAN): | DQ5G-QUAD (DQ5G-Q) |
| EAN: | 4251028604497 |
| Product Type: | Antenna Mounting Accessories |
| Function: | Quad bracket for 4 Antennas |
| MIMO Configuration: | Enables 4x4 MIMO Installation |
| Compatibility: | Specifically for BATLINK MAO5Gv1 / MAO5Gv2 |
| Material: | V4A Stainless Steel |
| Material Specification: | AISI 316, corrosion-, acid-, and seawater-resistant |
| Construction: | Solid 'Heavy Duty' design |
| Application Area: | Outdoor, maritime use, industrial environments |
| Mounting Types: | Mast Mounting Systems, Wall Mounting Systems |
| Suitable Mast Diameter: | 20 mm to 51 mm |

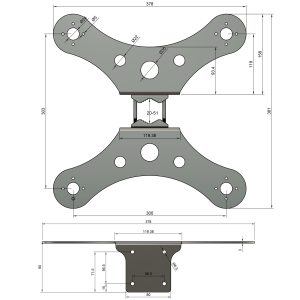

| Dimensions (L x W): | 380 mm x 378 mm |
| Weight (Bracket): | Not specified (Total weight set with 4 Antennas: 2105 g) |
| Weather Resistance: | Fully weather and UV-resistant |
Scope of Delivery
| 1 x BATLINK DQ5G-QUAD Mounting Bracket (V4A) |
Frequently Asked Questions (FAQ)
Do I really need this Mounting Systems for 4x4 MIMO operation?
Yes, absolutely. For true 4x4 MIMO, you need four separate Antennas. This Mounting Systems ensures that the Antennas are positioned at the perfect distance and angle to each other. Incorrect mounting can even degrade your system's performance. With the DQ5G-QUAD, you're ensuring reliability.
What exactly does V4A stainless steel mean and why is it important for you?
V4A is an extremely robust and acid-resistant stainless steel, which is also resistant to chlorides, i.e., salt. If you want to mount the Mounting Systems on a boat, near the coast, or in an industrial area, V4A is a must-have. Regular stainless steel would rust over time here, which you can safely avoid with this Mounting Systems.
Can I attach the Mounting Systems to a house wall instead of a mast?
Yes, that's easily possible. The Mounting Systems is universally designed and can be screwed to a mast with pipe clamps or directly to a flat, stable wall. This makes you very flexible in choosing your mounting location.
Does the Mounting Systems also fit Antennas other than those from BATLINK?
The Mounting Systems is specifically tailored to the dimensions and threads of the BATLINK MAO5Gv1 and MAO5Gv2 Antennas. Technically, other Antennas might also fit if they have the same thread standard. However, we strongly recommend you stick to the compatible models to guarantee optimal performance and stability.
Does the Mounting Systems alone improve my reception?
No, the Mounting Systems itself is a passive component and has no direct influence on reception. Its task is to position your Antennas in the best possible position for 4x4 MIMO operation. The reception improvement comes from the interaction of the four optimally aligned Antennas with your Router.
Is the Mounting Systems complicated?
No, the Mounting Systems is straightforward. You first attach the Mounting Systems itself to the mast or wall. Then, you simply screw the four Antennas into the designated threads. The necessary Mounting Systems Accessories for the mast are usually included.
