Your Upgrade for Seamless Wi-Fi 6 Throughout the House

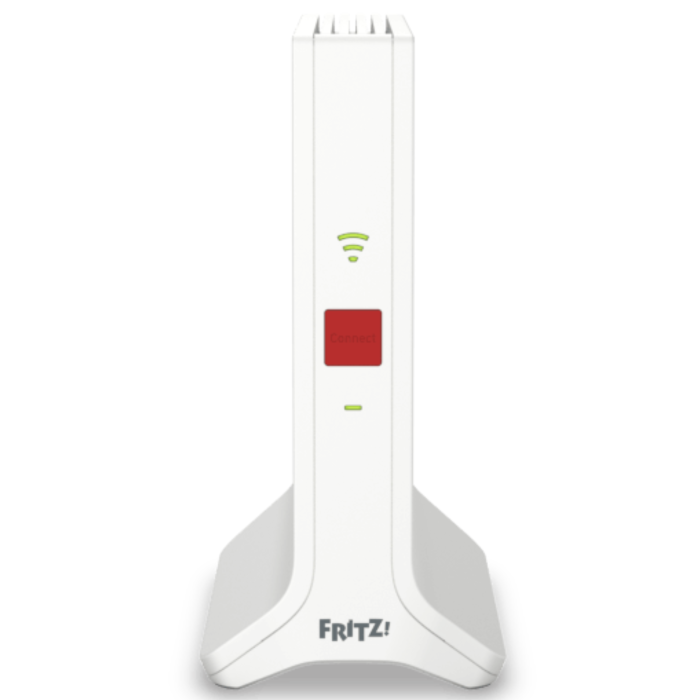

Do you know the feeling? The WiFi Router is in the living room, but the signal already breaks down in the study or on the terrace. The FRITZ!Repeater 3000 AX was developed precisely for this. As a powerful WiFi Repeaters for large houses and demanding users, it reliably extends your existing wireless Network. Thanks to state-of-the-art Wi-Fi 6 (802.11ax), it supplies a multitude of devices simultaneously at maximum speed – ideal for 4K streaming, online gaming, and a stable home office.
Intelligent Tri-Band Technology for Maximum Performance
The secret to its performance lies in its three radio units (Tri-Band). While simple repeaters have to receive and transmit the signal simultaneously, which halves the speed, the FRITZ!Repeater 3000 AX uses a clever trick: one 5 GHz band serves as a dedicated high-speed channel (backbone) for communication with your WiFi Routers. The other two bands (one 5 GHz, one 2.4 GHz) are fully available for your smartphones, laptops, and smart home devices. The result: no loss of speed and maximum performance for everyone.
Perfect in a Team: Seamless Mesh with Your FRITZ!Box
The repeater unfolds its full strength in the AVM Mesh system. In conjunction with a FRITZ!Box as the central unit, the devices merge into a single, intelligent WiFi Network. All settings such as WiFi name (SSID), password, and even the night schedule are automatically adopted. Your end devices are actively steered to the best connection point (WiFi Mesh Steering), so you can move freely around the house without your video call or stream being interrupted. It couldn't be simpler or more convenient.
More Flexible Than Ever: As a Repeater or Powerful Access Point
The FRITZ!Repeater 3000 AX offers you two powerful operating modes. Use it classically as a WiFi Bridge to extend the signal wirelessly. Or, if you have Network Cabling, connect it to your router via LAN cable and operate it in LAN bridge mode. This turns it into a full-fledged WiFi Access Points and generates a fresh, extremely strong WiFi signal exactly where you need it – ideal for bridging floors or thick walls. The two Gigabit LAN ports also offer connection options for wired devices.
Strengths & Notes at a Glance
- Pro: Extremely high WiFi performance due to Wi-Fi 6 and Tri-Band technology.
- Pro: Seamless and intelligent Mesh integration with an AVM FRITZ!Box.
- Pro: High flexibility through optional operation as an Access Point (LAN bridge).
- Pro: Future-proof thanks to Wi-Fi 6 and backward compatible with older standards.
- Note: The Gigabit LAN ports cannot fully utilize the maximum theoretical WiFi speed.
- Note: The standing housing is larger than that of socket repeaters and requires floor space.
Specifications & Features
| Manufacturer: | AVM |
| Model: | FRITZ!Repeater 3000 AX |
| EAN: | 4023125029882 |
| Manufacturer Item Number: | 20002988 |
| Device Type: | Tri-Band WiFi Repeater |
| Operating Modes: | Repeater (WiFi Bridge), Access Point (LAN Bridge) |
| WiFi Standard: | Wi-Fi 6 (802.11ax), backward compatible with 802.11ac/n/g/a |
| Frequency Bands: | 1x 2.4 GHz, 2x 5 GHz (Tri-Band) |
| Data Rate Band 1 (5 GHz): | Up to 2,400 Mbps (4x4 MIMO, 160 MHz channel width) |
| Data Rate Band 2 (5 GHz): | Up to 1,200 Mbps (2x2 MIMO, 80 MHz channel width) |
| Data Rate Band 3 (2.4 GHz): | Up to 600 Mbps (2x2 MIMO, 40 MHz channel width) |
| Aggregated WiFi Rate: | Up to 4,200 Mbps (gross) |
| Antennas: | 8 internal Antennas |
| Mesh Function: | Yes, with AVM FRITZ!Box |
| Security: | WPA3, WPA3/WPA2 Transition Mode, WPA2, WPS |
| Ports: | 2 x Gigabit LAN (RJ45, 10/100/1000 Mbps) |
| Dimensions (W x H x D): | approx. 9 x 19 x 14.5 cm |
| Weight: | approx. 600 g |
| Power Supply: | External Power Supply unit (230 V, 50 Hz) |
| Avg. Power Consumption: | approx. 9 Watts |
| Max. Power Consumption: | approx. 11 Watts |
| Special Features: | FRITZ!OS, dynamic Cross-Band Repeating |
Scope of Delivery
| 1 x AVM FRITZ!Repeater 3000 AX |
| 1 x Power Supply Unit |
| 1 x LAN Cable |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
Can I use the FRITZ!Repeater 3000 AX with any router?
Yes, the repeater is compatible with all common WiFi routers that support 802.11 ax/ac/n/g/a standards. However, it unfolds its full Mesh functionality best in conjunction with an AVM FRITZ!Box.
What is the main difference to the FRITZ!Repeater 6000?
Do I have to connect the repeater to the router via cable?
No, the primary operating mode is the wireless connection. The optional connection via LAN cable (LAN bridge) is ideal for bridging long distances or massive obstacles such as reinforced concrete ceilings.
What does Tri-Band mean and what is the advantage?
Does the repeater support 160 MHz channel width for faster WiFi?
Yes, the FRITZ!Repeater 3000 AX supports 160 MHz channel width on the 5 GHz band, allowing compatible devices such as modern laptops or smartphones to achieve extremely high connection speeds.
How do I find the optimal location for the repeater?
