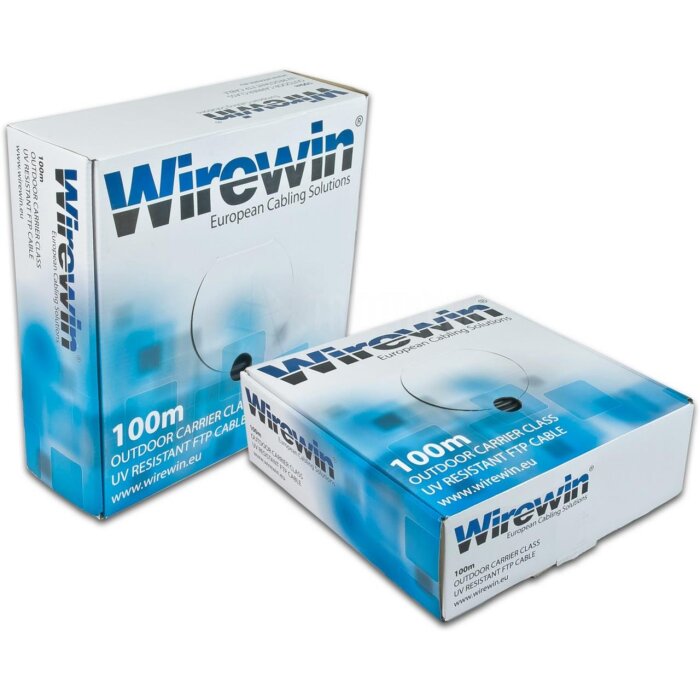

WIREWIN VKBox is a weatherproof and UV-resistant LSOH outdoor installation cable in the CAT5e category. The cabling features F/UTP shielding and AWG27 gauge wire. The cable has an outer diameter of 5.2mm and is structured in 4 unshielded stranded pairs. The VKBox is particularly suitable for use in structured building cabling and all Class D applications. The cable is supplied coiled up to 100m in one piece.
Specifications:
| Manufacturer / Model: | WIREWIN / VKBOX OUTDOOR 100.0 |
| Type: | Ethernet cable |
| Length: | 100m |
| Default: | CAT5e, shielded |
| Ethernet: | 10/100/1000 MBit |
| Ladder Type: | Copper, bare |
| Conductor Wire Gauge | 27AWG |
| Conductor Diameter: | 0.50 +- 0.005mm |
| Insulation: | Solid PE |
| Insulation Thickness: | 0.295mm, nominal |
| Insulation Diameter: | 0.9mm (nom.) |
| Coat: | UV-resistant PE, LSOH |
| NVP propagation speed: | 0.69c (nom.) |
| Cable shielding: | F/UTP shielded |
| SKEW: | max. 45ns/100m (1-100MHz) |
| Tension: | 90N |
| Storage temperature: | -20°C- +60°C |
| Installation Temperature | 0°C - +50°C |
| Bend radius: | 4x AD (operation), 8x AD (installation) |
| Coat Color: | Black |
| Reference Standard | ISO/IEC 11801, TIA/EIA568B.2 |
Scope of delivery:
| 1 x 100m WIREWIN VKBox outdoor installation cable |
