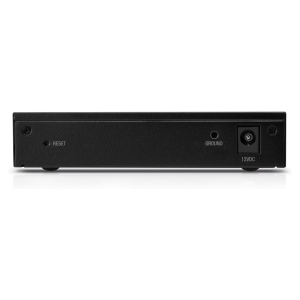

Ubiquiti Networks EdgeRouter X / ER-X is part of the EdgeMAX platform. The EdgeRouter X combines carrier class reliability with excellent price to performance value in an ultra compact form factor. The standard model, the ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option is available to support a single airMAX device.
Configuration MethodsPowered by a proprietary and intuitive graphical interface, EdgeOS, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Intuitive User InterfaceThe EdgeRouter X provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.
Powerful Features
EdgeOS is a sophisticated operating system with robust features, including:
- VLAN interfaces for network segmentation
- Static routes and support of routing protocols: OSPF, RIP, and BGP
- Firewall policies and NAT rules
- DHCP services
- Quality of Service (QoS)
- Network administration and monitoring tools
- Administrator and operator accounts
- Comprehensive IPv6 support
Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:
- For power users, configuration and monitoring of all advanced features
- Direct access to standard Linux tools and shell commands
- CLI access through SSH, Telnet, and the graphical user interfac
Technical Data:
| Manufacturer / Product: | Ubiquiti Networks / EdgeRouter X |
| Ethertnet Interface: | 1 x 10/100/1000Mbps Gigabit LAN Port (Data/PoE Input Port) 3 x 10/100/1000Mbps Gigabit LAN Port (Data Port) 1 x 10/100/1000Mbps Gigabit LAN Port (Data/PoE Output Port) |
| Processor: | Dual-Core 880 MHz, MIPS1004Kc |
| Systm Memory: | 256 MB DDR3 RAM |
| Code Storage: | 256 MB NAND |
| Interface/Encapsulation: | Ethernet, 802.1q VLAN, PPPoE, GRE, IP in IP, Bridging, Bonding (802.3ad) |
| Addressing: | Static IPv4/IPv6 Addressing, DHCP/DHCPv6 |
| Routing: | Static Routes, OSPF/OSPFv3, RIP/RIPng, BGP (with IPv6 Support), IGMP Proxy |
| Security: | ACL-Based Firewall, Zone-Based Firewall, NAT |
| VPN: | IPSec Site-to-Site and Remote Access, OpenVPN Site-to-Site and Remote Access, PPTP Remote Access, L2TP Remote Access, PPTP Client |
| Services: | DHCP/DHCPv6 Server, DHCP/DHCPv6 Relay, Dynamic DNS, DNS Forwarding, VRRP, RADIUS Client, Web Caching, PPPoE Server |
| QoS: | FIFO, Stochastic Fairness Queueing, Random Early Detection, Token Bucket Filter, Deficit Round Robin, Hierarchical Token Bucket, Ingress Policing |
| Management: | Web UI, CLI (Console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT Discovery Protocol, Logging |
| Dimensions: | 11 x 7.5 x 2.2cm |
| Weight: | 0.175 kg |
| Operating Temperature: | -10°C bis +45°C |
| Humidity: | up to 90% non-condensing |
Scope of delivery:
| 1 x Ubiquiti EdgeRouter X / ER-X |
| 1 x 12V/1A Power Supply |
