Your WiFi Upgrade: No More Business Bottlenecks
Do you know the feeling when your WiFi just can't keep up? Slow connections, constant disconnections, and an overloaded infrastructure are not only frustrating but also cost valuable working time and nerves. Especially in environments with many users and data-intensive applications, conventional WiFi quickly reaches its limits, massively impairing productivity and diminishing the customer experience. With the TP-Link Omada EAP653, this problem is a thing of the past! Experience a revolutionary improvement in your Network performance.

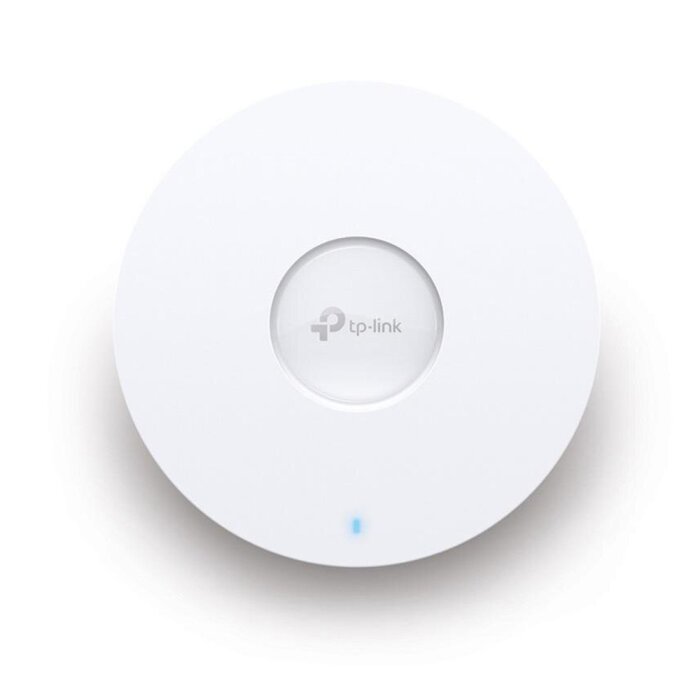

Technology That Inspires: The EAP653 in Detail
The TP-Link Omada EAP653 is packed with innovative features. The WiFi 6 (802.11ax) technology with 1024-QAM and Long OFDM Symbol ensures up to 25% higher data rate and 11% faster speed. Thanks to OFDMA and MU-MIMO, multiple clients can communicate simultaneously, reducing latency and increasing capacity. Support for 160 MHz Channel doubles data transfer during peak times, while Seamless Roaming and Omada Mesh guarantee seamless coverage and flexible Network expansion. Power is conveniently supplied via PoE+ (802.3at), simplifying installation and eliminating the need for additional cables. A real plus for your Network!
Your Network, Your Control: Omada SDN Makes It Possible
As part of the Omada SDN platform, the EAP653 can be seamlessly integrated into your existing Omada ecosystem. Manage WiFi Access Points, Ethernet Switch, and gateways centrally via an intuitive web interface or the Omada App – locally or via the cloud. Functions such as Band Steering, Load Balancing, and Airtime Fairness automatically optimize performance, while WPA3 Security and a Captive Portal offer the highest security standards for your Network. This gives you full control at all times and a network that grows with your requirements. Perfect for use with TP-Link Omada components.
Flexibility and Security for Your Business
The TP-Link Omada EAP653 is not only powerful but also extremely flexible. With the ability to serve over 250 clients simultaneously and configure up to 16 SSIDs, it perfectly adapts to the needs of your business. Whether you run a small office or a large enterprise, this WiFi Access Point offers you the scalability and security you need. Robust security standards like WPA3 Security reliably protect your data. Trust a solution that combines performance, flexibility, and security in one device.
Strengths & Notes at a Glance
- Pro: Lightning-fast WiFi 6 with up to 2976 Mbit/s through AX3000 technology.
- Pro: High capacity through OFDMA and MU-MIMO for over 250 simultaneous clients.
- Pro: Centralized management and scalability via the Omada SDN platform with cloud management.
- Pro: Easy and flexible installation thanks to PoE+ (802.3at) support and Ceiling Mount.
- Pro: Seamless coverage and uninterrupted communication through Omada Mesh Technology and Seamless Roaming.
- Pro: Robust WPA3 Security and flexible guest networks with Captive Portal.
- Note: The DC power adapter is not included; Power Supply is primarily via PoE+ (802.3at).
- Note: An Omada SDN Controller is required for advanced features such as Omada Mesh and seamless roaming.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | Omada EAP653 |
| Product Type: | WiFi Access Point for Ceiling Mount |
| WiFi Standards: | IEEE 802.11ax/ac/n/g/b/a (WiFi 6) |
| Frequency Bands: | 2.4 GHz and 5 GHz (Dual-Band) |
| Max. Data Rate 5 GHz: | Up to 2402 Mbps (802.11ax, 160 MHz Channel) |
| Max. Data Rate 2.4 GHz: | Up to 574 Mbps (802.11ax) |
| Total WiFi Speed: | AX3000 (2976 Mbps) |
| Ethernet Interface: | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE 802.3at PoE+) |
| Antenna Type: | Internal, omnidirectional |
| Antenna Gain 2.4 GHz: | 2× 4 dBi (Peak Gain, Down tilt angle 45°) |
| Antenna Gain 5 GHz: | 2× 5 dBi (Peak Gain, Down tilt angle 30° to 45°) |
| WiFi Features: | 1024-QAM, 4× Longer OFDM Symbol, OFDMA (UL/DL), MU-MIMO, HE160, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming |
| WiFi Security: | WPA/WPA2/WPA3-Personal/Enterprise, Captive Portal, MAC Access Control, Client Isolation, VLAN (802.1Q), Rogue AP Detection, 16 SSIDs |
| Wireless Client Capacity: | Over 250 simultaneous clients |
| Coverage: | Up to 140 m² (1500 ft²) |
| Transmit Power CE (EIRP): | < 20 dBm (2.4 GHz); < 23 dBm (5 GHz Band1&2); < 29 dBm (5 GHz Band3) |
| Transmit Power FCC: | < 26 dBm (2.4 GHz); < 27 dBm (5 GHz) |
| Power Supply: | 802.3at PoE+ or 12V DC (power adapter sold separately) |
| Max. Power Consumption: | 14.7 W (US version) |
| Dimensions (W x D x H): | 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 inches) |
| Mounting: | Ceiling/Wall Mount (mounting kits included) |
| Management: | Omada SDN (central cloud management), Omada App, Web-based Management, SNMP, System Logging, Email Alerts, LED ON/OFF Control, Auto Channel Selection, Zero-Touch Provisioning (with Cloud Controller), DFS |
| Operating Temperature: | 0–40 ℃ (32–104 ℉) |
| Certifications: | CE, FCC, RoHS |
| Warranty: | 5-year limited warranty |
Scope of Delivery
| 1 x TP-Link Omada EAP653 AX3000 WiFi Access Point |
| 1 x Ceiling/Wall Mount Kit |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What does AX3000 mean for the TP-Link EAP653?
AX3000 refers to the maximum theoretical aggregated Wi-Fi speed of approx. 3000 Mbps that your Access Point can achieve (574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band). The 'AX' stands for WiFi 6 (802.11ax) technology.
Does the TP-Link EAP653 require a controller?
For advanced features like Omada Mesh, seamless roaming, Captive Portal, and centralized cloud management, you need an Omada SDN Controller (hardware, software, or cloud-based). However, your device can also operate in standalone mode, in which case only basic functions are available.
Is the TP-Link EAP653 suitable for outdoor use?
No, the TP-Link EAP653 is a 'Ceiling Mount' Access Point and is designed for indoor use. You should not use it outdoors.
What advantages does WiFi 6 (802.11ax) offer with the EAP653?
WiFi 6 offers you faster speeds, lower latency, less interference, and higher capacity for more simultaneously connected devices. This is achieved through technologies like OFDMA, MU-MIMO, 1024-QAM, and 160 MHz channel width.
How is the TP-Link EAP653 powered?
You can power the EAP653 via 802.3at PoE+ (Power over Ethernet Plus) or via a 12V DC power adapter (sold separately).
Can the EAP653 provide seamless roaming?
Yes, the EAP653 supports seamless roaming, which means your video streams and voice calls remain uninterrupted as you move between different Access Points in the same Omada network. However, this feature requires an Omada SDN Controller.
