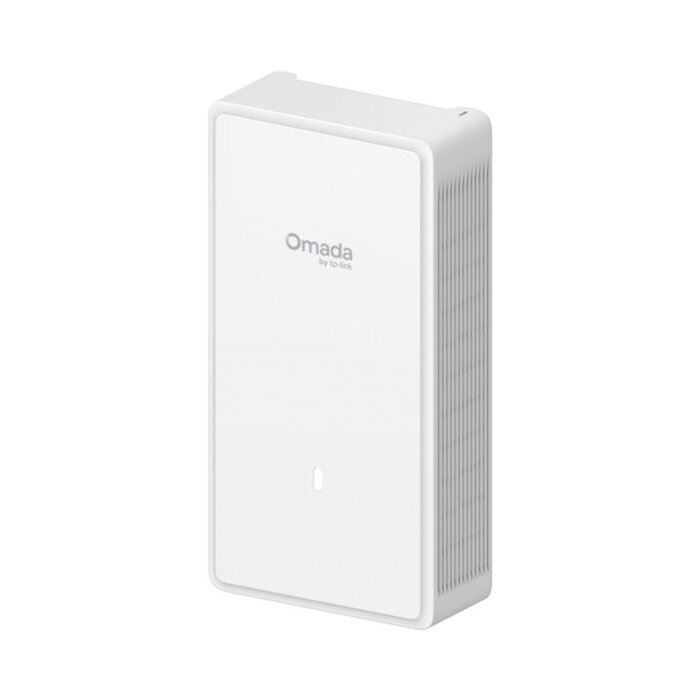

Next-Generation Wi-Fi 7 Performance for Your Network
With the TP-Link Omada EAP775-WALL, you catapult your Network directly into the future. As a state-of-the-art WiFi Access Point, it utilizes the revolutionary Wi-Fi 7 standard (802.11be) to deliver unparalleled performance. Thanks to Tri-Band technology, which simultaneously uses the 2.4 GHz, 5 GHz, and the new, exclusive 6 GHz bands, overloaded frequencies are a thing of the past. Features like Multi-Link Operation (MLO) for bundled connections, 4K-QAM for higher data rates, and a massive 320 MHz channel width ensure ultra-fast speeds, extremely low latencies, and a stable connection – perfect for 8K streaming, VR/AR, and mission-critical applications.
Maximum Connectivity: Multi-Gigabit and Flexible PoE-Out
The EAP775-WALL is not just a powerhouse in Wi-Fi, but also in wired connectivity. The 2.5-Gigabit Uplink-Port ensures that the full Wi-Fi 7 speed is passed to your Ethernet Switch without a bottleneck. Additionally, four Downlink-Ports (1x 2.5 Gbps + 3x 1 Gbps) offer connection options for other devices directly at the installation site. The absolute highlight is the PoE-Pass-Through function: If the Access Point itself is powered via PoE++ (802.3bt), it can power other devices such as IP Phones or IP Cameras via two of its ports. This saves separate PoE Injectors / Power Supplies and significantly reduces Cabling effort.
Invisible Integration: Design That Adapts
In professional environments such as hotels, conference rooms, or modern offices, not only technology but also aesthetics matter. The EAP775-WALL was specially developed for discreet wall mounting. Its flat design blends inconspicuously into any environment. For perfect visual adaptation, an additional, paintable cover is included. This allows you to paint the Access Point in the exact color of the wall, making it almost invisible. No more bulky tech devices on the ceiling – the EAP775-WALL combines high-end technology with sophisticated design, fitting perfectly with various Mounting Systems.
Central Management Made Easy with Omada SDN
The true strength of the EAP775-WALL unfolds in conjunction with the TP-Link Omada SDN (Software Defined Networking) platform. Whether you manage one, ten, or hundreds of WiFi Access Points – you have your entire Network under control via a central controller (hardware, software, or cloud). Configure SSIDs, set up guest portals, monitor Network status, and deploy firmware updates – all via a single, intuitive interface. Thanks to cloud access, you can even manage your Network from anywhere in the world. This simplifies administration, reduces operating costs, and makes your Network scalable and future-proof.
Strengths & Notes at a Glance
- Pro: State-of-the-art Wi-Fi 7 technology with Tri-Band and 6 GHz support for maximum performance.
- Pro: Outstanding connectivity with two 2.5G ports and flexible PoE-Out function.
- Pro: Extremely discreet design for wall mounting, including a paintable cover.
- Pro: Seamless integration into the powerful TP-Link Omada SDN ecosystem for central management.
- Note: For the use of the PoE-Out function, Power Supply via PoE++ (802.3bt) is absolutely necessary.
- Note: The high acquisition price is justified primarily in environments that can benefit from Wi-Fi 7 in the short term.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | Omada EAP775-WALL |
| EAN: | 1210002619080 |
| Device Classification: | WiFi Access Point (Wall Plate) |
| WLAN Standards: | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 4, 5, 6, 6E, 7) |
| Frequency Bands: | Tri-Band (2.4 GHz, 5 GHz, 6 GHz) |
| Maximum Data Rate (6 GHz): | Up to 5765 Mbps |
| Maximum Data Rate (5 GHz): | Up to 4324 Mbps |
| Maximum Data Rate (2.4 GHz): | Up to 688 Mbps |
| Wi-Fi 7 Technology: Multi-Link Operation (MLO): | Yes |
| Wi-Fi 7 Technology: Multi-RUs: | Yes |
| Wi-Fi 7 Technology: 4K-QAM Modulation: | Yes |
| Wi-Fi 7 Technology: 320 MHz Channel Bandwidth: | Yes (on 6 GHz band) |
| Antenna Type: | 6x internal |
| Antenna Gain (2.4 GHz): | 2x 5 dBi |
| Antenna Gain (5 GHz): | 2x 5 dBi |
| Antenna Gain (6 GHz): | 2x 6 dBi |
| Transmit Power (CE): | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz), < 23 dBm (6 GHz) |
| Uplink Port: | 1x 2.5 Gigabit Ethernet (RJ45) |
| Downlink Ports: | 1x 2.5 Gigabit Ethernet + 3x Gigabit Ethernet (RJ45) |
| Power Supply (PoE-In): | 802.3at (PoE+) / 802.3bt (PoE++) |
| Power Output (PoE-Out): | 2x 802.3af PoE or 1x 802.3at PoE+ |
| Requirement for PoE-Out: | Power Supply via 802.3bt (PoE++) |
| Additional Interfaces: | Bluetooth 5.2 |
| WLAN Encryption: | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| WLAN Functions: | Beamforming, MU-MIMO, OFDMA, TWT, 16 SSIDs, QoS (WMM), Band Steering, Load Balancing, Airtime Fairness |
| Roaming: | Seamless Roaming (IEEE 802.11k/v/r) |
| Mesh Capability: | Yes, in Omada SDN association |
| Network Security: | Captive Portal, MAC Filter, Client Isolation, VLAN (802.1Q), Rogue AP Detection |
| Management: | Omada Hardware/Software/Cloud Controller, Standalone Web-Interface, Omada App |
| Maximum Number of Clients: | 380+ |
| Recommended Range: | Up to 100 m² |
| Dimensions (W x D x H): | 172.9 x 91.2 x 41.3 mm |
| Weight: | approx. 480 g |
| Mounting: | Wall mounting (surface/flush-mounted, Mounting Systems incl.) |
| Operating Temperature: | 0 °C to 40 °C |
| Certificates: | CE, FCC, RoHS |
Scope of Delivery
| 1 x TP-Link Omada EAP775-WALL Access Point |
| 1 x Paintable Cover |
| 1 x Mounting Set for Wall Boxes |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
Do I need a special controller for the EAP775-WALL?
No, not necessarily. The EAP775-WALL can be configured in "Standalone Mode" via a web interface. However, for advanced functions such as seamless roaming, central management of multiple WiFi Access Points, and cloud access, the use of a TP-Link Omada Hardware, Software, or Cloud Controller is recommended.
Can I also power wired devices with the EAP775-WALL?
Yes, the WiFi Access Point features a PoE-Out function. It can power other devices like VoIP phones or IP Cameras via two of its Gigabit ports. This requires the EAP775-WALL itself to be powered via a PoE Injectors / Power Supplies (802.3bt) connection.
Is the EAP775-WALL backward compatible with older WiFi devices?
Yes, absolutely. It supports all common WiFi standards from 802.11a/b/g/n/ac/ax up to be (Wi-Fi 7). This means that older laptops, smartphones, and IoT devices can also connect without issues.
What is the advantage of the 6 GHz band with this WiFi Access Point?
The 6 GHz band is a new, exclusive frequency range for Wi-Fi 6E and Wi-Fi 7. It is significantly less congested than the 2.4 GHz and 5 GHz bands, leading to fewer interferences, lower latencies, and higher, more stable speeds – ideal for 4K/8K streaming, VR/AR applications, and mission-critical connections.
How discreet is the installation of the EAP775-WALL?
The device is designed for very discreet wall mounting. It has a flat profile and comes with an additional cover that can be painted in the respective wall color to make the WiFi Access Point almost visually disappear.
What uplink speed does the EAP775-WALL support?
The WiFi Access Point features a 2.5-Gigabit Ethernet port for the uplink to the Ethernet Switch. This ensures that the high speeds of the Wi-Fi 7 standard are not bottlenecked by a slower 1-Gigabit connection.
