OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.
Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

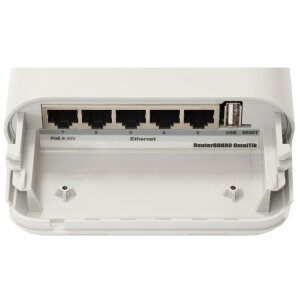

LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.
Technical Data:
| Manufacturer / Model: | Mikrotik / OmniTIK UPA-5HnD |
| Processor: | Atheros AR7241, 400MHz |
| Memory: | 32 MB |
| Frequency: | 5 GHz |
| WiFi Standards: | IEEE 802.11a: 54Mbps IEEE 802.11n: 300Mbps |
| Security: | WEP 64/128/152-bit, WPA/WPA2, WPA-PSK/WPA2-PSK, TKIP/AES |
| TX Power: | max. 26dBm |
| RX Sensitivity: | min. -96dBm |
| Modulation Scheme: | OFDM: BPSK, QPSK, 16 QAM, 64QAM,DSSS: DBPSK, DQPSK, CCK |
| Ethernet Interface: | 5 x 10/100 Ethernet (RJ45, Auto-MDI/X) |
| Antenna: | integrated 7.5dBi Omni Antenna |
| Power Options: | 8-30V passive PoE |
| RouterOS License: | Level 4 |
| Appliance: | In- and Outdoor |
| Dimensions: | 36.8 x 12.5 x 5.5cm |
| Weight: | 0.350 kg |
| Operation Temperature: | -30°C to +70°C |
| Operation humidity: | 0% to 90% (non condensing) |
Scope of delivery:
| 1 x Mikrotik OmniTIK UPA-5HnD |
| 1 x PoE Injector |
| 1 x 24V, 0.38A Power Supply |
| 1 x Mounting Equipment |
