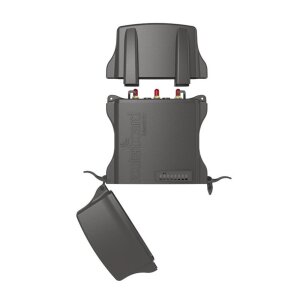

The NetMETAL 5 / RB922UAGS-5SHPacT-NM is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.

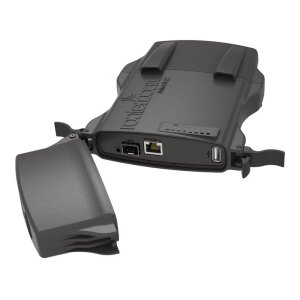

The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
RB921UAGS-5SHPacT-NM version is equipped with Super High power 2000mW 3x3 Tripple Chain 802.11ac wireless and three RP-SMA connectors for external antennas Suggested for High-Speed links on short distances (under 1km)
Technical Data:
| Manufacturer / Model: |
Mikrotik / NetMETAL 5 (RB922UAGS-5SHPacT-NM) |
| Processor: |
QCA9880 5GHz 802.11ac |
| Memory: |
128 MB |
| Frequency: |
5 GHz |
| WiFi Standards: |
IEEE 802.11a
IEEE 802.11n
IEEE 802.11ac |
| Security: |
WEP 64/128/152-bit, WPA/WPA2, WPA-PSK/WPA2-PSK, TKIP/AES |
| TX Power: |
6MBit/s: 33dBm / -96
54MBit/s: 31dBm / -81
MCS0: 33dBm / -96
MCS7: 31dBm / -77
MCS9: 27dBm / -72 |
| Modulation Scheme: |
OFDM: 256-QAM/td>
|
| Ethernet Interface: |
1 x 10/100/1000 Ethernet (RJ45, Auto-MDI/X) |
| SFP Interface: |
1 x SFP cage available |
| MiniPCI-e slots |
No |
| Antenna: |
3 x RP-SMA connector |
| Power Options: |
8-30V passive PoE |
| RouterOS License: |
Level 4 |
| Appliance: |
In- and Outdoor |
| Dimensions: |
14.3 x 24.7 x 4.8 cm |
| Operation Temperature: |
-40°C to +70°C |
| Operation humidity: |
0% to 90% (non condensing) |
Scope of delivery:
| 1 x Mikrotik Net METAL 5 (RB922UAGS-5SHPacT-NM) |
| 1 x PoE Injector |

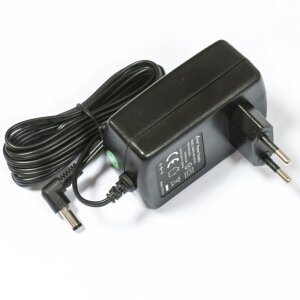

| 1 x 24V, 1.2A Power Supply |
| 1 x Mounting Equipment (miniPCIe mounting screws, DIN rail mount, metal monting ring, 2 x plastic mounting loops) |
