Your Entry into the World of Professional Networks
The MikroTik hAP Lite is more than just a simple Router. It is your personal trainer for Network technology. While initial setup is manageable for beginners thanks to the 'Quick Set' interface, the underlying RouterOS opens up a world of possibilities. Learn how to build secure VPN tunnels, prioritize data traffic with Quality of Service, or create separate Networks for guests and private devices using VLANs. With this device, you gain full control over your Network and the knowledge to use it.

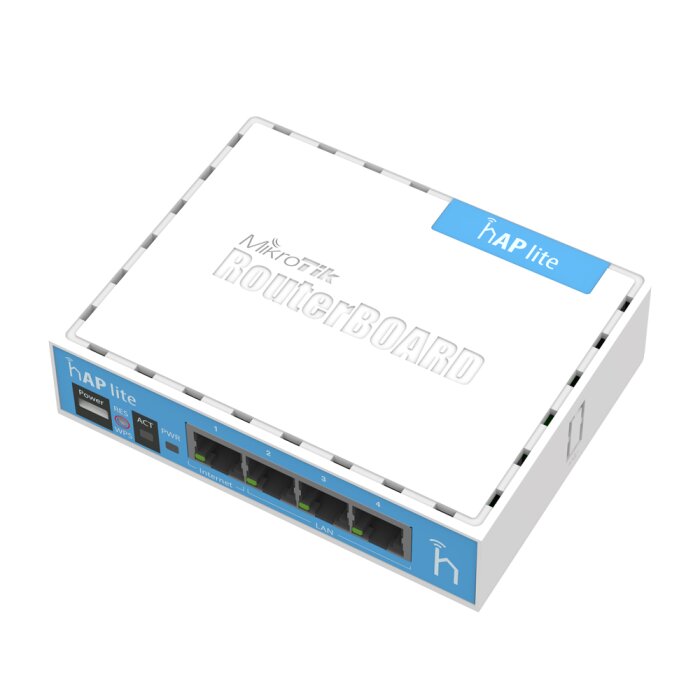

Compact WiFi Router with Maximum Flexibility
Don't be fooled by its size. The hAP Lite in its practical tower case is extremely flexible. In standard mode, it acts as a powerful WiFi Router for your home. With just a few clicks, you can also transform it into a pure WiFi Access Point to extend your existing WiFi. As part of a CAPsMAN system, it can be centrally managed from another MikroTik device – ideal for larger installations. Whether as a WiFi Repeater, WiFi Bridge Set, or as a dedicated device for Network experiments, the hAP Lite adapts to your needs and is therefore much more than just an ordinary Router.
RouterOS Level 4: Enterprise Power for Your Home
The heart of the hAP Lite is its operating system. You receive a pre-installed and lifelong valid RouterOS Level 4 license, which is normally reserved for significantly more expensive devices. This license allows you to operate it as an Access Point, set up a hotspot gateway (e.g., for cafes or guesthouses), and manage a higher number of active users. All future software updates are also free. You invest once and permanently benefit from the full power that makes MikroTik Routers so popular.
Energy-Efficient and Whisper-Quiet: Perfect for Continuous Operation
With a maximum power consumption of just 3.5 watts, the hAP Lite is a true marvel of economy. It not only saves your wallet but also the environment. Power is supplied via a universal MicroUSB port, so you can even operate it mobile with a power bank. Since the device is completely passively cooled, it operates absolutely silently. This makes it the ideal companion on your desk, in the living room shelf, or in the server cabinet, without ever being disturbed by fan noise.
Strengths & Notes at a Glance
- Pro: Extremely powerful and flexible RouterOS (Level 4) included.
- Pro: Unbeatable price-performance ratio for the range of functions.
- Pro: Versatile use as a Router, Access Point, WiFi Repeater, or WiFi Bridge Set.
- Pro: Very low power consumption (max. 3.5W) and practical MicroUSB Power Supply.
- Pro: Absolutely silent operation due to passive cooling.
- Note: Limited hardware resources (32MB RAM), not suitable for high loads.
- Note: Ethernet ports are limited to 100 Mbit/s (Fast Ethernet).
- Note: Supports only the 2.4 GHz WiFi band.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | hAP Lite TC |
| Product Code: | RB941-2nD-TC |
| EAN: | 4752224003126 |
| Device Class: | WiFi Router |
| CPU: | Qualcomm Atheros QCA9533 |
| CPU Architecture: | SMIPS |
| CPU Cores: | 1 |
| CPU Clock Speed: | 650 MHz |
| Switch Chip Model: | QCA9533-BL3A |
| RAM: | 32 MB |
| Storage: | 16 MB |
| Storage Type: | FLASH |
| MTBF: | approx. 100,000 hours at 25°C |
| WiFi Frequency Band: | 2.4 GHz |
| WiFi Standards: | 802.11b/g/n |
| Wi-Fi Generation: | Wi-Fi 4 |
| Maximum WiFi Data Rate: | 300 Mbit/s |
| Number of Chains (Streams): | 2 (Dual Chain / 2x2 MIMO) |
| WiFi Chipset: | QCA9533 |
| Antenna Gain: | 1.5 dBi (integrated PCB Antennas) |
| Supported Encryption: | WEP, WPA, WPA2, WPA3 (depending on RouterOS version) |
| Transmit Power (1 MBit/s): | 22 dBm (~158 mW) |
| Transmit Power (54 MBit/s): | 18 dBm (~63 mW) |
| Transmit Power (MCS7): | 16 dBm (~40 mW) |
| Receive Sensitivity (1 MBit/s): | -96 dBm |
| Receive Sensitivity (54 MBit/s): | -74 dBm |
| Receive Sensitivity (MCS7): | -71 dBm |
| Ethernet Ports: | 4x 10/100 (Fast Ethernet) RJ45-Ports |
| Power Connector: | 1x MicroUSB (for Power Supply only) |
| Operating System: | MikroTik RouterOS |
| RouterOS License Level: | Level 4 (included in purchase price, lifelong valid) |
| Enclosure Variant: | Tower Case (TC) |
| Cooling: | Passive (fanless) |
| Tested Ambient Temperature: | -20°C to 70°C |
| Input Voltage: | 5V DC via MicroUSB |
| Maximum Power Consumption: | 3.5 Watt |
| Certifications: | FCC, IC |
Scope of Delivery
| 1 x MikroTik hAP Lite TC (RB941-2nD-TC) |
| 1 x 5V USB Power Supply (0.7A or 1A) |
Frequently Asked Questions (FAQ)
Is the MikroTik hAP Lite suitable for beginners?
Conditionally. Initial setup can be made easy via a 'Quick Set' interface. However, to fully utilize the potential of RouterOS, some learning time and technical understanding are required. It is less suitable for pure plug-and-play users, but ideal for those willing to learn about Network and MikroTik Routers.
Can I use an internet connection with more than 100 Mbit/s with the hAP Lite?
Yes, but the speed will be limited by the 100 Mbit/s Ethernet Switch ports to approximately 95-98 Mbit/s. You cannot utilize the full speed of your connection as the Ethernet Switch ports are the limiting factor.
Does the hAP Lite support 5 GHz WiFi?
No, this MikroTik Access Points & Router model (RB941-2nD-TC) exclusively supports the 2.4 GHz Components frequency band. For 5 GHz Components functionality, you would need to switch to other MikroTik Routers models like the hAP ac lite or hAP ac².
Do I need to buy a license for RouterOS?
No, the MikroTik Routers device comes with a pre-installed and lifelong valid RouterOS Level 4 license. There are no additional costs for the operating system or for future software updates.
Can I also operate the router with a power bank?
Yes, since the power supply is via a 5V MicroUSB port and the maximum consumption is only 3.5 watts, the MikroTik Routers can be easily operated with a standard power bank. This makes it very flexible for temporary or mobile deployments, enhancing its versatility as a WiFi Router.
What does 'Dual Chain' mean for this device?
'Dual Chain' means that the WiFi Router uses two separate transmit and receive streams (2x2 MIMO). This improves the reliability and throughput of the WiFi Network connection compared to a 'Single Chain' device.
