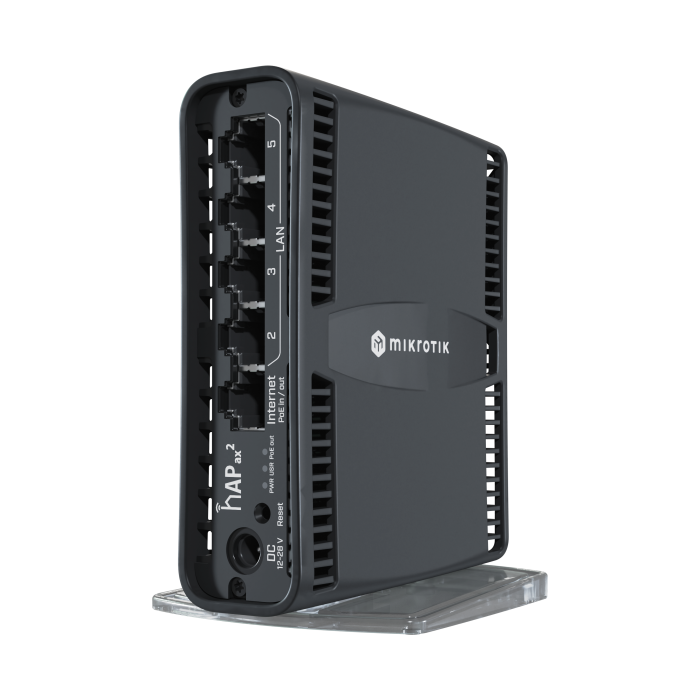

Your Upgrade to Wi-Fi 6: The MikroTik hAP ax²
Are you ready for the next generation of WiFi Routers? The MikroTik hAP ax² brings lightning-fast Wi-Fi 6 directly into your home or small office. Forget overloaded Networks and slow downloads. With the 802.11ax standard, you benefit from higher data rates, better efficiency, and a more stable connection for all your devices – from smartphones to laptops to smart TVs. This compact WiFi Router is the perfect base to future-proof your Network and get the most out of your internet connection.
RouterOS: The Power for Professionals and Ambitious Users
The heart of the hAP ax² is the legendary MikroTik RouterOS. While other Routers limit you with simplified menus, RouterOS gives you ultimate control. Set up complex firewall rules, segment your Network with VLANs, prioritize data traffic with QoS, or build secure VPN tunnels (WireGuard, IPsec) to your office. Even if the abundance of options may seem impressive at first, the “Quick Set” assistant allows for a fast start. For those who want more, the hAP ax² is an endless playground for Network optimizations.
Flexibility through PoE-Out: More Than Just a Router
The hAP ax² thinks ahead. Thanks to its flexible Power Supply, you can power it classically via a power adapter or via Passive PoE Injectors / Power Supplies on Port 1. The real highlight, however, is the PoE Injectors / Power Supplies output on the same port. This allows you to power another PoE Injectors / Power Supplies-capable device, such as one of our IP Cameras or another WiFi Access Points, directly. This saves you a separate power adapter and reduces cable clutter. A clean and professional installation solution that gives you maximum freedom in placing your devices.
Compact Powerhouse for Your Home Network or Office
Don't be fooled by its compact size. Inside the hAP ax² works a powerful Quad-Core CPU, which, together with 1 GB RAM, ensures impressive performance. This hardware power ensures that the Router doesn't break a sweat even with many simultaneous connections and demanding tasks. Hardware acceleration for IPsec-VPNs further offloads the CPU and ensures high throughput rates for secure connections. The hAP ax² is one of the most powerful MikroTik Access Points & Router for the SOHO (Small Office/Home Office) sector.
Strengths & Notes at a Glance
- Pro: Unmatched configurability thanks to RouterOS for power users.
- Pro: Excellent price-performance ratio with Wi-Fi 6, Quad-Core CPU, and 1 GB RAM.
- Pro: Flexible Power Supply via DC or PoE Injectors / Power Supplies-In, as well as practical PoE Injectors / Power Supplies-Out for other devices.
- Pro: Stable performance and IPsec hardware acceleration for secure VPNs.
- Note: The complexity of RouterOS can be a challenge for absolute Network beginners.
- Note: The range is optimized for apartments and small offices; for very large areas, additional WiFi Access Points might be necessary.
Specifications & Properties
| Manufacturer: | MikroTik |
| Model: | hAP ax² |
| Product Code: | C52iG-5HaxD2HaxD-TC |
| EAN: | 4752224007124 |
| Device Classification: | Router with integrated Access Point |
| CPU Architecture: | ARM 64bit |
| CPU Model: | Qualcomm IPQ-6010 |
| Number of CPU Cores: | 4 |
| CPU Clock Frequency: | 864 MHz |
| Switch Chip Model: | IPQ-6010 (integrated) |
| RAM: | 1 GB |
| Storage Size: | 128 MB |
| Storage Type: | NAND |
| Hardware Acceleration: | IPsec |
| WiFi Generation: | Wi-Fi 6 |
| Supported WiFi Standards: | 802.11a/b/g/n/ac/ax |
| WiFi Features: | Wave2, MU-MIMO, Beamforming |
| Total WiFi Speed: | AX1800 |
| WiFi 2.4 GHz Chip: | Qualcomm QCN-5022 |
| WiFi 2.4 GHz Chains: | 2 (Dual-Chain) |
| WiFi 2.4 GHz max. Data Rate: | 574 Mbit/s |
| WiFi 2.4 GHz Antenna Gain: | 4.5 dBi |
| WiFi 5 GHz Chip: | Qualcomm QCN-5052 |
| WiFi 5 GHz Chains: | 2 (Dual-Chain) |
| WiFi 5 GHz max. Data Rate: | 1200 Mbit/s |
| WiFi 5 GHz Antenna Gain: | 4.0 dBi |
| Supported WiFi Encryption: | WEP, WPA, WPA2, WPA3 |
| Ethernet Ports: | 5 x 10/100/1000 (Gigabit) |
| PoE-In: | Yes, on Port 1 (Passive PoE) |
| PoE-In Input Voltage: | 18-28 V |
| PoE-Out: | Yes, on Port 1 (Passive PoE) |
| PoE-Out max. Current per Port: | 600 mA |
| PoE-Out Total Power: | 16.8 W |
| DC Connectors: | 2 (1x DC barrel jack, 1x PoE-IN) |
| Input Voltage (DC): | 12-28 V |
| Included Power Adapter: | 24 V, 1.2 A |
| Max. Power Consumption (without PoE-Out): | 12 W |
| Max. Power Consumption (total): | 27 W |
| Cooling: | Passive |
| Operating System: | MikroTik RouterOS v7 |
| RouterOS License Level: | 4 |
| Dimensions: | 120 x 101 x 37 mm |
| Tested Ambient Temperature: | -40°C to +50°C |
| Protection Class: | IP20 |
| MTBF: | approx. 100,000 hours at 25°C |
| Certifications: | CE, FCC, IC, EAC, ROHS |
Scope of Delivery
| 1 x MikroTik hAP ax² (C52iG-5HaxD2HaxD-TC) |
| 1 x Power Adapter (24V, 1.2A) |
Frequently Asked Questions (FAQ)
Is the MikroTik hAP ax² suitable for beginners?
Only to a limited extent. While the basic configuration is feasible via the 'Quick Set' wizard, utilizing the full range of RouterOS features requires technical knowledge. For users seeking a simple 'plug-and-play' solution, the configuration of this MikroTik Router can be a challenge within your Network.
Can I power another device with the hAP ax²?
Yes, the first Ethernet port (Ether1) supports Passive PoE-Out. You can use it to power a compatible device such as an IP Camera or another WiFi Access Point with up to 16.8 Watts, provided the hAP ax² itself is sufficiently powered, acting as a PoE Injector / Power Supply.
Does the hAP ax² support the latest WiFi security standard WPA3?
Yes, the hAP ax² WiFi Router offers full support for WPA3 encryption, ensuring significantly improved Network security compared to older standards like WPA2.
How fast is the hAP ax²'s WiFi in practice?
Theoretically, it reaches up to 1200 Mbit/s in the 5 GHz Components band and 574 Mbit/s in the 2.4 GHz Components band. Compared to the previous Wi-Fi 5 generation, it offers up to 40% higher speed in the 5 GHz and up to 90% in the 2.4 GHz spectrum, depending on the end device, enhancing your Network performance.
Do I need a separate license for the operating system?
No, this MikroTik Router comes with a pre-installed RouterOS v7 License (Level 4). No additional purchases or subscriptions are necessary for the software functionality.
How do I set up the router for the first time?
After connecting to power and the Network, you can connect to the WiFi network 'MikroTik-...'. Then, open a web browser and go to 192.168.88.1 to access the configuration interface. Alternatively, the 'Winbox' tool can be used for this MikroTik Router.
