The Power of RouterOS: Your Network, Your Rules

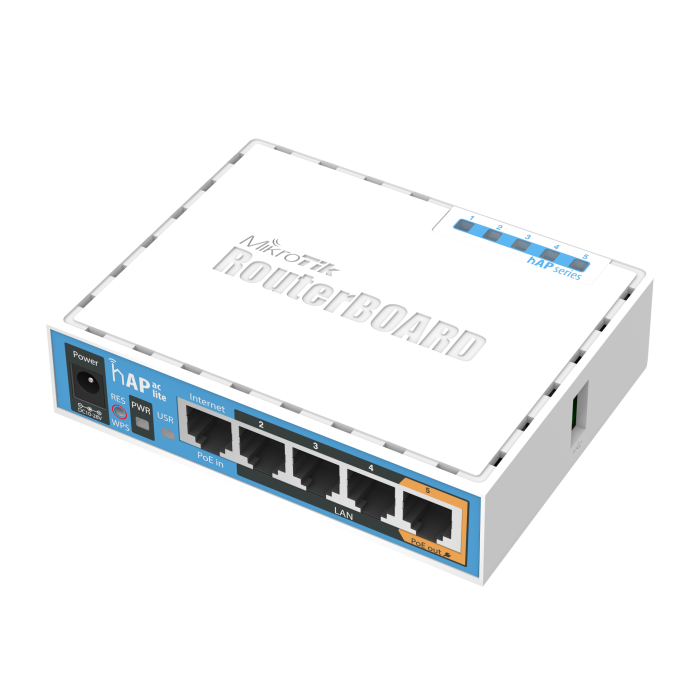

The MikroTik hAP ac Lite is far more than just a simple WiFi Router. Its true strength lies within: the legendary MikroTik RouterOS. This operating system transforms the compact box into a powerful Network tool. You can create detailed Firewall rules, prioritize data traffic with Quality of Service (QoS), establish secure VPN tunnels to your office, or separate networks for guests and private devices via VLANs. For advanced users, even automations via scripting are possible. If you are looking for full control and don't want to be limited by standard interfaces, the hAP ac Lite is your perfect entry into the world of professional Network management.
Flexible Dual-Band WiFi for Home and Office
With support for two frequency bands, the hAP ac Lite ensures that all your devices are optimally connected. The 2.4 GHz band (802.11b/g/n) offers high range and compatibility for older devices and IoT applications. At the same time, the faster 5 GHz band (802.11a/n/ac) provides an interference-free connection and higher data rates for streaming, online gaming, and fast downloads. As a central Router or as a dedicated WiFi Access Point in an existing Network – the hAP ac Lite delivers reliable and flexible wireless coverage for all your requirements.
Ingeniously Practical: Power Supply via PoE-Out
A standout feature of the hAP ac Lite is its passive PoE output on the fifth Ethernet Port. This means you can power another PoE-enabled device, such as an IP Camera or another MikroTik Access Point, directly via the network cable. This saves you an additional Power Adapter and significantly reduces cable clutter. This functionality, usually found only in more expensive devices from the Ethernet Switch sector, makes installations in hard-to-reach places cleaner and easier than ever before.
Always Online with 3G/4G Failover
An Internet outage can quickly become a problem in a home office or small business. The hAP ac Lite offers a smart solution: You can connect a 3G or 4G modem via the integrated USB Port. In RouterOS, this modem can be easily configured as a Backup Internet connection (Failover). If your primary Internet line fails, the Router automatically switches to the mobile data connection. This keeps you online without interruption and allows you to continue working until your main connection is available again.
Strengths & Notes at a Glance
- Pro: Extremely flexible and powerful RouterOS with enterprise features.
- Pro: Excellent price-performance ratio for the range of functions.
- Pro: Practical passive PoE output on Port 5 for powering other devices.
- Pro: Compact design and versatile application possibilities, including 3G/4G Failover.
- Note: The complexity of RouterOS requires some familiarization time for beginners.
- Note: The 10/100 Mbit/s Ethernet Ports are a bottleneck for internet connections over 100 Mbit/s.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | hAP ac Lite |
| Product Code: | RB952Ui-5ac2nD |
| EAN: | 4752224003195 |
| Architecture: | MIPSBE |
| CPU: | Qualcomm Atheros QCA9531 |
| CPU Core Count: | 1 |
| CPU Clock Frequency: | 650 MHz |
| Switch Chip Model: | QCA9531 |
| RAM: | 64 MB |
| Storage Size: | 16 MB |
| Storage Type: | FLASH |
| Operating System: | MikroTik RouterOS |
| RouterOS License Level: | 4 |
| WiFi 2.4 GHz Standards: | 802.11b/g/n |
| WiFi 2.4 GHz Generation: | Wi-Fi 4 |
| WiFi 2.4 GHz Max. Data Rate: | 300 Mbit/s |
| WiFi 2.4 GHz Chains: | 2 (Dual-Chain) |
| WiFi 2.4 GHz Chip Model: | QCA9531 |
| WiFi 5 GHz Standards: | 802.11a/n/ac |
| WiFi 5 GHz Generation: | Wi-Fi 5 |
| WiFi 5 GHz Max. Data Rate: | 433 Mbit/s |
| WiFi 5 GHz Chains: | 1 (Single-Chain) |
| WiFi 5 GHz Chip Model: | QCA9887 |
| Antenna Gain 2.4 GHz: | 1.5 dBi |
| Antenna Gain 5 GHz: | 2 dBi |
| Antenna Beamwidth: | 360° |
| WiFi Encryption: | WEP, WPA/WPA2-PSK, WPA/WPA2-EAP |
| WPA3 Support: | No |
| 2.4 GHz TX (1MBit/s): | 22 dBm |
| 2.4 GHz RX (1MBit/s): | -96 dBm |
| 2.4 GHz TX (11MBit/s): | 22 dBm |
| 2.4 GHz RX (11MBit/s): | -89 dBm |
| 2.4 GHz TX (54MBit/s): | 18 dBm |
| 2.4 GHz RX (54MBit/s): | -74 dBm |
| 2.4 GHz TX (MCS7): | 16 dBm |
| 2.4 GHz RX (MCS7): | -71 dBm |
| 5 GHz TX (6MBit/s): | 23 dBm |
| 5 GHz RX (6MBit/s): | -96 dBm |
| 5 GHz TX (54MBit/s): | 20 dBm |
| 5 GHz RX (54MBit/s): | -80 dBm |
| 5 GHz TX (MCS9): | 17 dBm |
| 5 GHz RX (MCS9): | -70 dBm |
| Ethernet Ports: | 5 x 10/100 (Fast Ethernet) Ports |
| USB Port: | 1 x USB Type A (for 3G/4G Modems) |
| Power Connectors: | DC Jack, PoE-IN (Port 1) |
| Supported Input Voltage: | 10-28 V DC |
| PoE-In: | Passive PoE, 10-28 V (on Port 1) |
| PoE-Out: | Passive PoE (on Port 5) |
| PoE-Out Max. Load: | 500 mA (0.5A) |
| Max. Power Consumption (without PoE load): | 8 W |
| Max. Power Consumption (with PoE load): | 20 W |
| Dimensions: | 113 x 89 x 28 mm |
| IP Protection Class: | IP20 |
| Tested Ambient Temperature: | -30°C to +70°C |
| MTBF: | approx. 100,000 hours at 25°C |
| Certificates: | CE, FCC, IC, EAC, ROHS |
Scope of Delivery
| 1 x MikroTik hAP ac Lite (RB952Ui-5ac2nD) |
| 1 x Power Adapter (24V, 1.2A) |
Frequently Asked Questions (FAQ)
How do I set up the MikroTik hAP ac Lite for home use?
For a basic configuration, connect the MikroTik Router to power and your internet cable to Port 1. Then connect to the "MikroTik-..." WiFi. Open a web browser and go to 192.168.88.1. The "Quick Set" wizard will guide you through the main steps such as country selection, WiFi name (SSID), and password assignment for your Network.
Can the hAP ac Lite power another device via PoE?
Yes, Ethernet Port 5 offers a passive PoE output function. It can power other PoE-enabled devices with the same voltage supplied to the MikroTik Router (up to 500 mA). This is ideal for small IP Cameras or other MikroTik devices, utilizing its PoE Injectors / Power Supplies capability through the Ethernet Switch.
Can I use a 3G/4G USB modem as backup internet?
Yes, the USB port supports many 3G/4G modems. After connecting the modem, it appears as a new interface in RouterOS. You then need to set up a DHCP client or PPP client connection for this interface and create a NAT rule to use it as an internet failover, leveraging the MikroTik Routers for 4G / LTE Routers functionality.
Why is my WiFi speed slow or unstable?
Performance can be affected by several factors. Check channel selection to avoid interference from neighboring WiFi Routers. Since the device only has 10/100 Ethernet Switch ports, the maximum wired speed is limited to approximately 94 Mbps. An update to the latest RouterOS version is recommended for optimal Network performance.
Does the hAP ac Lite support the new WPA3 security standard?
No. WPA3 support in MikroTik RouterOS requires the wifiwave2 software package, which necessitates an ARM CPU. The hAP ac lite is based on a MIPSBE architecture and is therefore not compatible with this package and does not support WPA3 on this MikroTik Router.
What is the difference between the hAP ac lite and the hAP ac² or ac³?
The main differences lie in performance and connectivity. The hAP ac² and ac³ models feature faster Quad-Core ARM CPUs, more RAM, and, most importantly, Gigabit Ethernet Ports (10/100/1000 Mbps), making them better suited for faster internet connections within a Network. The hAP ac lite is the more cost-effective entry-level MikroTik Router.
