Your Network, Reimagined: Performance that Inspires

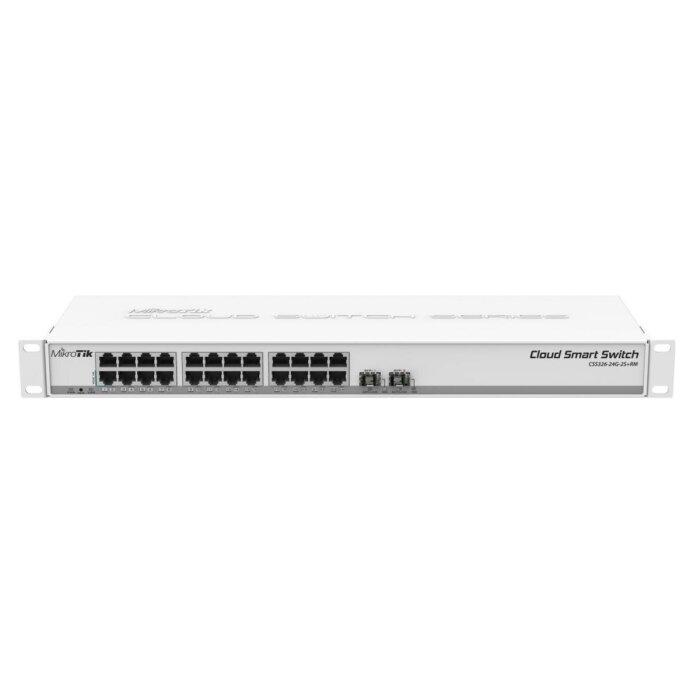

Imagine your Network running smoothly, without bottlenecks and with the necessary power for all your applications. The MikroTik CSS326-24G-2S+RM makes exactly that possible! This Gigabit Switch is not an ordinary Ethernet Switch, but an intelligent control center for your digital life. With 24 1-Gigabit Ethernet ports and two ultra-fast SFP+ Ports for 10 Gigabit Ethernet, you are well-equipped, whether you are moving large amounts of data, streaming high-resolution videos, or operating complex server setups. The integrated Marvell DX Chip ensures impressive Layer 2 Switching capacity and a maximum forwarding rate of 77.4 Mpps, so that every port can operate at full speed.
Smart Management Made Easy with SwOS
Complex Network configurations are a thing of the past! The MikroTik CSS326-24G-2S+RM relies on the sleek and efficient SwOS (SwitchOS) operating system. Via an intuitive web GUI, you have full access to all important functions that a Managed Switch needs. Effortlessly configure VLANs (up to 4K) to segment your network and increase security. Use bandwidth limitation to optimally distribute resources, or employ MAC Filters to keep unwanted devices away. With features like Port Mirroring, you also maintain an overview of your data traffic. Everything you need for professional network management can be found here – simple and effective.
Versatile Application Scenarios for Your Business and Home
The CSS326-24G-2S+RM is a true multi-talent and adapts perfectly to your needs. For small to medium-sized enterprise networks (SMEs) and office environments, it serves as a central distributor, reliably connecting PCs, printers, and IP phones while providing fast uplinks to servers or the core network. This cost-effective switch also shines in home labs and demanding home networks: it provides your workstations and NAS systems with the necessary speed and remains absolutely silent thanks to passive cooling. Even for specialized applications such as out-of-band management in data centers or server racks, it is ideal for aggregating and efficiently managing management interfaces. As you can see, this switch is suitable for almost anything!
Efficiency and Flexibility in 1U Rackmount Format
Your network deserves a solution that is not only powerful but also well-thought-out. The MikroTik CSS326-24G-2S+RM is a Rackmount switch in a compact 1U format that seamlessly integrates into your existing infrastructure. Its passive cooling means you'll never have to worry about fan noise again – a blessing for offices and living spaces. In addition, it is extremely energy-efficient with a maximum power consumption of only 19W. The flexible Power Supply via DC jack or passive PoE-In (10-30V) offers you additional installation freedom, perhaps even in combination with suitable PoE Injectors / Power Supplies. This way, you not only save space but also energy costs, without having to compromise on performance.
Strengths & Notes at a Glance
- Pro: High port density and 10G uplinks at an attractive price: Offers 24 Gigabit Ethernet ports and 2 SFP+ ports for 10-Gigabit connections in a 1U rackmount Enclosure at a very competitive price, making it particularly cost-effective.
- Pro: Passively cooled and silent: The switch operates without fans, making it ideal for environments where noise is undesirable, such as offices or home labs.
- Pro: Comprehensive Layer 2 switching functions with easy management: The SwOS operating system offers basic and advanced switching functions such as VLANs (IEEE 802.1Q, up to 4K), MAC filters, port isolation, bandwidth limitation, port mirroring, and Rapid Spanning Tree Protocol (RSTP) via an intuitive web GUI.
- Note: SwOS operating system only: Unlike MikroTik's CRS models, the CSS326-24G-2S+RM can only run SwOS, not the more feature-rich RouterOS. This means it does not offer Layer 3 routing functions or other advanced RouterOS features.
- Note: External Power Supply and missing serial console port: The use of an external Power Supply can be impractical in rackmount environments, as separate mounting is required. Additionally, a serial console port is missing, which can complicate troubleshooting or initial configuration in certain scenarios.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | CSS326-24G-2S+RM |
| Product Type: | Managed Layer 2 Switch |
| Switch Chip Model: | Marvell 98DX3216 / 98DX3216A1 |
| Ethernet Ports: | 24x 10/100/1000 Mbps Gigabit Ethernet RJ45 |
| SFP+ Ports: | 2x SFP+ Cages (supports 1.25 Gb SFP and 10 Gb SFP+ modules) |
| Operating System: | SwOS (SwitchOS) |
| Storage Size (FLASH): | 2 MB |
| RAM (Switch Chip): | 256 KB |
| Dimensions (HxWxD): | 44 x 443 x 144 mm (1U Rackmount) |
| Mounting: | 19' Rackmount, Desktop |
| Operating Temperature: | -20°C to 70°C |
| DC Inputs: | 2 (DC Jack, PoE-IN) |
| DC Jack Input Voltage: | 10-30 V |
| PoE-In: | Passive PoE (Input Voltage 10-30 V) |
| Max. Power Consumption: | 19 W |
| Cooling Type: | Passive (fanless) |
| Switching Capacity: | 52 Gbps |
| Max. Forwarding Rate: | 77.4 Mpps |
| Host Table: | 16K Entries |
| VLAN Support: | IEEE 802.1Q VLAN (up to 4K simultaneously) |
| Management Functions: | Web-GUI, Port-Forwarding, Bandwidth Limitation, Traffic Mirroring, RSTP, SNMP v1 |
| Console Port: | No |
Scope of Delivery
| 1 x MikroTik CSS326-24G-2S+RM |
| 1 x External Power Supply (24 V DC, 1.2 A) |
| 1 x Rackmount Ears |
Frequently Asked Questions (FAQ)
What is the difference between MikroTik CSS and CRS Switches?
The main difference lies in the operating system and features. Your CSS switches (Cloud Smart Switch) like the CSS326-24G-2S+RM run exclusively on SwOS, a lean operating system optimized for switching. Your CRS switches (Cloud Router Switch) offer a dual-boot option and can run either SwOS or the more feature-rich RouterOS, which also provides you with Layer 3 routing capabilities and advanced network management options.
Does the MikroTik CSS326-24G-2S+RM support PoE (Power over Ethernet)?
The switch supports 'Passive PoE In' via one of its DC inputs (10-30V) to power the device itself. However, it does not offer PoE Out to power other devices.
What type of SFP modules can I use with the CSS326-24G-2S+RM?
The SFP+ cages support both 1.25 Gb SFP modules and 10 Gb SFP+ modules, allowing you flexible connectivity to various fiber optic or copper media (using SFP-RJ45 modules).
How is the MikroTik CSS326-24G-2S+RM managed?
The switch is managed via a web-based graphical user interface (Web-GUI) provided by the SwOS operating system. A command-line interface (CLI) is not available as it does not support RouterOS.
Is the MikroTik CSS326-24G-2S+RM suitable for a data center?
Yes, it can be used in data centers, especially for tasks requiring high throughput and Layer 2 switching, such as top-of-rack switching for servers or as an out-of-band management switch. Its passive cooling and low power consumption are advantageous for your setup.
What is the maximum power consumption of the switch?
The maximum power consumption of your MikroTik CSS326-24G-2S+RM is 19 W.
