LigoWave's DLB 2-14N delivers the highest performance and stability available in the 2.4 GHz CPE class. This product combines a highly advanced radio core containing MIMO 2x2 technology with an integrated, high-gain, dual polarization directional antenna. The feature-rich operating system is optimized for ultra-high performance wireless communications while optionally allowing compatibility with older 802.11n standard devices.
The smart dynamic polling based protocol (iPoll 2) ensures reliable communication even in congested areas with 64 client devices connected to a base-station.
Equipped with LigoWave's dual firmware image feature, remote software upgrades are assured even if a power failure interrupts the process. The device will restart using the prior firmware in the event of an upgrade failure.
The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DLB 2-14N was designed and tested to meet an IP-66 rating as well as vibration, temperature, drop, salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry. It is equipped with a grounding lug and a grounded 24-volt PoE to allow a professional installation, resistant to electrical surges.
The DLB OS is a highly functional and easy to use operating system. This powerful and flexible operating system ensures flawless operation of all DLB hardware devices and effortless nsetup for those deploying the networks.
- 2.402 - 2.492 GHz support
- 80,000 PPS
- 170 Mbps capacity
- High output power 31 dBm radio
- Integrated 9 dBi directional panel antenna
- Powerful OS
- Smart polling data transmission protocol (iPoll 2)
- Weather proof (IP-65 rated) design
- Free WNMS (WNMS – Wireless Network Management System)
- Responsive HTML 5 based GUI

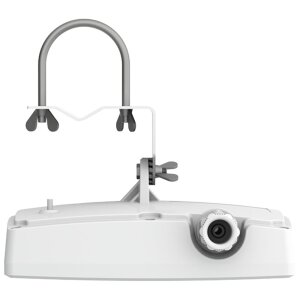

- Wall and pole mounting option
Highly directional dual-polarized and high-gain antenna makes the DLB 2-14N device noise immune and suitable for high-density wireless deployments.
Usage recommendation:- PTP mode (two DLB 2-14N devices): 10 km / 6.21 mi
- PTMP mode (DLB 2-14N as a client device): 7 km / 4.35 mi
- PTP full capacity mode (two DLB 2-14N devices): 8 km / 4.97 mi
Maximum throughput: 170 Mbps
All LigoWave DLB series devices can be managed and monitored using WNMS (Wireless Network Management System). A single software solution simplifies a large number of tasks for network administrators. WNMS Cloud version is available for those who are not willing to run it on an in-house servers.
Technical Data:
| Manufacturer / Product: | LigoWave / LigoDLB 2-14N |
| Frequency Band: | 2.402 - 2.492 GHz |
| Antenna: | Integrated 14dBi directional dual-polarized panel |
| Polarisation: | Dual linear |
| Cross-pol Isolation: | 38dBi |
| VSWR: | max. 1.8:1 |
| H-pol beamwidth (6 dB): | 34° |
| V-pol beamwidth (6 dB): | 36° |
| Elevation beamwidth: | 36° |
| Supported WiFi Standards: | IEEE 802.11b: 11Mbps IEEE 802.11g: 54Mbps IEEE 802.11n: 300Mbps |
| Operation modes: | Access point (auto WDS), access point (iPoll 2), station (WDS, iPoll 2), station (ARP NAT) |
| TX Power: | max. 31dBm |
| RX Sensitivity: | -96 to -74 dBm |
| TCP/IP Throughput: | 170 Mbps |
| Radio mode: | MIMO 2x2 |
| Channel Size: | 5, 10, 20, 40 MHz |
| Modulation Scheme: | 802.11 g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 b: DSS (CCK, DQPSK, DBPSK) |
| Error Correction: | FEC, Selective ARQ |
| Networking Interface: | 1 x 10/100 BASE-TX (Cat. 5, RJ-45) |
| max. Power Consumption: | 4,5 Watt |
| Power Input: | 12-24V passive PoE (24V PoE Injector included) |
| Appliance: | In- and Outdoor (IP66) |
| Dimensions: | 20.5cm x 20.5cm x 4.5cm |
| Weight: | 0.7 kg |
| IP Protection Class: | IP66 |
| Operating Temperature: | -40°C to +65°C |
| Operating Humidity: | 0% to 90% (non-condensing) |
Scope of delivery:
| 1 x LigoWave LigoDLB 2-14N |
| 1 x 24V Passiv Power-over-Ethernet Injector (including lightning protection) |
| 1 x Mounting Equipment |
