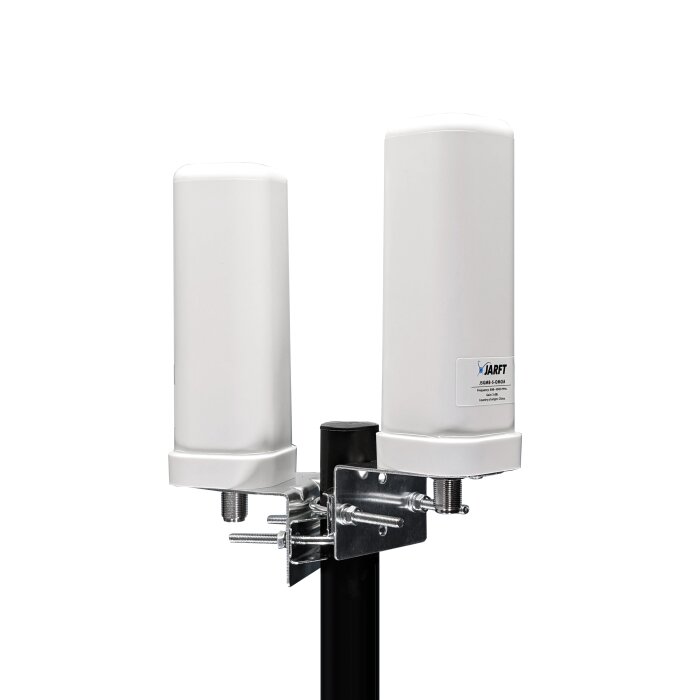

The JARFT Multiband Antenna J5GMB-5-OMOA is designed for all LTE, 5G, UMTS, and even WLAN frequency bands used in Germany and Europe. The antenna can be used universally and increases the range, signal strength, and transmission rate of your data connection with a gain of up to 5dBi. It doesn't matter which provider you have a contract with. The antenna can easily be connected to an LTE or 5G router with the appropriate antenna cable.
The JARFT J5GMB-5-OMOA withstands any weather conditions and can be used outdoors as an outdoor antenna without any problems. Placing the antenna outdoors is even very beneficial for optimal amplification. Ideally, the 5G antenna is mounted in a way that minimizes obstacles such as house walls, trees, etc., between the antenna and the transmitter mast. Due to the omnidirectional characteristic of the LTE/5G antenna, it does not need to be separately aligned but can be simply mounted.

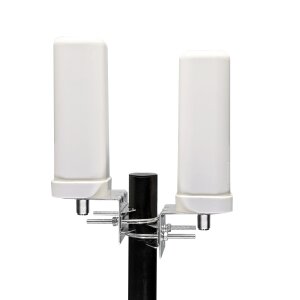

A mounting kit is included in the scope of delivery. The 5G antenna can be mounted on a mast or appropriate bracket using pipe clamps. Additionally, the mounting system allows for direct installation on a wall.
Technical Specifications:
| Manufacturer / Model: | JARFT / J5GMB-5-OMOA |
| Type: | Omnidirectional Antenna |
| Gain: | 3.5dBi @ 698-960 MHz 4dBi @ 1710-2700 MHz 5dBi @ 3400-4000 MHz |
| Impedance: | 50 Ohms |
| Frequency Range: | 698 - 4000 MHz |
| VSWR: | max. 1.8 |
| Polarization: | Vertical |

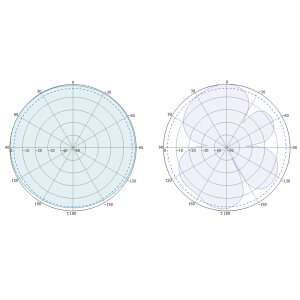

| Signal Coverage (H): | 360° Horizontal |
| Signal Coverage (V): | 35-45° Vertical |
| Connector: | N Female |
| Application Area: | Indoor and Outdoor |
| Operating Temperature: | -50° to 70° C |
| Dimensions: | 21.1 x 5.7 x 6.7 cm (per antenna) |
| Weight: | 610g including mounting accessories (per antenna) |
| Color: | White |
Scope of Delivery:
| 1 x JARFT J5GMB-5-OMOA LTE / 5G Antenna Set |
| Mounting accessories for mast or wall mounting |
