Your Network Upgrade: WiFi 6 for Highest Client Density

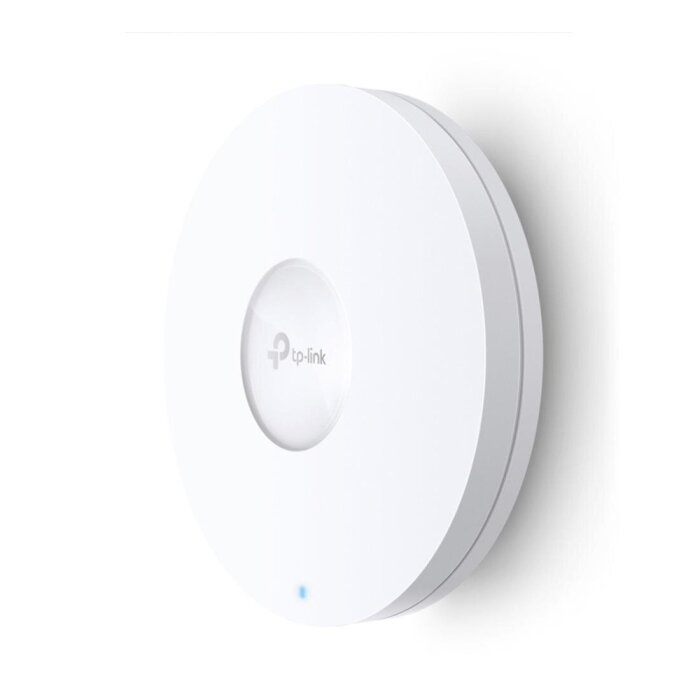

The name says it all: the 'HD' in EAP620 HD stands for 'High-Density'. This WiFi Access Point is the answer to overloaded Networks in offices, schools, hotels, or event venues. Thanks to the latest WiFi 6 standard with technologies like OFDMA and MU-MIMO, data streams are distributed to many devices simultaneously and highly efficiently. The result is drastically improved performance and up to four times higher capacity. Finally, a WiFi Network that doesn't falter when it matters most.
Full Control with Omada SDN: Centrally Managed WiFi
The EAP620 HD is more than just a single WiFi Access Point; it is part of the intelligent TP-Link Omada SDN (Software Defined Networking) ecosystem. For you, this means: you can manage this and hundreds of other WiFi Access Points, gateways, and every Ethernet Switch in the Omada family via a single, intuitive interface. Whether you install the free controller software on a local server, use a power-efficient hardware controller (OC200/OC300), or choose the full convenience of cloud access – you have your entire Network under control anytime, anywhere.
Thoughtful Design, Flexible Installation
A powerful WiFi Access Point should blend seamlessly into its environment. With its slim, unobtrusive design (only 33.6 mm high) and the included Mounting Systems, the EAP620 HD can be easily installed on ceilings or walls. The Power Supply is maximally flexible: either use a PoE+ (802.3at) capable Ethernet Switch to deliver power and data over a single Network Cable, or use the included DC power adapter. Professional Network expansion hardly gets any easier.
Enterprise-Level Security and Efficiency
In addition to pure speed, the EAP620 HD offers professional features that make your Network more secure and efficient. Support for the latest WPA3 encryption standard protects your data from attacks. Intelligent features like Band Steering automatically direct dual-band capable devices to the faster 5 GHz band, while Airtime Fairness improves overall performance by preventing older devices from slowing down the entire Network. With up to 16 different SSIDs, you can also create clear separations between guest, employee, and IoT networks.
Strengths & Notes at a Glance
- Pro: Offers advanced WiFi 6 features and central management at an excellent price-performance ratio.
- Pro: Specifically designed for environments with very high device density to ensure stable performance for hundreds of clients.
- Pro: Maximum flexibility during installation through support for 802.3at PoE+, passive PoE, and an included DC power adapter.
- Pro: Seamless integration into the scalable Omada SDN ecosystem for easy, central management from anywhere.
- Note: The single Gigabit Ethernet Port can limit the theoretical WiFi speed of 1775 Mbps during extremely high data throughput.
- Note: For absolute top speeds over long distances, higher-end models like the EAP660 HD are more suitable.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | Omada EAP620 HD |
| EAN: | 6935364030742 |
| Device Type: | WiFi Access Point |
| Platform: | TP-Link Omada SDN |
| Chipset: | Enterprise-Class Chipset |
| Frequency Bands: | Dual-Band: 2.4 GHz and 5 GHz |
| WiFi Standards: | IEEE 802.11ax/ac/n/g/b/a |
| Max Data Rate (Total): | 1775 Mbit/s (AX1800) |
| Max Data Rate (5 GHz): | Up to 1201 Mbit/s |
| Max Data Rate (2.4 GHz): | Up to 574 Mbit/s |
| Antenna Type: | Internal Omni-Directional Antennas |
| Number of Antennas: | 4 (2x2 MU-MIMO for each band) |
| Antenna Gain (2.4 GHz): | 2x 4 dBi |
| Antenna Gain (5 GHz): | 2x 5 dBi |
| Transmit Power CE (2.4 GHz): | <20 dBm (EIRP) |
| Transmit Power CE (5 GHz, Band 1&2): | <23 dBm (EIRP) |
| Transmit Power CE (5 GHz, Band 3): | <30 dBm (EIRP) |
| WiFi Encryption: | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| WiFi Features: | OFDMA, MU-MIMO (Up- and Downlink), 1024-QAM, Seamless Roaming (802.11k/v), Omada Mesh, Band Steering, Load Balancing, Airtime Fairness, Beamforming |
| Number of SSIDs: | Up to 16 (8 per frequency band) |
| Network Port: | 1x Gigabit Ethernet (RJ-45) Port |
| Power Supply (PoE+): | 802.3at PoE+ |
| Power Supply (Passive PoE): | 48V Passive PoE |
| Power Supply (DC Adapter): | 12V / 1.5A (power adapter included) |
| Power Consumption (EU, PoE): | 14.4 W |
| Power Consumption (EU, DC): | 13.1 W |
| Power Consumption (Idle): | 7.35W (PoE), 6.45W (DC) |
| Management: | Omada Cloud Controller, Omada Hardware Controller (OC200/OC300), Omada Software Controller, Standalone Mode (Web UI/App) |
| Dimensions (W x D x H): | 160 x 160 x 33.6 mm |
| Weight: | approx. 380 g |
| Mounting: | Ceiling/Wall Mount (Mounting Kits included) |
| Certifications: | CE, FCC, RoHS |
| Operating Temperature: | 0°C to 40°C |
| Operating Humidity: | 10% to 90% non-condensing |
Scope of Delivery
| 1 x TP-Link Omada EAP620 HD Access Point |
| 1 x 12V / 1.5A DC Power Adapter |
| 1 x Ceiling/Wall Mounting Kit |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
Can the TP-Link EAP620 HD be operated without a controller?
Yes, the EAP620 HD can be operated in standalone mode and configured via its own web interface or the Omada App. However, for advanced features such as seamless roaming and central management, the use of a TP-Link Omada Controller is recommended for your Network.
What does "HD" mean in the EAP620 HD?
"HD" stands for "High-Density". This means the WiFi Access Point was specifically designed to provide stable and efficient performance in environments with many concurrently connected WiFi devices, supported by technologies like OFDMA and MU-MIMO within your Network.
Do I need a special PoE Switch for the EAP620 HD?
Yes, for power supply via the network cable, an Ethernet Switch or PoE Injectors / Power Supplies that supports the 802.3at (PoE+) standard is required. An older 802.3af (PoE) Switch will not provide enough power. Alternatively, the included 12V power adapter can be used.
Does the EAP620 HD support WPA3 encryption?
Yes, the WiFi Access Point supports the latest security standards, including WPA3-Personal and WPA3-Enterprise, offering higher security compared to WPA2 for your Network.
What is the advantage of Omada Mesh?
The TP-Link Omada Mesh technology allows multiple Omada WiFi Access Points to be connected wirelessly. This is ideal for extending WiFi coverage in areas where laying an Ethernet Cable is difficult, enhancing your Network.
How many SSIDs (WiFi names) can I create?
The EAP620 HD supports the creation of up to 16 SSIDs (8 per frequency band), allowing for easy separation of networks for guests, employees, and IoT devices on your Network.
