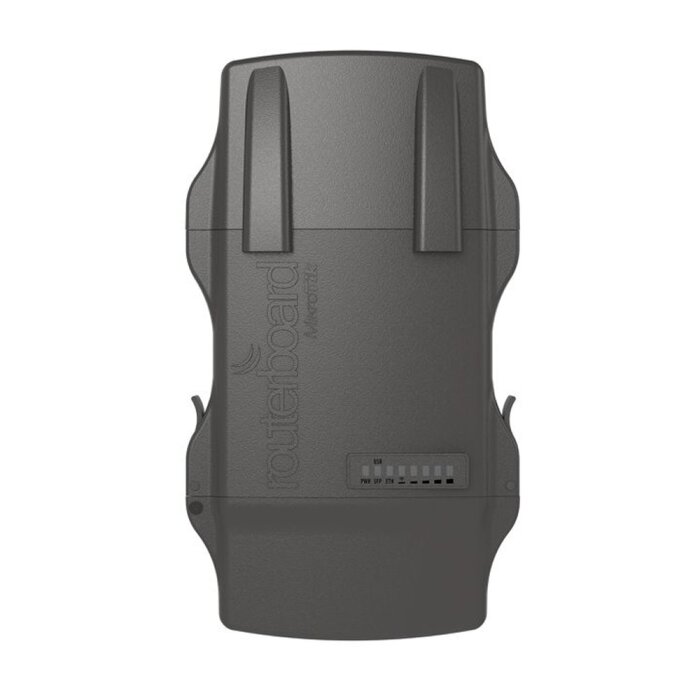

Built for Eternity: The Indestructible Metal Casing
The NetMetal 5 lives up to its name. The housing is not just a shell, but a statement. Made from solid die-cast aluminum, it not only reliably protects the sensitive electronics from dust and splashing water (IP54), but also functions as a gigantic heat sink. This enables stable continuous operation even at extreme temperatures from -40°C to +70°C and at full transmission power. Whether on a mast in a snowstorm or on a sun-exposed house wall – this device is reliable.
Maximum Performance for Demanding Point-to-Point Radio Links
When every decibel counts, the NetMetal 5 shows its strengths. With a transmission power of up to 31 dBm and excellent reception sensitivity of -96 dBm, it is the ideal basis for stable Point-to-Point connections over several kilometers. In combination with the suitable 5 GHz Directional Antennas from our range, you can build powerful WiFi Bridge Sets that reliably transmit high data rates. The QCA9882 WLAN chipset ensures efficient 802.11ac performance with up to 867 Mbit/s.
Borderless Connectivity: Fiber Optic, Gigabit LAN, and 4G Backup
Flexibility is the key to a modern Network. In addition to the obligatory Gigabit Ethernet Port, the NetMetal 5 also offers an SFP cage. With suitable SFP / SFP\+ Modules, you can realize a direct fiber optic connection, thus bypassing interference and distance limitations of copper cables. The absolute highlight, however, is the integrated MiniPCIe slot in combination with a SIM card slot. Equip it with a modem card, and you have a reliable 4G fallback for your internet connection – an invaluable advantage for critical applications.
Full Control: Unleash the Potential with RouterOS
This device is not a toy, but a professional tool for Network administrators. The pre-installed MikroTik RouterOS Level 4 license gives you the freedom to configure almost every aspect of your Network. Create complex firewall rules, manage bandwidth with QoS, build secure VPN tunnels, or use advanced routing protocols. This depth of configuration options makes MikroTik products the first choice for professionals who need a customized Network solution and are unwilling to compromise.
Strengths & Notes at a Glance
- Pro: The IP54-certified full metal housing reliably protects against weather influences and serves as a massive passive heat sink for stable operation at high temperatures.
- Pro: Offers, in addition to Gigabit Ethernet, an SFP Port for fiber optic and a MiniPCIe/SIM slot for an optional 4G Modem as a backup connection.
- Pro: With up to 31 dBm (1.25 Watt) transmission power, ideal for demanding Point-to-Point connections over long distances.
- Pro: The RouterOS Level 4 license enables extremely granular configuration of firewall, QoS, VPN, and routing for professional users.
- Note: The complexity of RouterOS can be overwhelming for beginners and requires Network knowledge for optimal configuration.
- Note: During installation, careful sealing, especially in the area of the status LEDs, should be ensured to prevent any moisture ingress.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | NetMetal 5 |
| Product Code: | RB922UAGS-5HPacD-NM |
| EAN: | 4251028603025 |
| Product Classification: | Wireless System (AP / CPE / PtP) |
| CPU: | Qualcomm Atheros QCA9557 |
| CPU Architecture: | MIPSBE |
| CPU Cores: | 1 |
| CPU Clock Frequency: | 720 MHz |
| RAM: | 128 MB DDR2 |
| Storage (NAND): | 128 MB |
| Operating System: | MikroTik RouterOS |
| RouterOS License: | Level 4 |
| WLAN Frequency Range: | 5 GHz |
| WLAN Standards: | 802.11a/n/ac |
| WLAN Generation: | Wi-Fi 5 |
| WLAN Chipset: | Qualcomm Atheros QCA9882 |
| Number of Chains: | 2x2 MIMO (Dual Chain) |
| Maximum WLAN Data Rate: | 867 Mbit/s |
| Supported Channel Widths: | 20 / 40 / 80 MHz |
| WLAN Encryption: | WEP, WPA, WPA2, WPA3 (from RouterOS v7.13+) |
| Antenna Connectors: | 2 x RP-SMA Female |
| Transmit Power (6 Mbit/s): | 31 dBm |
| Receive Sensitivity (6 Mbit/s): | -96 dBm |
| Transmit Power (54 Mbit/s): | 27 dBm |
| Receive Sensitivity (54 Mbit/s): | -81 dBm |
| Transmit Power (MCS0): | 30 dBm |
| Receive Sensitivity (MCS0): | -96 dBm |
| Transmit Power (MCS7): | 27 dBm |
| Receive Sensitivity (MCS7): | -77 dBm |
| Transmit Power (MCS9): | 22 dBm |
| Receive Sensitivity (MCS9): | -72 dBm |
| Gigabit Ethernet Ports: | 1 x 10/100/1000 Mbit/s |
| SFP Ports: | 1 x SFP |
| USB Ports: | 1 x USB 2.0 Type A |
| Expansion Slots: | 1 x MiniPCIe |
| SIM Card Slot: | 1 x Mini-SIM (2FF) |
| Power Supply: | Passive PoE-IN |
| PoE Input Voltage: | 8 - 30 V DC |
| Maximum Power Consumption: | 19 W |
| Housing Material: | Die-cast Aluminum |
| IP Protection Class: | IP54 |
| Tested Ambient Temperature: | -40°C to +70°C |
| Dimensions: | 143 x 247 x 48 mm |
| Weight: | 865 g |
| Certifications: | CE, FCC, IC, EAC, ROHS |
| MTBF: | approx. 200,000 hours at 25°C |
| Additional Features: | Beeper, Status LEDs, Voltage & Temperature Monitoring |
Scope of Delivery
| 1 x MikroTik NetMetal 5 (RB922UAGS-5HPacD-NM) |
| 1 x 24V 1.2A Power Adapter |
| 1 x Gigabit PoE Injector |
| 1 x DIN Rail Mount |
| 1 x Metal Hose Clamp |
Frequently Asked Questions (FAQ)
Can I use the MikroTik NetMetal 5 as a regular WiFi Router for home?
While technically possible, it is not recommended. The device is designed for outdoor use and specific scenarios such as point-to-point wireless links or large-area Access Point coverage. The configuration is complex and not intuitive for home users. For home Network setups, dedicated WiFi Routers are more suitable.
Which Antennas do I need for the NetMetal 5?
You need external 5 GHz Antennas with RP-SMA connectors. For Point-to-Point connections, parabolic or grid 5 GHz Directional Antennas are suitable. For 360° coverage as an Access Point, 5 GHz Omni-Directional Antennas are required.
Is the NetMetal 5 compatible with the new Wi-Fi 6 (802.11ax) standard?
No, this model supports Wi-Fi 5 (802.11ac). For Wi-Fi 6 functionality, you would need to switch to a newer MikroTik model like the NetMetal ax.
How is the NetMetal 5 powered?
Power is supplied exclusively via Passive Power over Ethernet (PoE) with a voltage between 8V and 30V. A suitable Gigabit PoE Injector and a Power Supply are included in the scope of delivery. These PoE Injectors / Power Supplies ensure reliable operation.
Does the NetMetal 5 support WPA3 encryption?
Yes, the hardware is capable of this. WPA3 support was introduced in MikroTik RouterOS Version 7. You must ensure that an up-to-date RouterOS version (v7.13+) is installed on the device to utilize this security feature.
What does the RouterOS 'Level 4' license mean?
Level 4 is a mid-level license tier for MikroTik. It allows the device to operate as an Access Point, supports an unlimited number of interfaces, and permits up to 200 active users for services like hotspots or VPN. This is ideal for expanding your Network with MikroTik Access Points & Router functionality.
