Wi-Fi 6 for Long-Haul: Your Stable Wireless Bridge
The MikroTik LHG-5axD-XL raises the bar for wireless connections to a new level. Thanks to the implementation of the modern Wi-Fi 6 (802.11ax) standard, you benefit from significantly higher spectral efficiency. This specifically means: more data throughput, more stable connections, and lower latency, even when other radio networks in the vicinity interfere. Ideal for demanding applications such as transmitting IP Cameras, setting up backhaul connections, or providing remote locations with fast internet. This device is a core component of professional MikroTik Wireless Systems.
Maximum Range thanks to 27 dBi High-Gain-Antenna

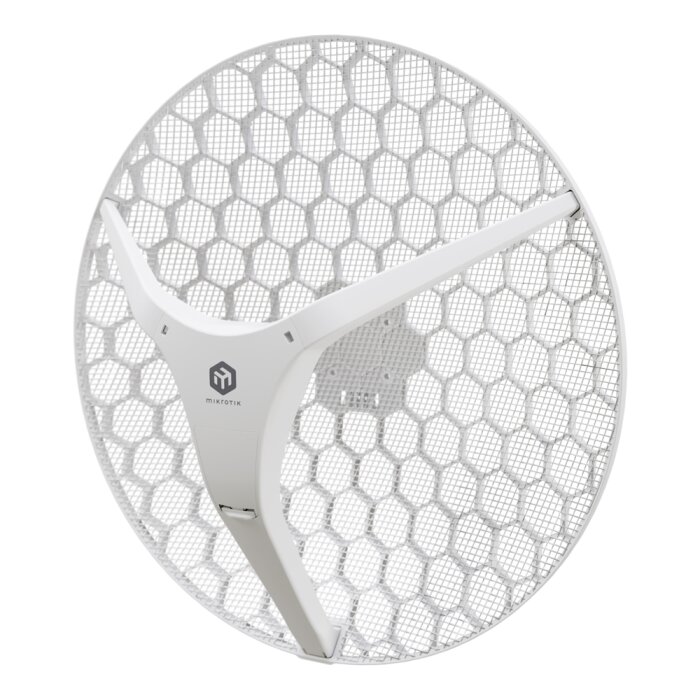

The heart of the LHG-5axD-XL is its impressive 27 dBi grid Antenna. This Antenna focuses the transmit and receive power into an extremely narrow beam of only 7 degrees. This 'spotlight effect' makes it possible to realize Point-to-Point connections over extreme distances that would be unthinkable with conventional devices. Precise alignment is the key to success, but it rewards you with a rock-solid connection that withstands wind and weather. For such setups, specialized 5 GHz Antennas are the first choice.
Built for Any Weather: Robustness in Detail
A device designed for outdoor use must withstand a lot. MikroTik built the LHG-5axD-XL exactly for this. The housing is IP54 certified, protecting it against dust and splash water. The extreme operating temperature range of -40°C to +70°C guarantees reliable function in freezing cold winter and scorching summer heat. Power is supplied cleverly and simply via Passive PoE (Power over Ethernet) with the included Gigabit PoE Injector, so only a single Ethernet Cable needs to be laid to the Antenna.
The Power of RouterOS v7: Full Control for Professionals
While the hardware impresses, the software is the brain of the system. With RouterOS v7, you have access to an extremely powerful and flexible operating system that enjoys a legendary reputation in the world of Network administrators. Configure complex firewall rules, set up VPN tunnels, manage bandwidth down to the smallest detail, or monitor connection quality in real-time. License Level 3 is perfect for use as a Client (CPE) in Point-to-Point or Point-to-Multipoint scenarios. This is not a plug-and-play device for beginners, but a professional tool for demanding Network projects.
Strengths & Notes at a Glance
- Pro: Extreme range and signal strength thanks to 27 dBi High-Gain-Antenna.
- Pro: Modern Wi-Fi 6 technology for higher efficiency and lower latency.
- Pro: Very robust, weatherproof (IP54) and designed for a wide temperature range.
- Pro: Extremely energy-efficient with only 5W maximum power consumption.
- Pro: Powerful and flexible RouterOS v7 for professional configurations.
- Note: RouterOS configuration is very complex and requires Network knowledge.
- Note: Suitable exclusively for directional radio links, not for 360° WiFi coverage of a house.
Specifications & Features
| Manufacturer: | MikroTik |
| Item Name: | LHG-5axD-XL |
| EAN: | 4752224009661 |
| Product Code: | LHG-5axD-XL |
| Device Type: | Outdoor WiFi CPE (Customer Premises Equipment) |
| Function: | Client device for PtP/PtMP radio links |
| Frequency Band: | 5 GHz (5150 - 5875 MHz) |
| WiFi Standards: | 802.11ax (Wi-Fi 6), 802.11ac, 802.11n, 802.11a |
| Antenna Gain: | 27 dBi |
| Antenna Type: | Integrated Grid Antenna, dual-polarized |
| Beamwidth: | approx. 7° |
| Number of Chains: | 2 (2x2 MIMO) |
| Maximum Wireless Data Rate: | 1200 Mbit/s |
| CPU Model: | Qualcomm IPQ-5010 |
| CPU Architecture: | ARM 32bit |
| CPU Cores: | 2 (Dual-Core) |
| CPU Clock Frequency: | 800 MHz |
| Wireless Chip Model: | QCN-6102 |
| RAM: | 256 MB |
| Storage: | 128 MB, NAND |
| Operating System: | MikroTik RouterOS v7 |
| RouterOS License Level: | 3 |
| Ethernet Ports: | 1x 10/100/1000 (Gigabit) Ethernet Port |
| Power Supply: | Passive PoE (Power over Ethernet) |
| PoE Input Voltage: | 12 - 28 V DC |
| Maximum Power Consumption: | 5 W |
| Operating Temperature: | -40°C to +70°C |
| Protection Class: | IP54 (Dust and Splash Water Protected) |
| MTBF: | approx. 200,000 hours at 25°C |
| WiFi Encryption: | WPA3, WPA2, WPA |
| Certificates: | CE, FCC, IC, EAC, ROHS |
| Dimensions: | 550 x 245 mm (Diameter x Depth) |
Scope of Delivery
| 1 x MikroTik LHG-5axD-XL |
| 1 x 24V 0.38A Power Adapter |
| 1 x Gigabit PoE Injector |
| 1 x Mounting Material (Clamps) |
Frequently Asked Questions (FAQ)
Can I use the MikroTik LHG-5axD-XL as a normal WiFi Router for my home?
No, that is not its intended purpose. This MikroTik device generates a very narrow, directional radio beam (similar to a spotlight) for long distances and not broad coverage for end devices like smartphones or laptops within a home. It's designed for point-to-point Network connections rather than general WiFi Access Points.
What is the difference between the LHG-5axD and the LHG-5axD-XL?
The main difference is the Antenna gain. The XL model (LHG-5axD-XL) features a larger 27 dBi Antenna for maximum range, while the standard model (LHG-5axD) has a 24.5 dBi Antenna for shorter, yet still long, distances. These are specialized 5 GHz Antennas.
How is the LHG-5axD-XL powered?
Power is supplied exclusively via the included Ethernet Cables using Passive Power over Ethernet (PoE). A PoE Injector / Power Supply and a power adapter are included, meaning only a single Cabling needs to be run to the outdoor device.
Is the device weatherproof?
Yes, it has an IP54 protection rating, meaning it is protected against dust and splashing water from all directions. It is designed for permanent outdoor use in temperatures ranging from -40°C to +70°C, suitable for robust Network installations.
What maximum speed can I expect in practice?
The maximum theoretical wireless data rate is 1200 Mbit/s. The actual TCP/IP throughput over the Gigabit Ethernet port is lower in practice and heavily depends on distance, signal quality, and interference. Realistic values often range from 500-800 Mbit/s under good conditions, making it a powerful component for a high-speed Network.
Do I need two of these devices to establish a connection?
Yes, for a point-to-point wireless bridge (e.g., to connect two buildings), you need two identical MikroTik devices. One is configured as an Access Point (bridge mode) and the other as a Client (station mode), and they must be precisely aligned. This setup is ideal for extending a Network over long distances.
