Your Upgrade: 24 Gigabit Ports and 10G SFP+ Uplinks

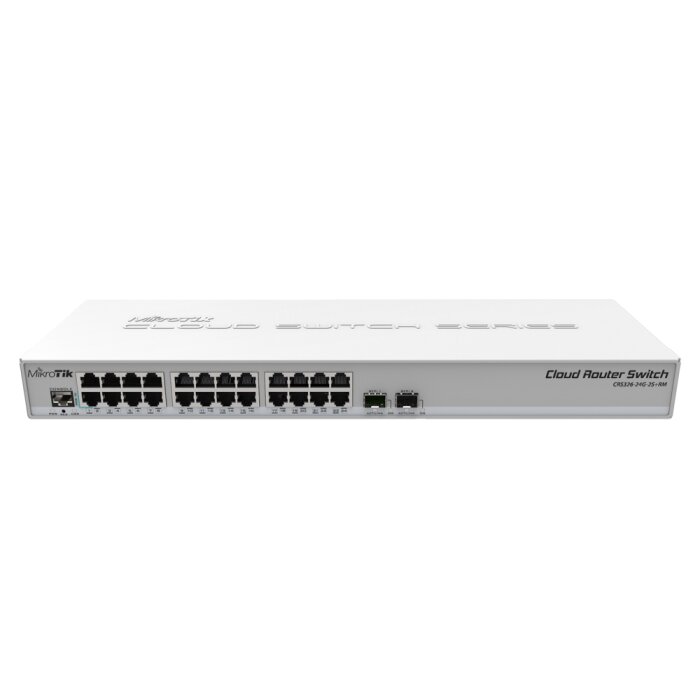

No more bottlenecks in your Network. The MikroTik CRS326-24G-2S+RM is the central hub that elevates your Network to the next level. With 24 Gigabit Ethernet ports, you have more than enough connections for all your PCs, printers, IP Cameras, and other devices. The two 10G SFP+ Ports are the real highlight: connect your main server or NAS at full 10-Gigabit speed and eliminate bottlenecks during large data transfers, backups, or video streaming. This managed 10G uplink Ethernet Switch is the perfect basis for a future-proof and high-performance Network.
Absolute Silence: The Fanless Ethernet Switch for Office & Home Lab
Noise in the office or study is a real concentration killer. The CRS326 was developed with an intelligent, passive cooling concept and operates completely without fans. The result: absolutely silent operation. This makes it the first choice for use directly at the workplace, in recording studios, living rooms, or small Network cabinets, where every decibel counts. Enjoy the silence and the certainty that your Network runs reliably and without disturbing background noise. It is the ideal MikroTik Switch for homelab enthusiasts who demand performance without noise pollution.
SwOS or RouterOS? The Choice is Yours!
MikroTik gives you ultimate flexibility. With the unique Dual-Boot function, you decide which operating system best suits your requirements. For straightforward use as a pure Layer-2 Ethernet Switch, you boot into SwOS. Via a simple web interface, you can configure VLANs, Port Mirroring, or bandwidth limits in no time. However, if you need the full power of Layer-3 functions, you simply boot into RouterOS. This transforms the Ethernet Switch into a powerful Network tool with Routing, Firewall, VPN server, and countless other professional features. This flexibility makes it a true all-rounder.
More Than Just a Switch: Routing Functions for Your Network
While the CRS326 excels as a Layer-2 Ethernet Switch with wire-speed performance, it has much more to offer thanks to RouterOS. You can use it as a central Router for small to medium-sized Networks, set up Inter-VLAN Routing to securely separate your Network segments, or create detailed Firewall rules. It also performs well as a VPN endpoint for secure remote access. For maximum performance, pure Ethernet Switching tasks are handled by the dedicated Switch chip, while the CPU takes care of the Routing tasks. You can also find the appropriate SFP / SFP\+ Modules for your connection with us.
Strengths & Notes at a Glance
- Pro: Excellent price-performance ratio with 24x 1G and 2x 10G Ports.
- Pro: Completely silent operation due to passive cooling concept without fans.
- Pro: Maximum flexibility through Dual-Boot option (simple SwOS or powerful RouterOS).
- Pro: Very energy-efficient with only approx. 12W at idle and a maximum of 24W under load.
- Note: CPU performance for demanding Layer-3 tasks (Routing, VPN) is limited. Primarily designed as an Ethernet Switch.
- Note: The external Power Supply can be somewhat impractical for cable management during rack mounting.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | CRS326-24G-2S+RM |
| EAN: | 4251028602738 |
| Product Code: | CRS326-24G-2S+RM |
| Primary Function: | Cloud Router Switch (Layer-2 Ethernet Switch with Layer-3 Capabilities) |
| Architecture: | ARM 32bit |
| CPU: | Marvell Prestera 98DX3236 |
| CPU Core Count: | 2 |
| CPU Clock Frequency: | 800 MHz |
| Switch-Chip Model: | Marvell Prestera 98DX3236 |
| RAM: | 512 MB |
| Storage Size: | 16 MB |
| Storage Type: | FLASH |
| Non-Blocking Throughput: | 44 Gbps |
| Switching Capacity: | 88 Gbps |
| Forwarding Rate: | 65.5 Mpps |
| Gigabit Ethernet Ports: | 24 x 10/100/1000 Mbit/s |
| SFP+ Ports: | 2 x 10G SFP+ (backward compatible with 1.25G SFP) |
| Serial Console Port: | 1 x RJ45 |
| Number of DC Inputs: | 2 (DC Jack, PoE-IN) |
| Voltage Range (DC Jack): | 10 - 30 V |
| PoE-In: | Yes, Passive PoE (10 - 30 V) |
| PoE-Out: | No |
| Maximum Power Consumption: | 24 W |
| Operating System: | Dual Boot: RouterOS / SwOS |
| RouterOS License Level: | 5 |
| Cooling: | Passive, fanless |
| Tested Ambient Temperature: | -40°C to 60°C |
| Form Factor: | 1U Rackmount |
| Dimensions: | 443 x 144 x 44 mm |
| MTBF: | approx. 200,000 hours at 25°C |
| Certificates: | CE, EAC, ROHS |
| IP Protection Class: | IP20 |
Scope of Delivery
| 1 x MikroTik CRS326-24G-2S+RM |
| 1 x 24V 1.2A Power Supply |
| 1 x Rackmount Ears (Set) |
Frequently Asked Questions (FAQ)
Can the CRS326-24G-2S+RM completely replace my router?
Only to a limited extent. For internet connections up to approx. 500-700 Mbit/s and simple Networks without complex firewall rules, the CPU performance may be sufficient. For faster Gigabit connections or intensive use of VPNs, a dedicated MikroTik Router is strongly recommended to avoid performance bottlenecks.
Which operating system should I use, SwOS or RouterOS?
If you only need pure Layer-2 Switching, SwOS is ideal and easy to operate via the web browser. However, if you require Routing functions, a detailed Firewall, or VPNs, RouterOS is the right choice. For maximum Switching performance, even in RouterOS, all ports should be configured in a single hardware-offloaded Bridge.
Is the switch suitable for a home network (home lab)?
Yes, it is an excellent choice for ambitious home Networks and Home-Labs. The combination of 24 Gigabit Ethernet Switch ports, two 10G SFP+ Modules uplinks, silent operation, and an affordable price makes it extremely popular in this segment.
Which SFP / SFP\+ Modules are compatible with the CRS326-24G-2S+RM?
The SFP+ ports are very flexible and support both 1.25G SFP Modules and 10G SFP+ Modules. As long as third-party modules comply with common MSA standards, they should also be compatible. MikroTik offers a wide range of its own SFP / SFP\+ Modules.
Does the CRS326-24G-2S+RM have PoE-Out to power other devices?
No, this model does not have a PoE-Out function. While it can be powered via PoE Injectors / Power Supplies (PoE-In), it cannot power other devices such as IP Cameras or WiFi Access Points itself. MikroTik offers other models for this, such as the CRS328-24P-4S+RM.
Is the configuration difficult for beginners?
Configuration via SwOS is relatively simple and is done via a graphical web interface, which is quite manageable for beginners. RouterOS, on the other hand, has a very steep learning curve and can be overwhelming for beginners without Network knowledge, but it offers an enormous depth of configuration options.
Homepage: http://www.mikrotik.com/
