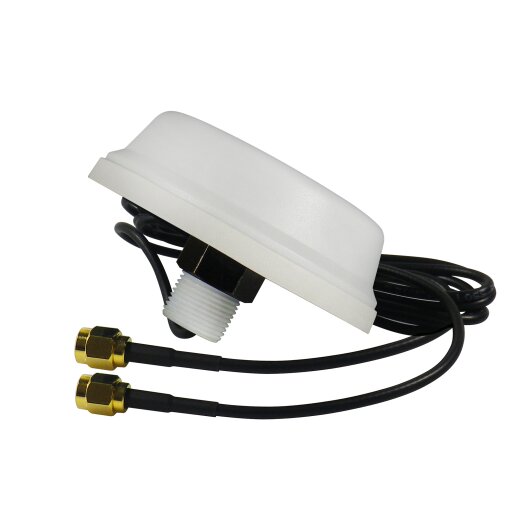

This compact 2x2 MIMO 4G Multiband Omni-directional Antenna is designed for all three 4G frequency bands (800 MHz, 1800 MHz, and 2600 MHz) and supports all common 4G standards within these frequency bands.
The 4G antenna is intended for direct ceiling mounting or fixed installation on tables or devices/machines. On the underside of the antenna, there is a 2.5cm long plastic thread with a lock nut. A rubber lip on the housing edge provides additional protection against moisture. The antenna's housing complies with the IP65 standard, allowing the 4G omni-directional antenna to be easily used outdoors. Due to the antenna's design, it is perfect for use in M2M and IoT scenarios.
The 4G antenna comes with two 150cm long antenna cables (RG-174), each equipped with an SMA connector, and can be directly connected to an 4G router or gateway.
Technical Specifications:
| Antenna Type: | Omni-directional Antenna |
| Gain: | 1dBi @ 700-960 MHz 4dBi @ 1700-2700 MHz |
| Impedance: | 50 Ohms |
| Frequency Range: | LTE800, LTE1800, LTE2600 2x2 MIMO |
| VSWR: | max. 1.8 |
| Polarization: | Vertical (Linear) |
| Signal Opening Angle: | 360° Horizontal 360° Vertical |
| Application Area: | Indoor and Outdoor Housing according to IP65 Standard |
| Connection: | 2 x 150cm RG-174 Cable with SMA Connector |
| Dimensions: | 4.5 x 8 x 4.5 cm |
| Weight: | Approximately 100g |
| Color: | White |
| Operating Environment: | -40° to +80° C |
Package Contents:
| 1 x Multiband 4G Antenna, 2x2 MIMO, 4dBi, 150cm, SMA, White |
