Description

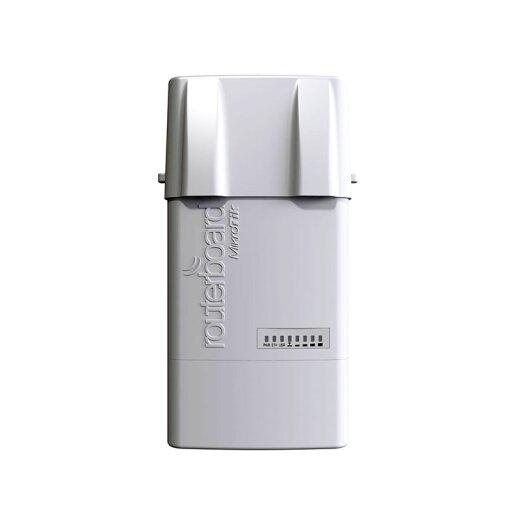

MikroTik BaseBox 2 (product code: RB912UAG-2HPnD-OUT) is a very versatile 2.4 GHz wireless device. It is based on RB912UAG-2HPnD RouterBoard and has a special designed outdoor enclosure.
The Wi-Fi module of the BaseBox 2 has a max TX power of 30dBm / 1000mW. Two external, weatherproof RP-SMA connectors allow the installation of two external WiFi antennas. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
Technical Data:
| Manufacturer / Model: | Mikrotik / BaseBox 2 |
| Processor: | Atheros, 600MHz |
| Memory: | 64 MB |
| Frequency: | 2.4 GHz |
| WiFi Standards: | IEEE 802.11b: 11Mbps IEEE 802.11g: 54Mbps IEEE 802.11n: 300Mbps |
| Security: | WEP 64/128/152-bit, WPA/WPA2, WPA-PSK/WPA2-PSK, TKIP/AES |
| TX Power: | max. 30dBm |
| Modulation Scheme: | OFDM: BPSK, QPSK, 16 QAM, 64QAM,DSSS: DBPSK, DQPSK, CCK |
| Ethernet Interface: | 1 x 10/100/1000 Ethernet (RJ45, Auto-MDI/X) |
| Antenna: | 2 x RP-SMA connector |
| Power Options: | 8-30V passive PoE Supports PoE output on ports 2-5. Max current 500mA per port |
| RouterOS License: | Level 4 |
| Appliance: | In- and Outdoor |
| Dimensions: | 24.6 x 13.5 x 5 cm |
| Operation Temperature: | -30°C to +60°C |
| Operation humidity: | 0% to 90% (non condensing) |
Scope of delivery:
| 1 x Mikrotik BaseBox 2 (RB912UAG-2HPnD-OUT) |
| 1 x PoE Injector |
| 1 x 24V, 0.38A Power Supply |
| 1 x Mounting Equipment |
