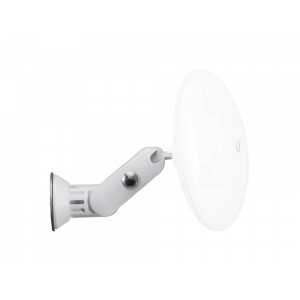

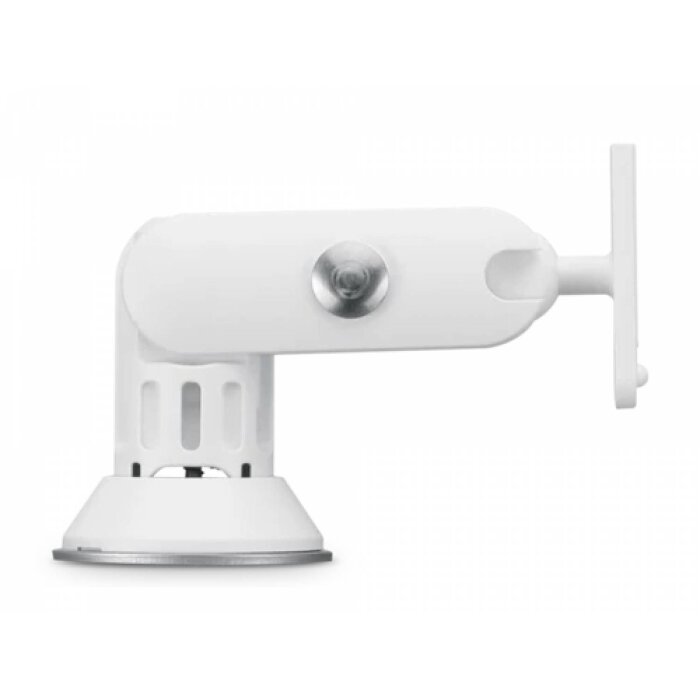

Tool-Free Wall Mounting for Your Ubiquiti Antennas
The name says it all: With the Quick-Mount, you attach your Ubiquiti Antennas in record time. The entire design is consistently geared towards tool-free installation. No searching for the right wrench, no awkward fumbling on the ladder. Simply assemble the components by hand, click in the Antenna, and attach it to the wall. This well-thought-out piece from the Mounting Systems category saves you valuable time and nerves with every installation.

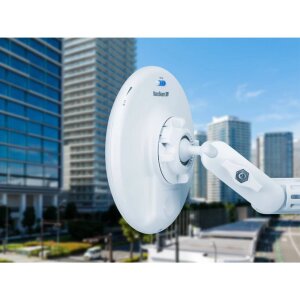

Maximum Flexibility: Perfectly Align Your NanoBeam
The heart of the Quick-Mount is the ingenious ball joint. It gives you the freedom to align the mounted Antenna extremely flexibly and precisely. Especially for point-to-point connections with airMAX ac Components, exact adjustment is crucial for a stable and high-performance connection. With this bracket, you'll find the perfect angle for maximum signal strength and thus optimize the performance of your entire Network.
One Bracket for (Almost) All: Comprehensive Compatibility
Ubiquiti designed the Quick-Mount as a universal Ubiquiti Accessories. Thanks to the included adapters, the bracket is compatible with an impressive range of devices. Whether you want to mount a GigaBeam™, LTU™ Lite, UniFi® Building-to-Building Bridge (UBB), a classic NanoStation® or various NanoBeam® models – the Quick-Mount fits. This makes it an indispensable standard tool for anyone who regularly works with Ubiquiti Accessories.
Built for Outdoor Use: Robust and Weatherproof Materials
An outdoor bracket must withstand a lot. The Quick-Mount is made from a high-quality blend of polycarbonate and metal. This material combination is not only robust but also extremely weather-resistant. UV radiation, rain, snow, and extreme temperatures cannot harm it. You can rely on your valuable Antenna remaining securely and stably attached for years to come.
Strengths & Notes at a Glance
- Pro: The consistently tool-free design significantly speeds up installation.
- Pro: The central ball joint allows for extremely fine-grained and flexible antenna alignment.
- Pro: Supports a wide range of the most common Ubiquiti CPE devices, making it universally applicable.
- Pro: The combination of polycarbonate and metal ensures high robustness and weather resistance.
- Note: The bracket is an optional accessory and is not included in the standard scope of delivery of the Antennas.
- Note: No dedicated cable routing is integrated into the design, which must be considered for wall penetrations.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | Quick-Mount |
| EAN: | 0810010070449 |
| Manufacturer SKU: | Quick-Mount |
| Product Type: | Mechanical Mounting Bracket |
| Dimensions: | 104 x 122 x 81 mm |
| Weight (Product): | 50.1 g |
| Materials: | Polycarbonate, Metal |
| Area of Use: | Outdoor (weatherproof) |
| Warranty: | 12 months manufacturer's warranty |
| Country of Origin: | China |
| Compatibility: | GigaBeam (GBE), LTU Lite, UniFi Building-to-Building Bridge (UBB), UDB-Pro, NanoStation NS-5AC, NanoStationloco loco5AC, NanoBeam NBE-M5-16, NBE-2AC-13, NBE-5AC-Gen2, NBE-M5-19 |
| Adapter Usage (Ball Mount Assembly): | loco5AC, NS-5AC, LTU-Lite |
| Adapter Usage (Universal Ball Mount): | NBE-2AC-13, NBE-M5-16, UBB, GBE |
| Adapter Usage (Universal Ball Mount + Washer): | NBE-5AC-Gen2, NBE-M5-19, UDB-Pro |
| Electronic Components: | None |
| Power Consumption: | No power consumption |
| RF Characteristics (dBi, TX/RX): | Not applicable |
Scope of Delivery
| 1 x Mount Arm |
| 1 x Universal Ball Mount |
| 1 x Bracket Mount |
| 1 x Rotation Collar |
| 1 x Stacking Washer |
| 1 x Ball Mount Washer (Additional Metal Washer) |
Frequently Asked Questions (FAQ)
Which devices are compatible with the Ubiquiti Quick-Mount?
The mount is compatible with a variety of Ubiquiti Networks devices, including the NanoBeam, NanoStation, NanoStation Loco, GigaBeam, LTU Lite series, and the UniFi Building-to-Building Bridge. This accessory is perfect for mounting various Ubiquiti Antennas.
Is a tool required for mounting the Quick-Mount?
No, a key feature of the Quick-Mount is its tool-free design, allowing for quick and easy manual installation of your Network components.
Does the mount allow for flexible antenna alignment?
Yes, the integrated ball joint offers maximum flexibility for precise alignment of your WiFi Antennas or 4G / 5G Antennas, ensuring the best possible signal connection.
What material is the Ubiquiti Quick-Mount made of?
The mount is made from a combination of durable polycarbonate and metal, ensuring longevity for outdoor use, especially for mounting various Ubiquiti Accessories and Antennas.
Is the Quick-Mount included with NanoStation or NanoBeam?
No, the Quick-Mount is an optional accessory and must be purchased separately. The mentioned Ubiquiti Networks devices are typically supplied with pole clamps only. Consider this for your Mounting Systems.
Can I safely use the Quick-Mount outdoors?
Yes, the mount is made from weather-resistant materials and designed for permanent outdoor use, capable of withstanding UV radiation and precipitation, making it ideal for outdoor 4G / 5G Antennas or WiFi Antennas.
