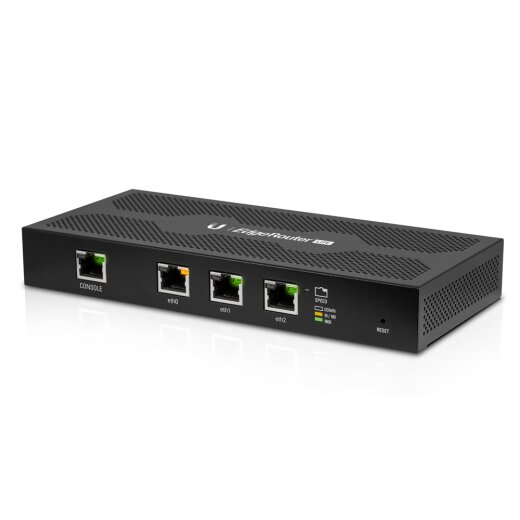

Ubiquiti EdgeRouter Lite / ERLITE-3 is part of the EdgeMAX platform. EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit. EdgeRouter is the world’s first economical router capable of routing 1 million packets per second.
Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
The EdgeRouter provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.
DHCP ServerSet up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.
Secure Your NetworkFirewall Policies Organize the rules you apply in the order you specify. Firewall Groups Apply the policies to groups filtered by IP address, network address, or port number.
NAT RulesThe EdgeRouter changes packet addressing based on your customized source and destination NAT rules.
Direct Traffic FlowInterfaces Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet your network segmentation requirements. Routing Configure static routes and dynamic routing protocols to effectively manage the routes used bythe EdgeRouter. With these capabilities and more, EdgeRouter provides the centralized control you need to optimize the performance and reliability of your network.
Monitoring ToolsConveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
User AccountsManage access to the EdgeRouter using unique administrator and operator accounts.
Technical Data:
| Manufacturer / Product: | Ubiquiti Networks / EdgeRouter Lite |
| LAN Interface: | 3 x 10/100/1000Mbps Gigabit LAN Port, Auto MDI-X, Auto-Negotiation |
| Management Interface: | 1 x RJ45 Serial Port |
| Processor: | Dual-Core 500 MHz, MIPS64 |
| Systm Memory: | 512 MB DDR2 RAM |
| Flash Memory: | 2GB Onboard |
| Layer 3 Performance: | 64 Bytes, 1.000.000 pps |
| Interface/Encapsulation: | Ethernet, 802.1q VLAN, PPPoE, GRE, IP in IP, Bridging, Bonding (802.3ad) |
| Addressing: | Static IPv4/IPv6 Addressing, DHCP/DHCPv6 |
| Routing: | Static Routes, OSPF/OSPFv3, RIP/RIPng, BGP (with IPv6 Support), IGMP Proxy |
| Security: | ACL-Based Firewall, Zone-Based Firewall, NAT |
| VPN: | IPSec Site-to-Site and Remote Access, OpenVPN Site-to-Site and Remote Access, PPTP Remote Access, L2TP Remote Access, PPTP Client |
| Services: | DHCP/DHCPv6 Server, DHCP/DHCPv6 Relay, Dynamic DNS, DNS Forwarding, VRRP, RADIUS Client, Web Caching |
| QoS: | FIFO, Stochastic Fairness Queueing, Random Early Detection, Token Bucket Filter, Deficit Round Robin, Hierarchical Token Bucket, Ingress Policing |
| Management: | Web UI, CLI (Console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT Discovery Protocol, Logging |
| Dimensions: | 19.7 x 9.1 x 2.8cm |
| Weight: | 0.289 kg |
| Operating Temperature: | -10°C bis +45°C |
| Humidity: | bis 90% kondensierend |
Scope of delivery:
| 1 x Ubiquiti EdgeRouter Lite / ERLITE-3 |
| 1 x 12V/1A Power Supply |
